Tohatsu MFS 30 — инструкция по настройке тросика дросселя для управления [69/319]

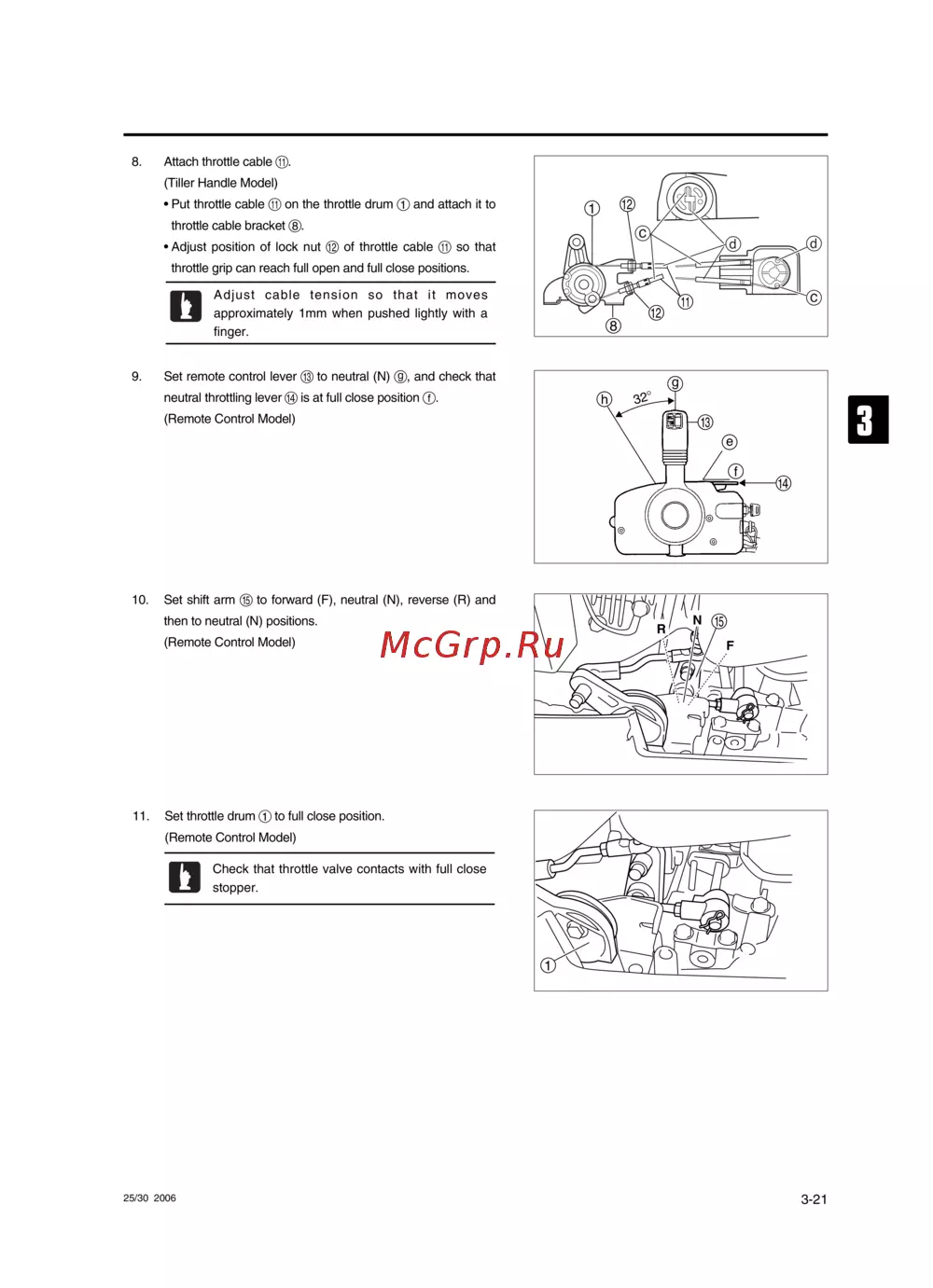

![Tohatsu MFS 30 Сервис Мануал онлайн [69/319] 202310](/views2/1240939/page69/bg45.png)
3-21
3
25/30 2006
8. Attach throttle cable q.
(Tiller Handle Model)
• Put throttle cable q on the throttle drum 1 and attach it to
throttle cable bracket 8.
• Adjust position of lock nut w of throttle cable q so that
throttle grip can reach full open and full close positions.
d
d
c
c
w
1
w
8
q
Adjust cable tension so that it moves
approximately 1mm when pushed lightly with a
finger.
R
N
F
t
9. Set remote control lever e to neutral (N) g, and check that
neutral throttling lever r is at full close position f.
(Remote Control Model)
11. Set throttle drum 1 to full close position.
(Remote Control Model)
1
h
g
e
r
f
e
32°
Check that throttle valve contacts with full close
stopper.
10. Set shift arm t to forward (F), neutral (N), reverse (R) and
then to neutral (N) positions.
(Remote Control Model)
MFS25_30_ch03.qxd 06.3.9 4:33 PM ページ 21
