3-34
Maintenance
25/30 2006
4. Apply thin coat of grease to starter motor pinion.
5. Apply grease to terminals of starter motor, starter solenoid
and PTT solenoid.
6. Apply grease to propeller shaft spline.
GREASE
OBMOBM
OBM
b
GREASE
OBMOBM
OBM
INS
INS
GREASE
G
REASE
OBMOBM
OBM

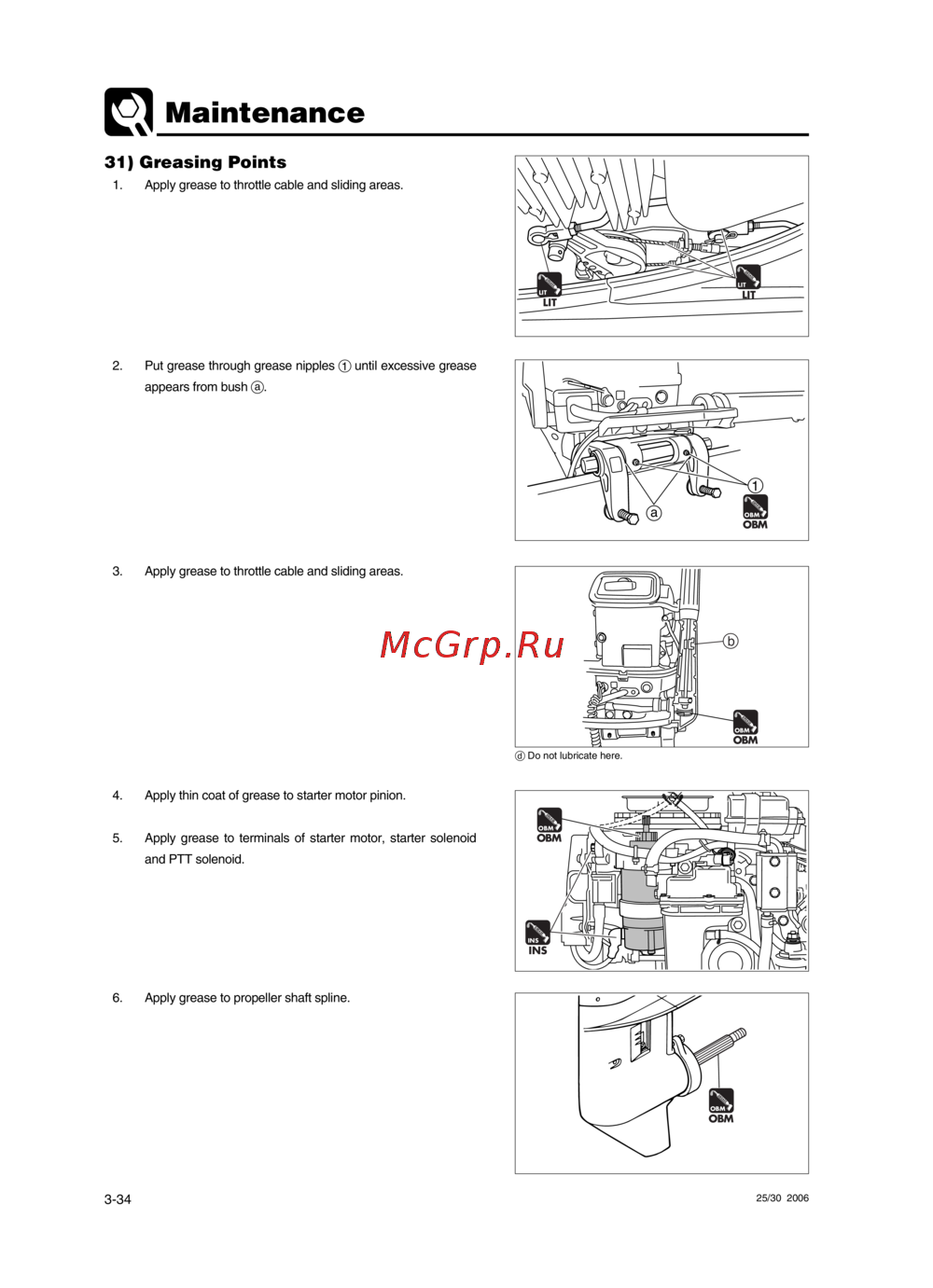

31) Greasing Points
1. Apply grease to throttle cable and sliding areas.
LIT
G
REASE
LIT
LIT
GREASE
LIT
a
1
GREASE
OBMOBM
OBM
2. Put grease through grease nipples 1 until excessive grease
appears from bush a.
3. Apply grease to throttle cable and sliding areas.
d Do not lubricate here.
