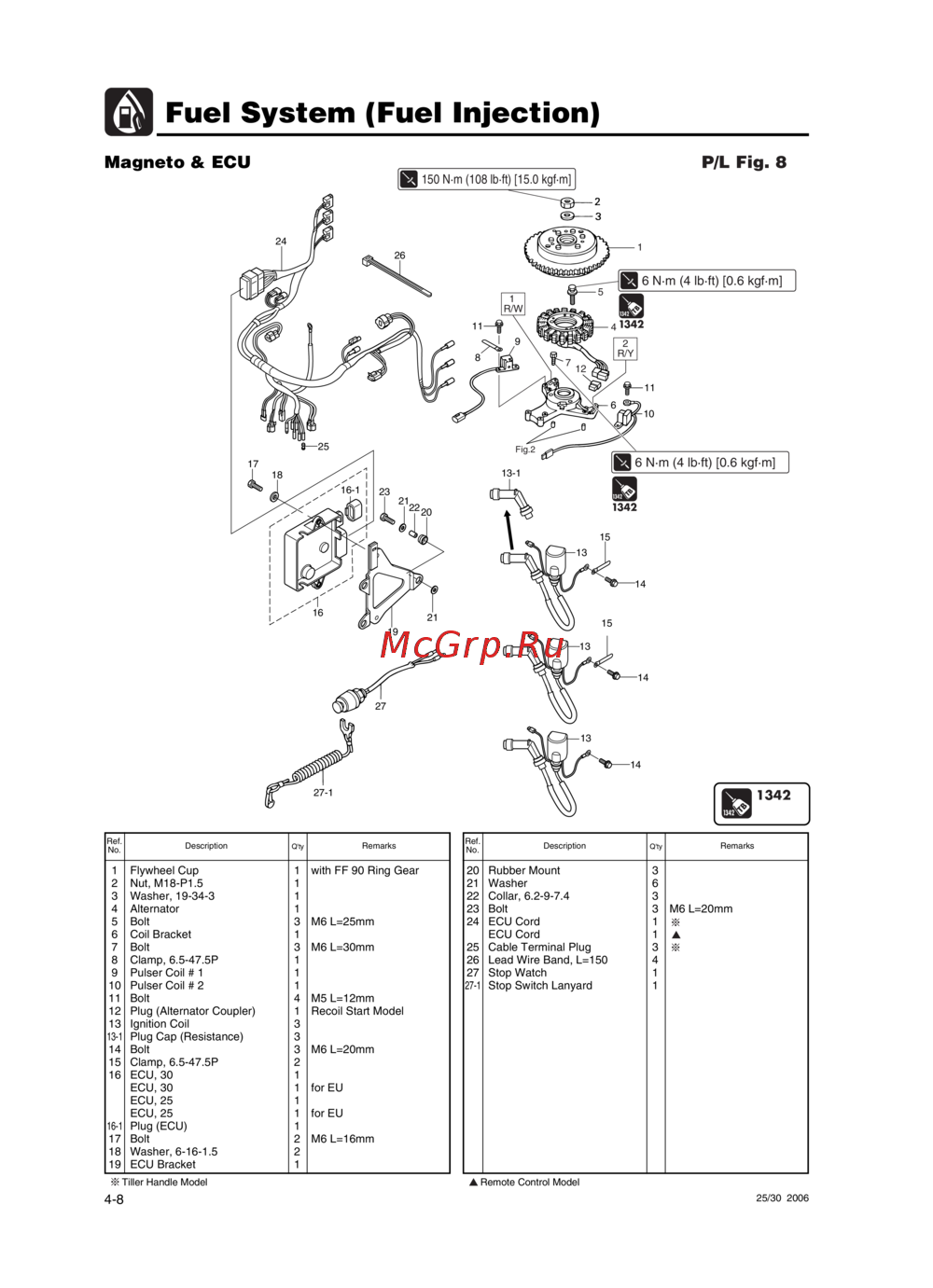

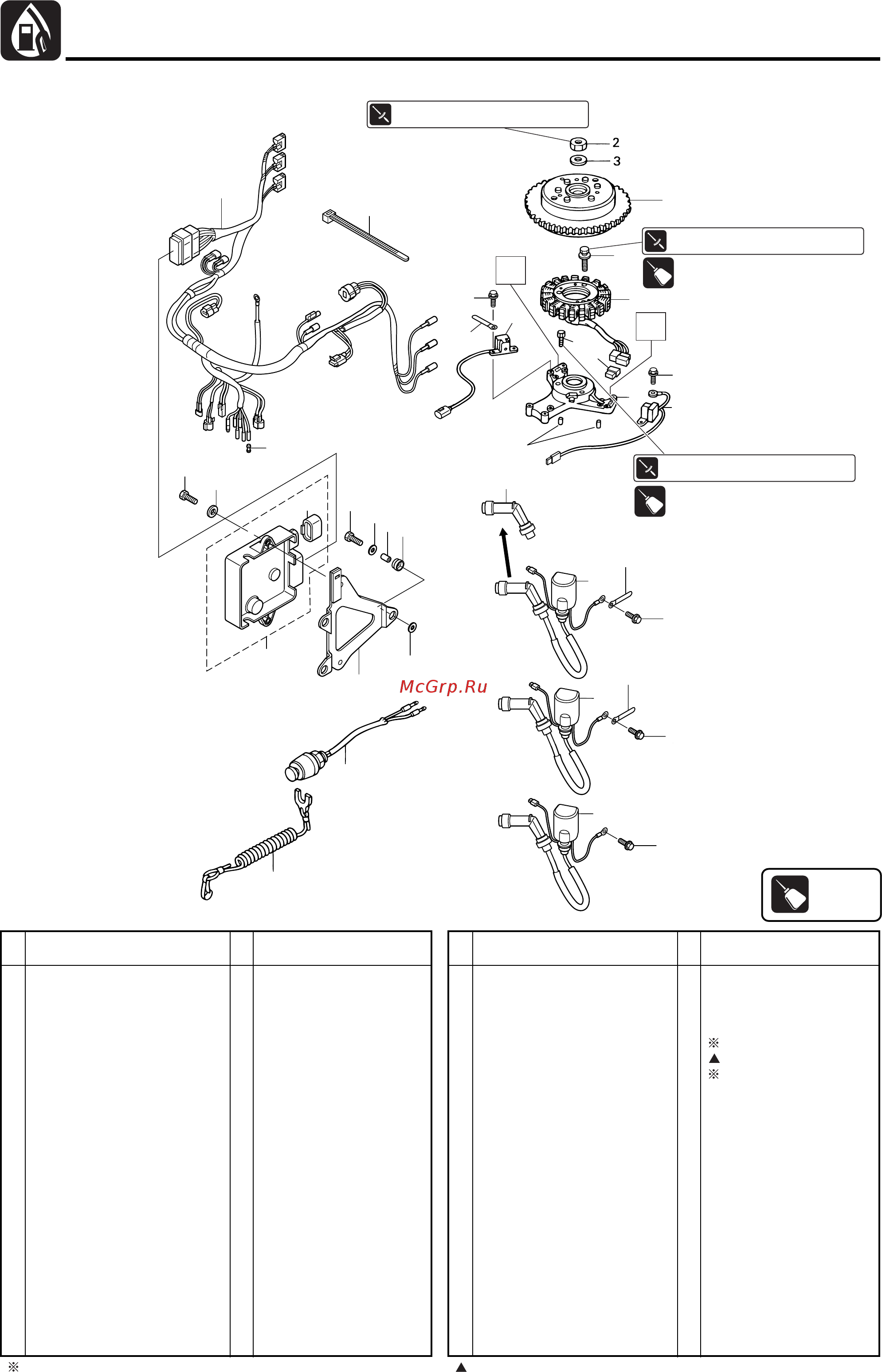

Fuel System (Fuel Injection)
4-8
25/30 2006
26
24
13-1
15
14
15
14
14
13
13
21
22
20
21
19
16
18
17
13
10
11
11
9
25
12
23
16-1
1
5
Fig.2
7
2
R/Y
1
R/W
6
4
27
27-1
8
6 N·m (4 lb·ft) [0.6 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
150 N·m (108 lb·ft) [15.0 kgf·m]
TB
1342
1342
TB
1342
1342
1 Flywheel Cup 1 with FF 90 Ring Gear
2 Nut, M18-P1.5 1
3 Washer, 19-34-3 1
4 Alternator 1
5 Bolt 3 M6 L=25mm
6 Coil Bracket 1
7 Bolt 3 M6 L=30mm
8Clamp, 6.5-47.5P 1
9 Pulser Coil # 1 1
10 Pulser Coil # 2 1
11 Bolt 4 M5 L=12mm
12 Plug (Alternator Coupler) 1 Recoil Start Model
13 Ignition Coil 3
13-1
Plug Cap (Resistance) 3
14 Bolt 3 M6 L=20mm
15 Clamp, 6.5-47.5P 2
16 ECU, 30 1
ECU, 30 1 for EU
ECU, 25 1
ECU, 25 1 for EU
16-1
Plug (ECU) 1
17 Bolt 2 M6 L=16mm
18 Washer, 6-16-1.5 2
19 ECU Bracket 1
Ref.
No.
Description Remarks
Q'ty
20 Rubber Mount 3
21 Washer 6
22 Collar, 6.2-9-7.4 3
23 Bolt 3 M6 L=20mm
24 ECU Cord 1
ECU Cord 1
25 Cable Terminal Plug 3
26 Lead Wire Band, L=150 4
27 Stop Watch 1
27-1
Stop Switch Lanyard 1
Ref.
No.
Description Remarks
Q'ty
Magneto & ECU
Tiller Handle Model Remote Control Model
TB
13421342
1342
P/L Fig. 8
