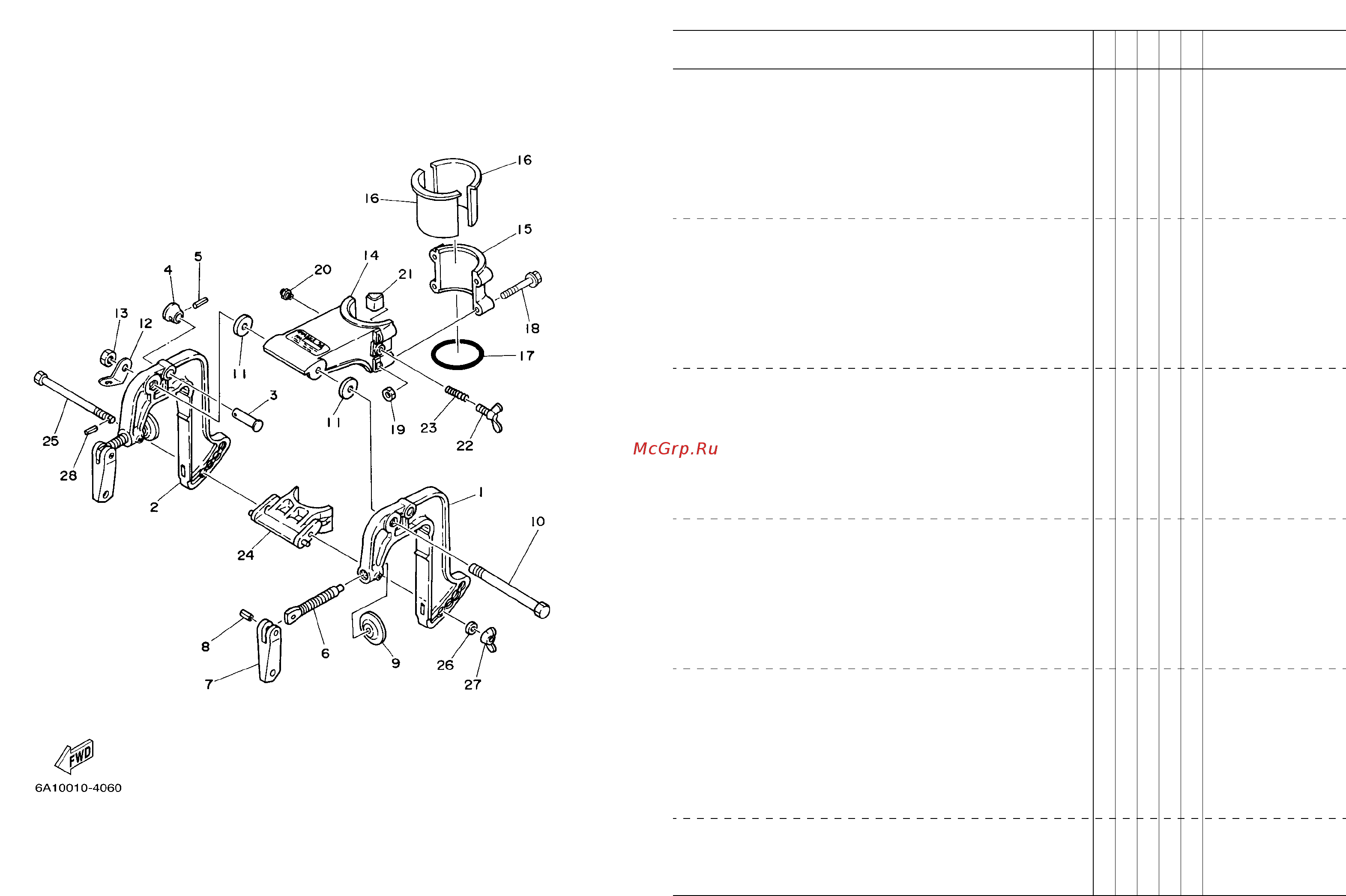

FIG. 6 BRACKET SOPORTE
REF.
NO.
PART NO.
CODIGO Nº
DESCRIPTION
DESCRIPCION
6F89
REMARKS
OBSERVACIONES
1
6A1–43111–03–4D
BRACKET, CLAMP 1
SOPORTE DE LA ABRAZADERA 1
1
2
6A1–43112–00–4D
BRACKET, CLAMP 2
SOPORTE DE LA ABRAZADERA 2
1
3
6A1–43191–00
SHAFT, STOPPER
EJE DE TOPE
1
4
6A1–43192–00
KNOB, STOPPER
PERILLA DE TOPE
1
5
91690–30014
PIN, SPRING
PASADOR DE RESORTE
1
6
6E0–43116–01
SCREW, TRANSOM CLAMP
TORNILLO DE ABRAZADERA
2
7
6E0–43118–01
HANDLE, TRANSOM CLAMP
MANIJA DE LA ABRAZADERA DEL ES
2
8
90243–04M01
PIN
PASADOR
2
9
620–43114–00
PAD, TRANSOM CLAMP
ARANDELA DE ABRAZADERA
2
10
90101–08217
BOLT
TORNILLO
1
11
90202–08022
WASHER, PLATE
ARANDELA DE PLANA
2
12
6A1–43113–01
PLATE, CLAMP BRACKET
PLACA ABRAZADERA SOPORTE
1
13
95380–08600
NUT
TUERCA
1
14
6A1–43311–02–4D
BRACKET, SWIVEL 1
SOPORTE GIRATORIO 1
1
15
6A1–43312–00–4D
BRACKET, SWIVEL 2
SOPORTE GIRATORIO 2
1
16
646–42537–01
BUSHING, PIVOT SHAFT
BUJE DEL PIVOTE DE LA FLECHA
2
17
93210–46044
O-RING
ANILLO O
1
18
90119–06M98
BOLT, WITH WASHER
TORNILLO CON ARANDELA
4
19
95380–06600
NUT, HEXAGON
TUERCA
4
20
93700–06M03
NIPPLE, GREASE
BOQUILLA DE ENGRASAR
1
21
646–42528–00
PLATE, FRICTION
PIEZA DE FRICCION
1
22
90122–06004
BOLT, WING
PERNO MARIPOSA
1
23
90501–12272
SPRING, COMPRESSION
RESORTE DE COMPRESION
1
24
6A1–43351–00
RECEIVER, THRUST
RECIBIDOR DE EMPUJE
1
25
6A1–43371–00
BOLT, RECEIVER
TORNILLO RECEPTOR
1
26
90201–06040
WASHER, PLATE
ARANDELA PLANA
1
27
90175–06008
NUT, WING
TUERCA MARIPOSA
1
