3-3
Confidential

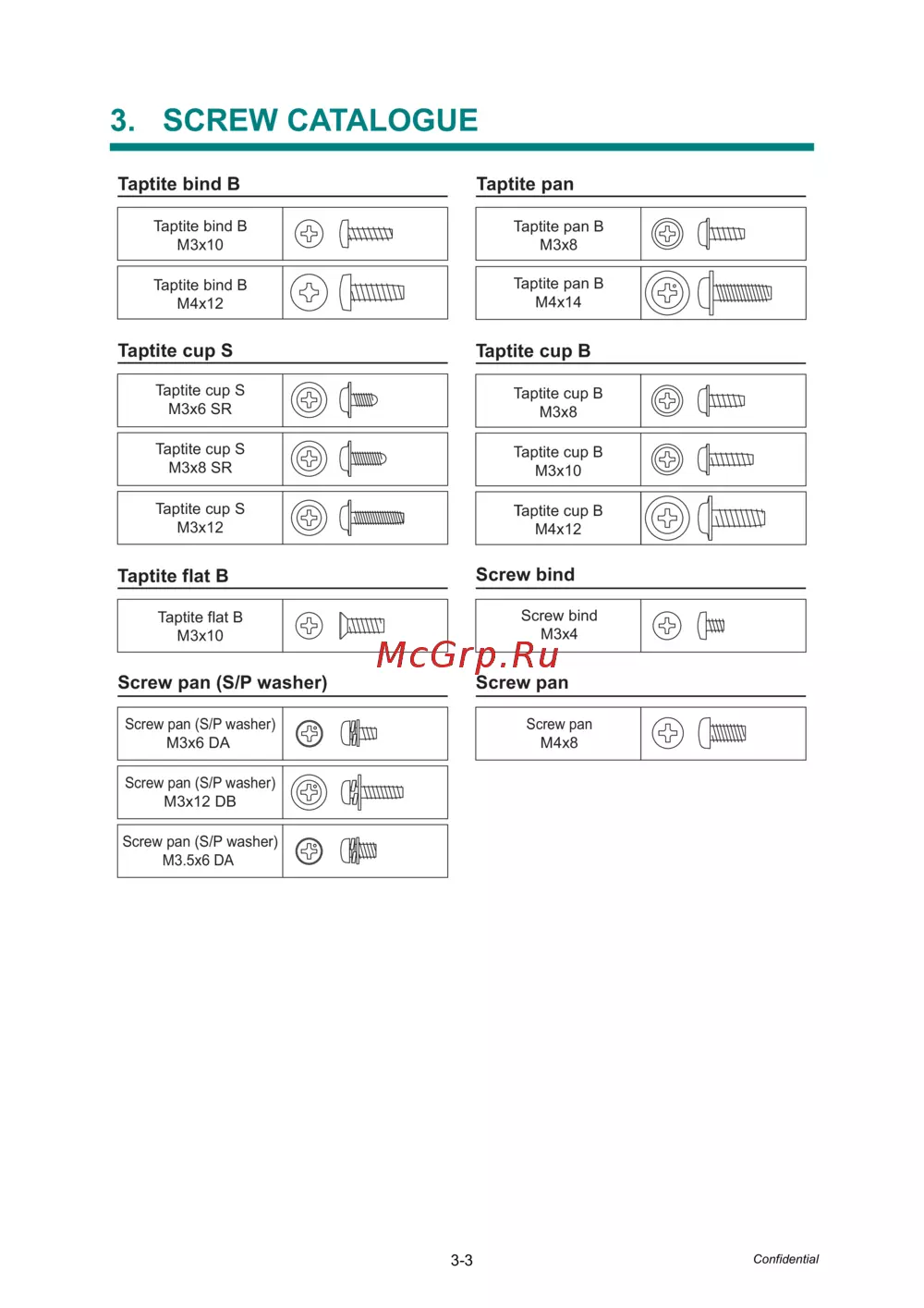

3. SCREW CATALOGUE
Taptite cup S
Taptite bind B
Taptite bind B
M4x12
Taptite bind B
M3x10
Taptite flat B
Taptite flat B
M3x10
Taptite pan
Taptite pan B
M4x14
Screw pan (S/P washer)
Screw bind
Screw pan (S/P washer)
M3x12 DB
Taptite cup S
M3x8 SR
Taptite cup B
Taptite pan B
M3x8
Screw bind
M3x4
T
Taptite cup S
M3x6 SR
Taptite cup S
M3x12
Screw pan (S/P washer)
M3.5x6 DA
Screw pan (S/P washer)
M3x6 DA
Taptite cup B
M3x10
Taptite cup B
M4x12
Taptite cup B
M3x8
Screw pan
Screw pan
M4x8
