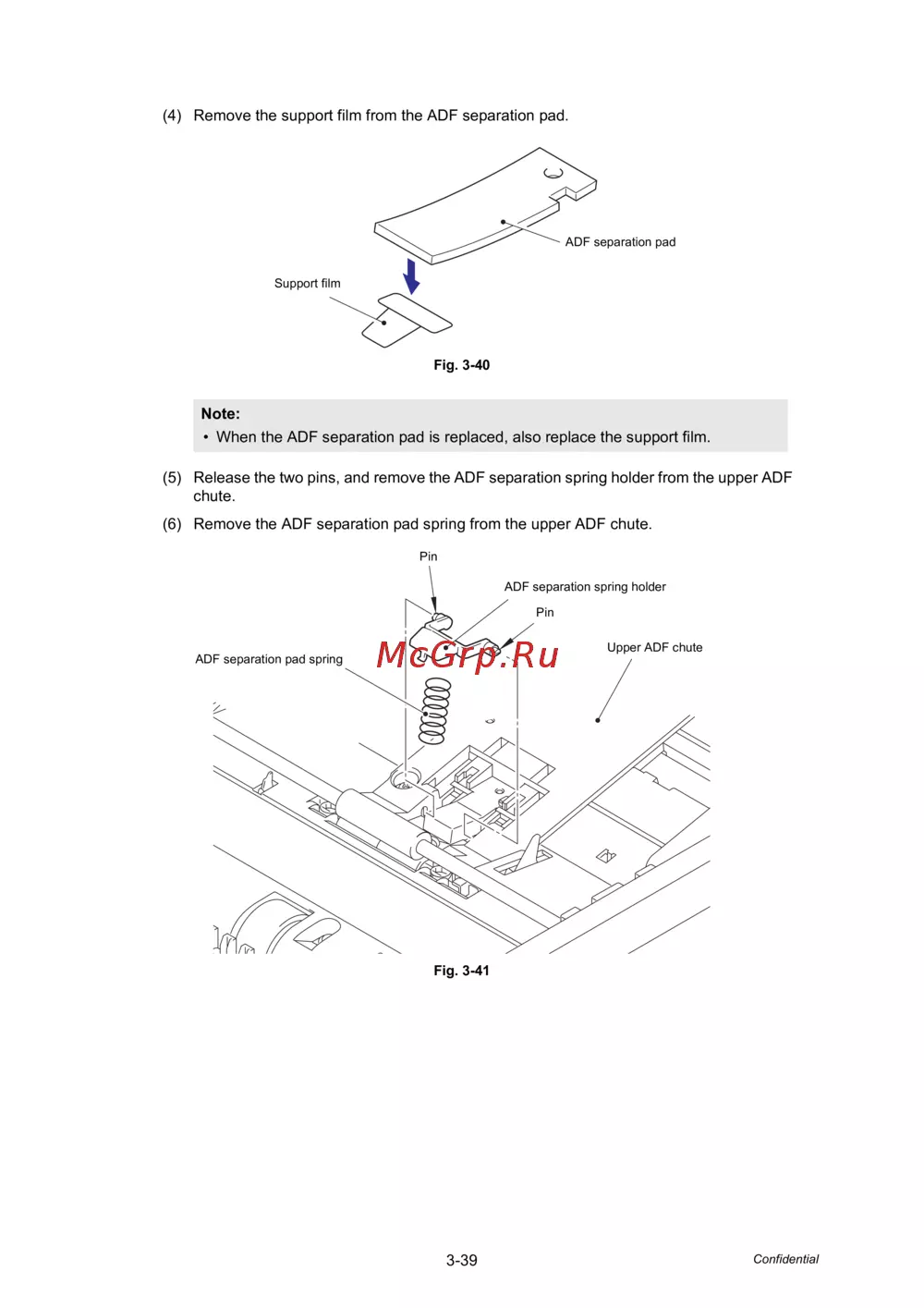

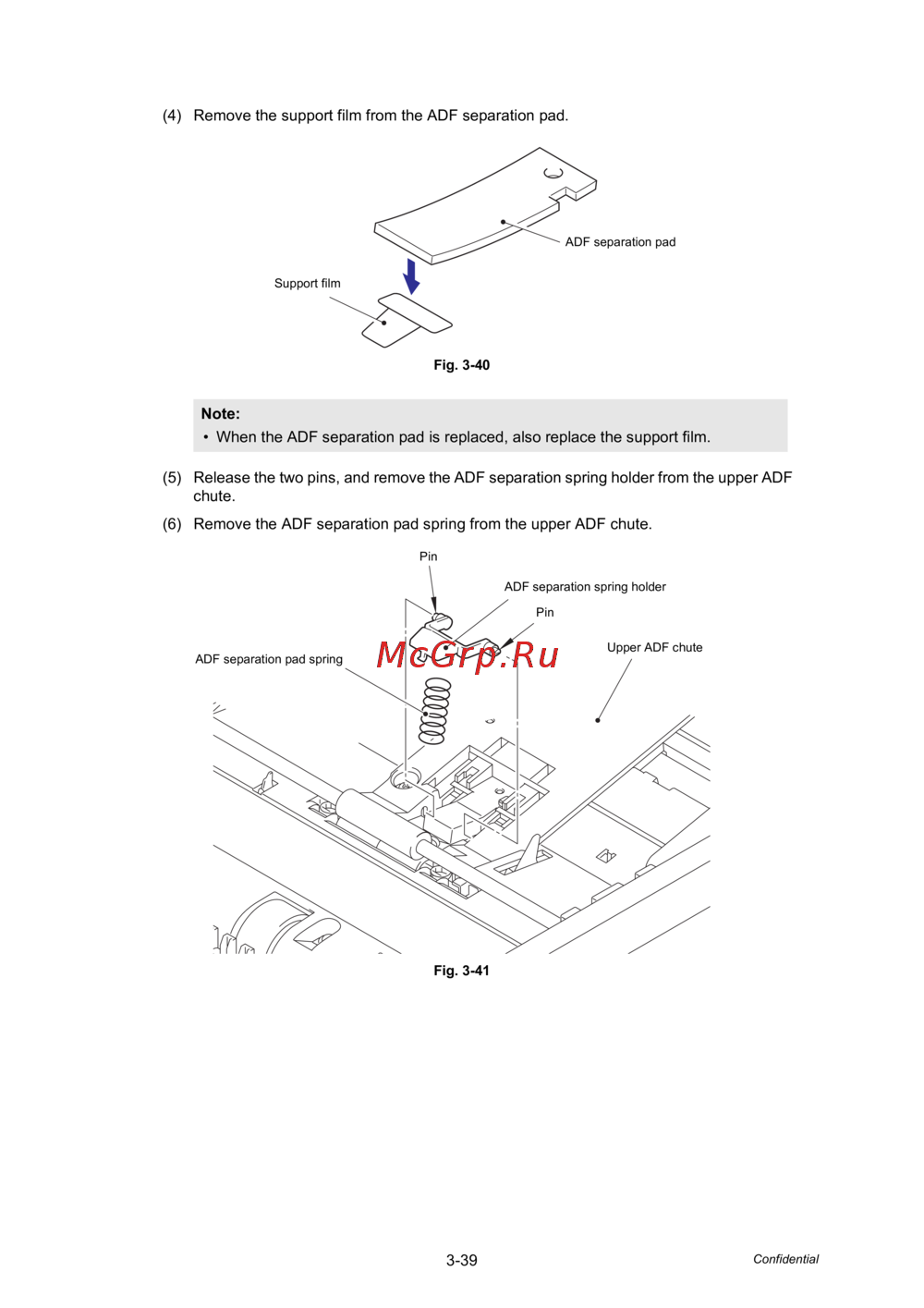

3-39
Confidential
(4) Remove the support film from the ADF separation pad.

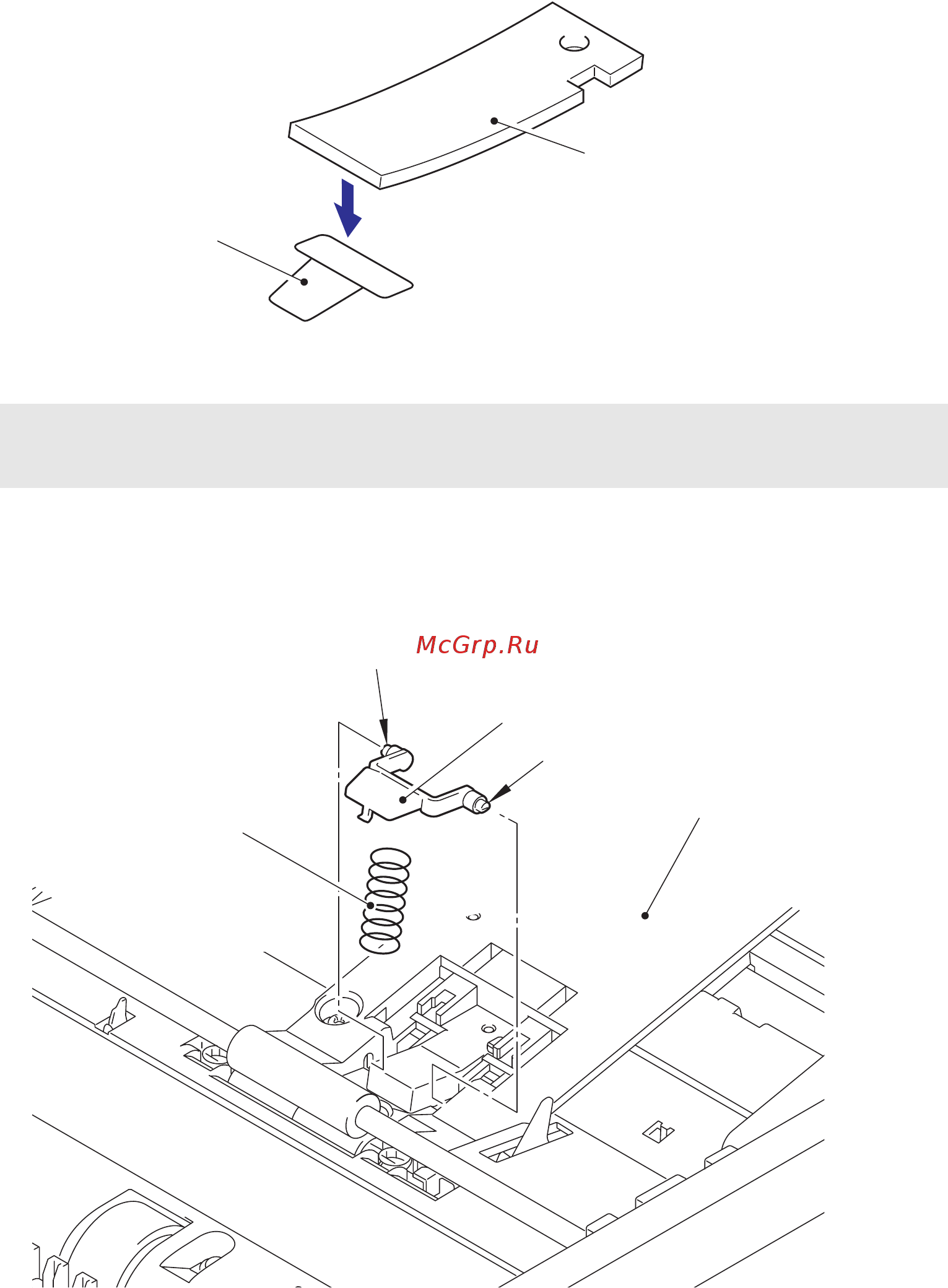

Fig. 3-40
(5) Release the two pins, and remove the ADF separation spring holder from the upper ADF
chute.
(6) Remove the ADF separation pad spring from the upper ADF chute.
Fig. 3-41
Note:
• When the ADF separation pad is replaced, also replace the support film.
Support film
ADF separation pad
ADF separation pad spring
ADF separation spring holder
Upper ADF chute
Pin
Pin
