3-61
Confidential

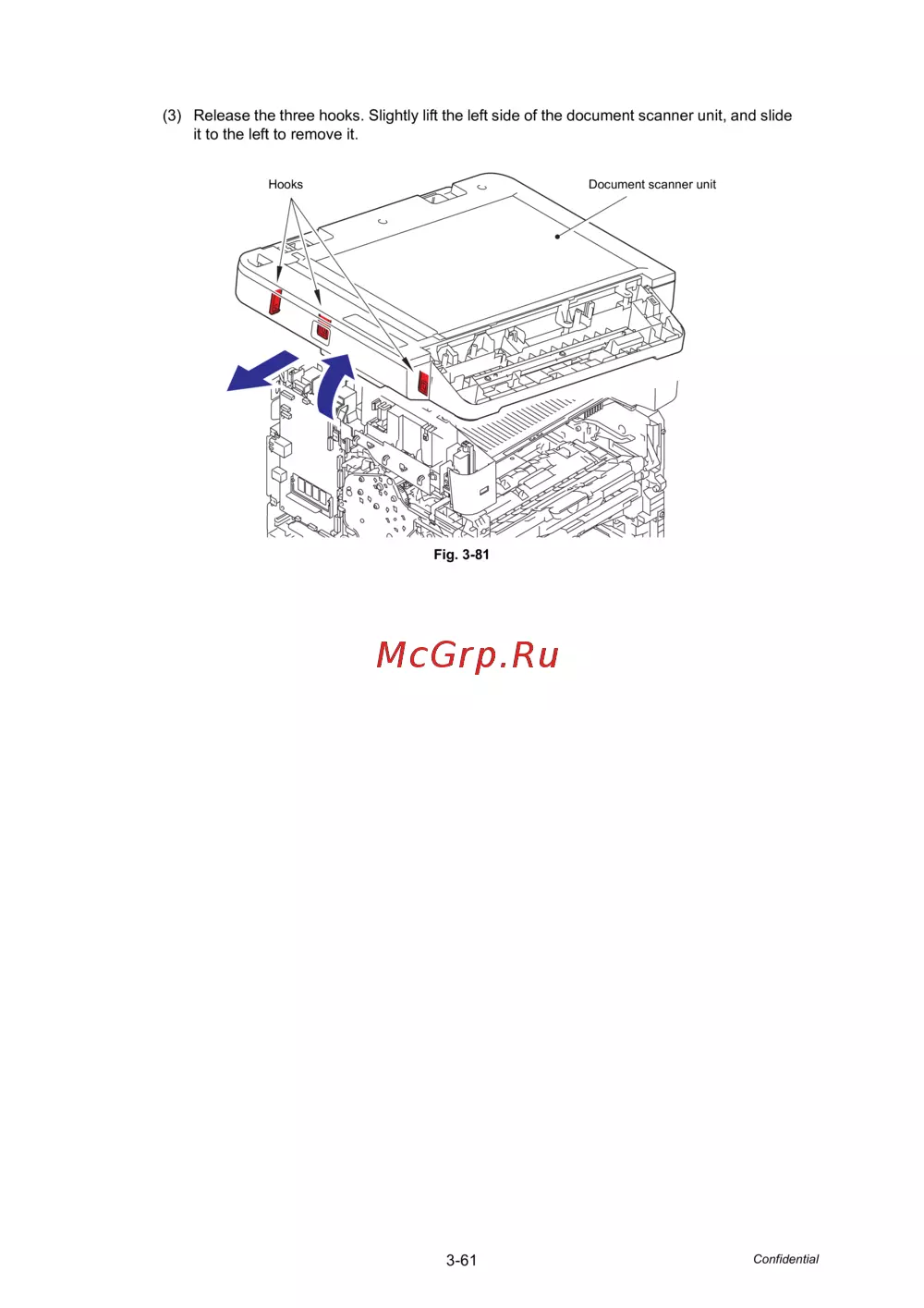

(3) Release the three hooks. Slightly lift the left side of the document scanner unit, and slide
it to the left to remove it.
Fig. 3-81
Document scanner unitHooks
