3-129
Confidential
10.9 T2 back cover
(1) Remove the two taptite bind B M4x12 screws, and remove the T2 back cover from the
LT unit.

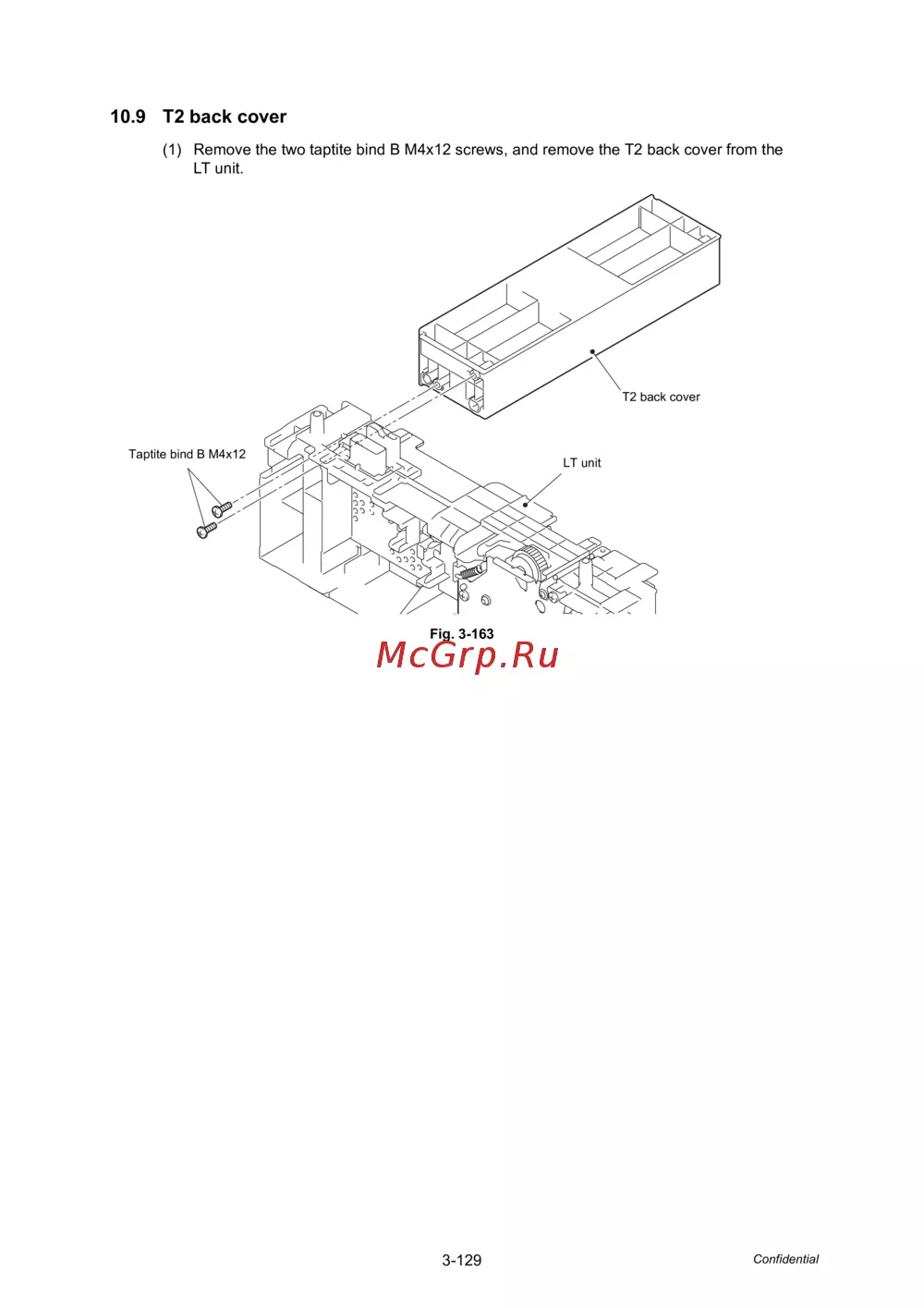

Fig. 3-163
T2 back cover
LT unit
Taptite bind B M4x12
