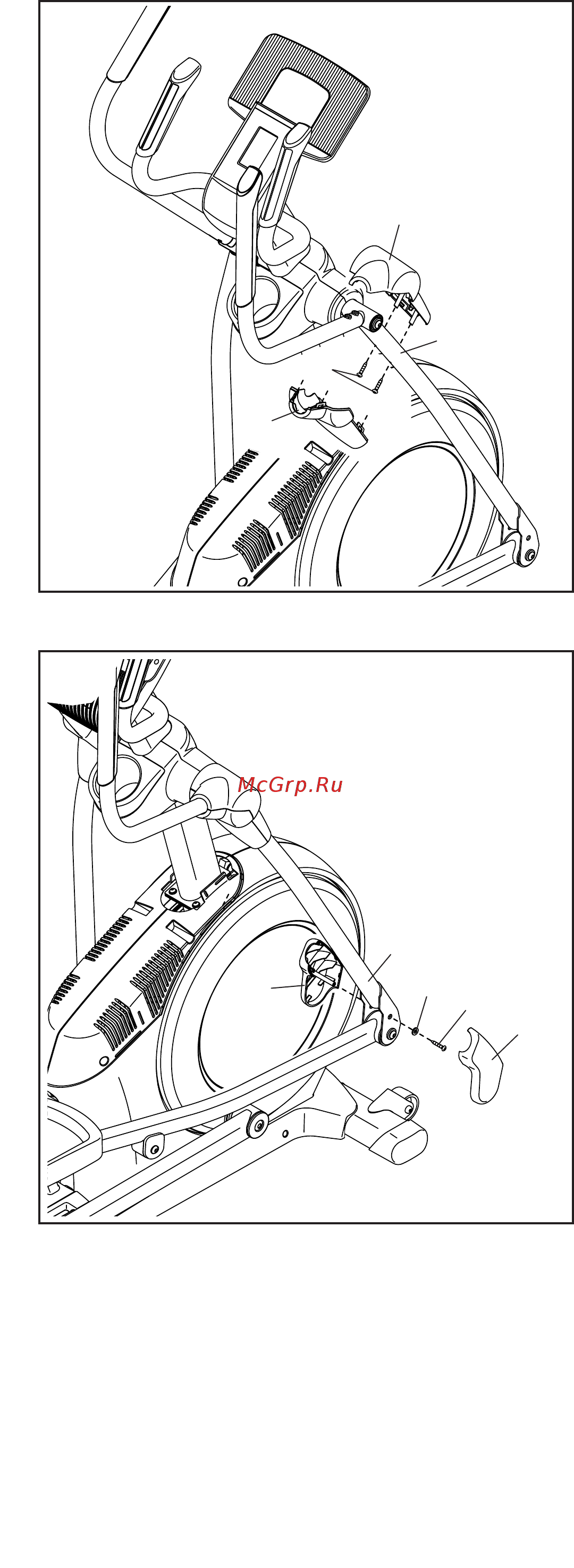

16. Identify the Right Leg Inner Cover (83) and orient

it as shown.

Attach the Right Leg Inner Cover (83) to the

Right Upper Body Leg (60) with an M4 x 16mm

Screw (101) and an M5 Washer (32).

Next, identify the Right Leg Outer Cover (69)

and orient it as shown.

Attach the Right Leg Outer Cover (69) around

the Right Upper Body Leg (60) by pressing the

hooks on the Right Leg Inner Cover (83) onto

the tabs on the Right Upper Leg Outer Cover.

Repeat this step on the other side of the

elliptical.

101

15. Identify the Right Arm Front Cover (65) and ori-

ent it as shown.

Attach the Right Arm Front Cover (65) to the

Right Upper Body Leg (60) with two M4 x 16mm

Screws (101).

Next, identify the Right Arm Rear Cover (66) and

orient it as shown.

Attach the Right Arm Rear Cover (66) around

the Right Upper Body Leg (60) by pressing the

hooks on the Right Arm Rear Cover onto the

tabs on the Right Arm Front Cover (65).

Repeat this step on the other side of the

elliptical.

101
