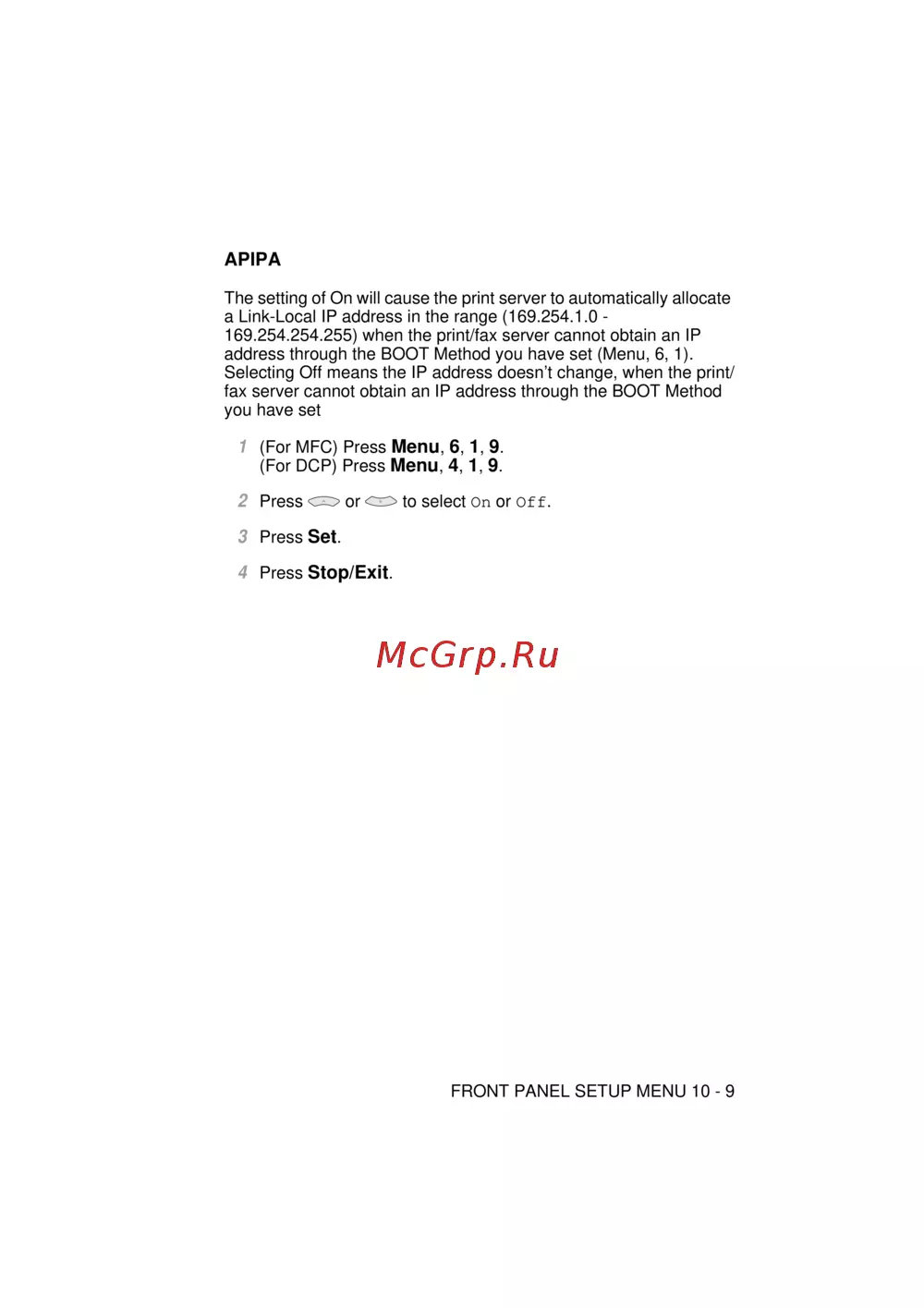

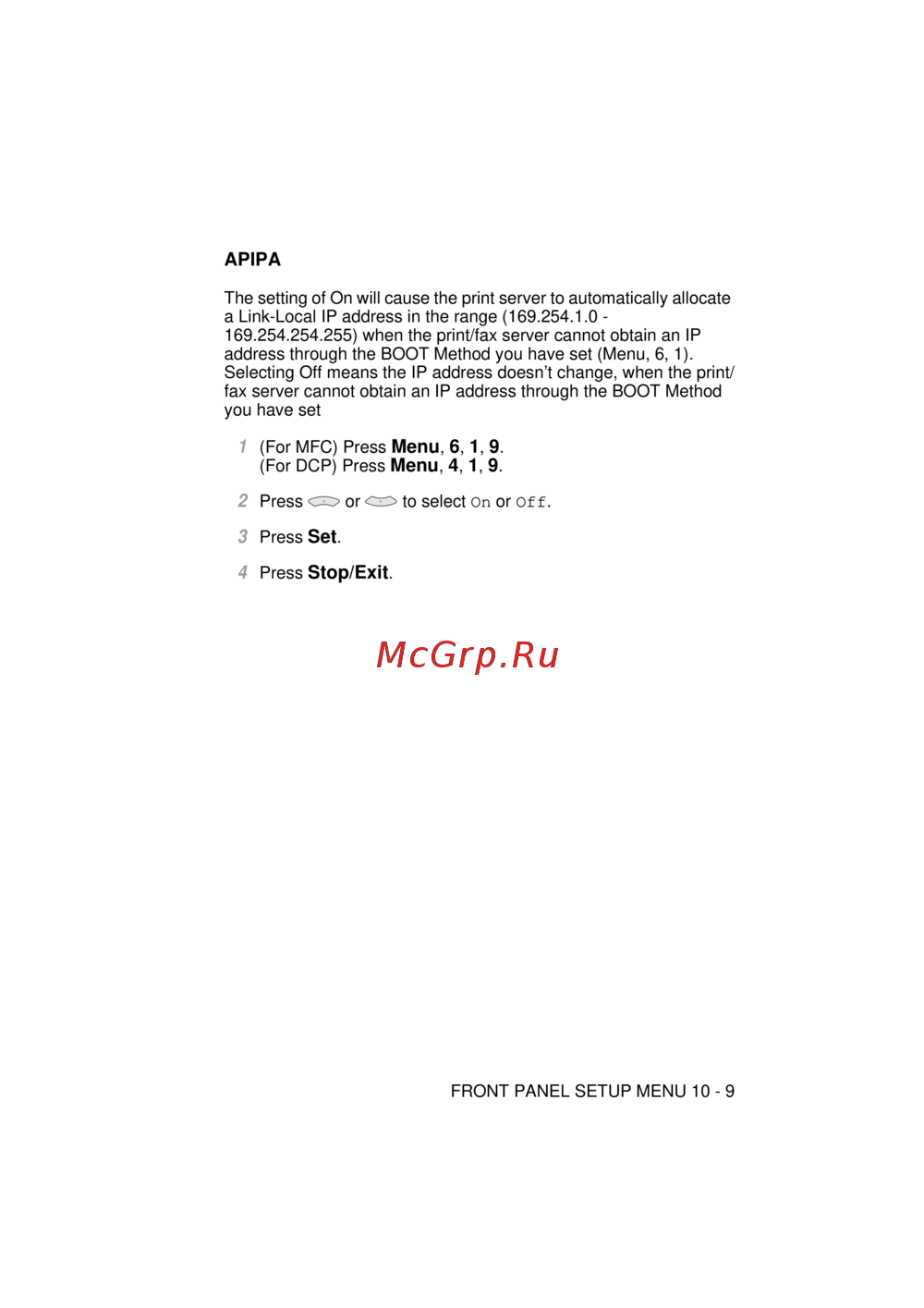

FRONT PANEL SETUP MENU 10 - 9

NC9100h_FM6.0

APIPA

The setting of On will cause the print server to automatically allocate

a Link-Local IP address in the range (169.254.1.0 -

169.254.254.255) when the print/fax server cannot obtain an IP

address through the BOOT Method you have set (Menu, 6, 1).

Selecting Off means the IP address doesn’t change, when the print/

fax server cannot obtain an IP address through the BOOT Method

you have set

(For MFC) Press Menu, 6, 1, 9.

(For DCP) Press

Menu, 4, 1, 9.

Press or to select On or Off.

Press Set.

Press Stop/Exit.
