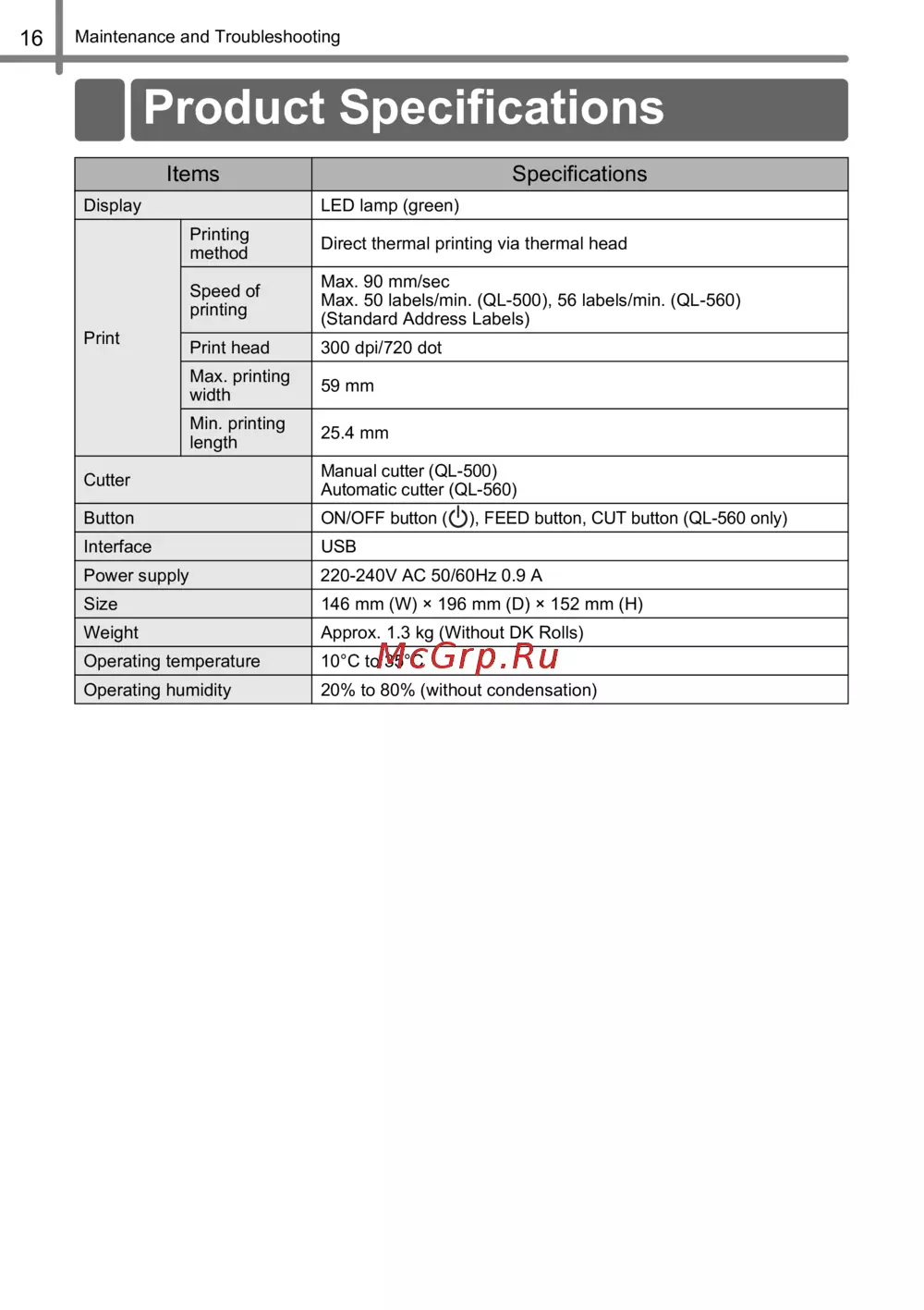

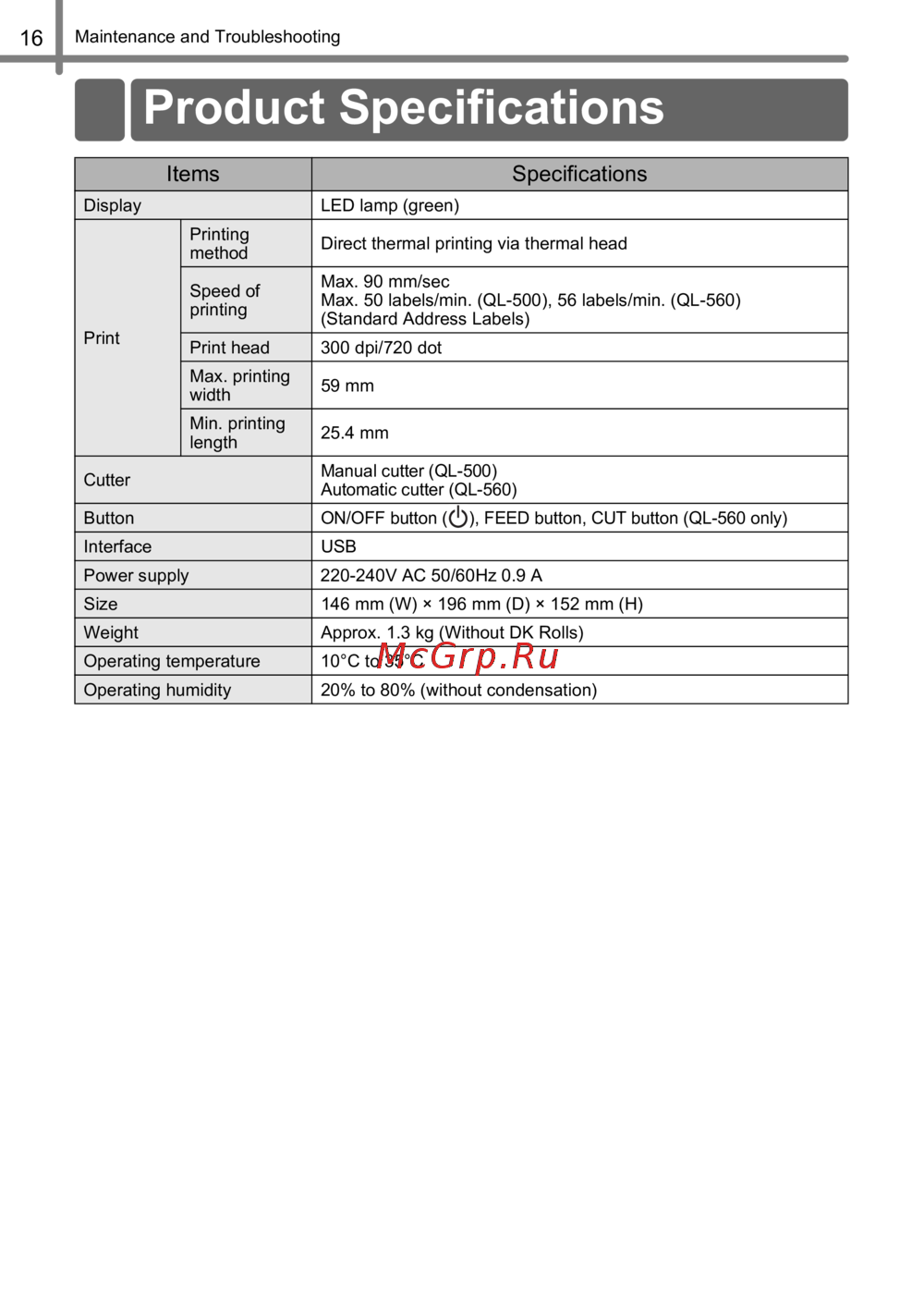

Maintenance and Troubleshooting
16
Items Specifications
Display LED lamp (green)
Print
Printing
method
Direct thermal printing via thermal head
Speed of
printing
Max. 90 mm/sec
Max. 50 labels/min. (QL-500), 56 labels/min. (QL-560)
(Standard Address Labels)
Print head 300 dpi/720 dot
Max. printing
width
59 mm
Min. printing
length
25.4 mm
Cutter
Manual cutter (QL-500)
Automatic cutter (QL-560)
Button
ON/OFF button ( ), FEED button, CUT button (QL-560 only)
Interface USB
Power supply 220-240V AC 50/60Hz 0.9 A
Size 146 mm (W) × 196 mm (D) × 152 mm (H)
Weight Approx. 1.3 kg (Without DK Rolls)
Operating temperature 10°C to 35°C
Operating humidity 20% to 80% (without condensation)
Product Specifications
