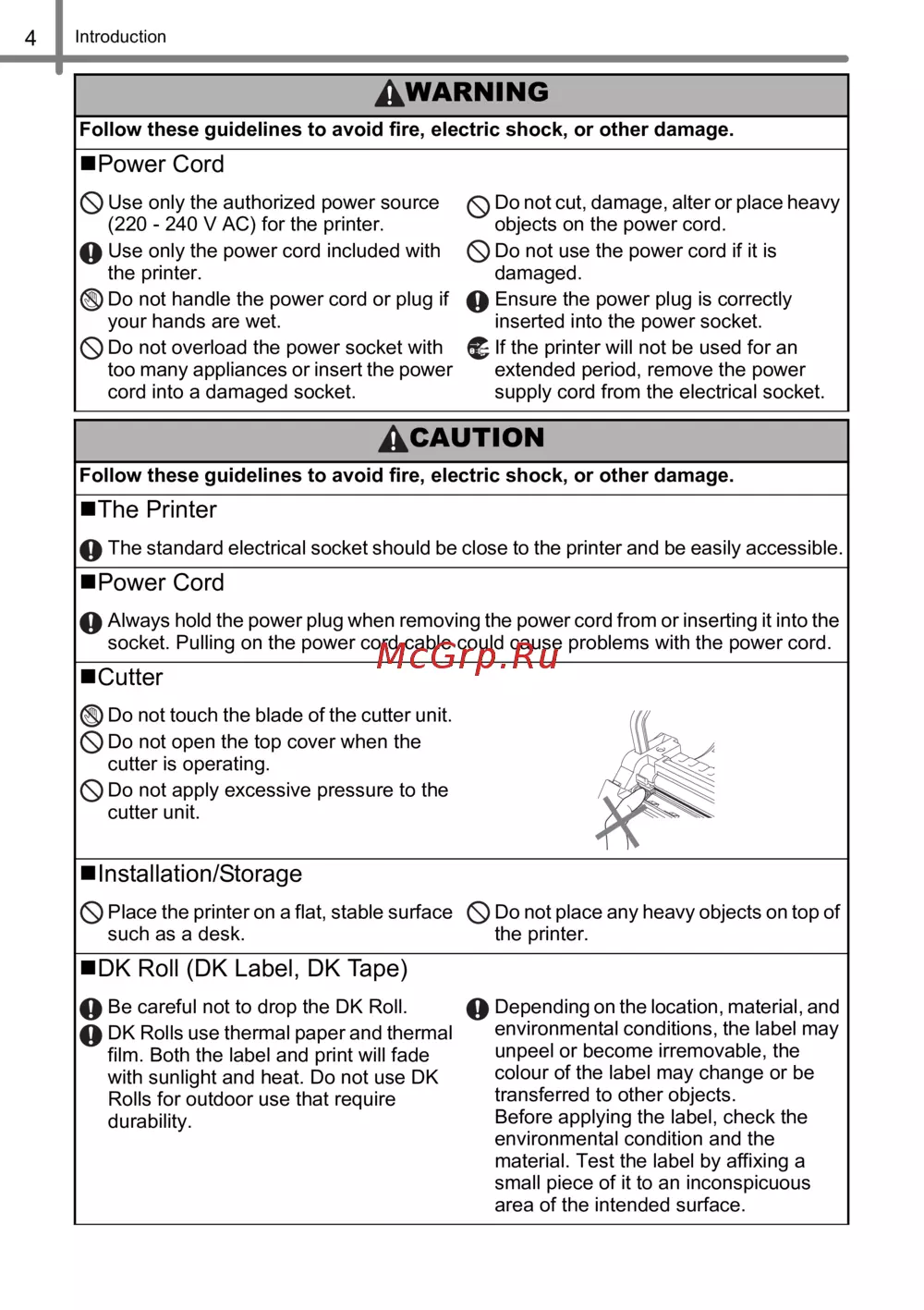

Introduction
4
Follow these guidelines to avoid fire, electric shock, or other damage.
Power Cord
Use only the authorized power source
(220 - 240 V AC) for the printer.
Use only the power cord included with
the printer.
Do not handle the power cord or plug if
your hands are wet.
Do not overload the power socket with
too many appliances or insert the power
cord into a damaged socket.
Do not cut, damage, alter or place heavy
objects on the power cord.
Do not use the power cord if it is
damaged.
Ensure the power plug is correctly
inserted into the power socket.
If the printer will not be used for an
extended period, remove the power
supply cord from the electrical socket.
CAUTION
Follow these guidelines to avoid fire, electric shock, or other damage.
The Printer
The standard electrical socket should be close to the printer and be easily accessible.
Power Cord
Always hold the power plug when removing the power cord from or inserting it into the
socket. Pulling on the power cord cable could cause problems with the power cord.
Cutter
Do not touch the blade of the cutter unit.
Do not open the top cover when the
cutter is operating.
Do not apply excessive pressure to the
cutter unit.
Installation/Storage
Place the printer on a flat, stable surface
such as a desk.
Do not place any heavy objects on top of
the printer.
DK Roll (DK Label, DK Tape)
Be careful not to drop the DK Roll.
DK Rolls use thermal paper and thermal
film. Both the label and print will fade
with sunlight and heat. Do not use DK
Rolls for outdoor use that require
durability.
Depending on the location, material, and
environmental conditions, the label may
unpeel or become irremovable, the
colour of the label may change or be
transferred to other objects.
Before applying the label, check the
environmental condition and the
material. Test the label by affixing a
small piece of it to an inconspicuous
area of the intended surface.
WARNING
