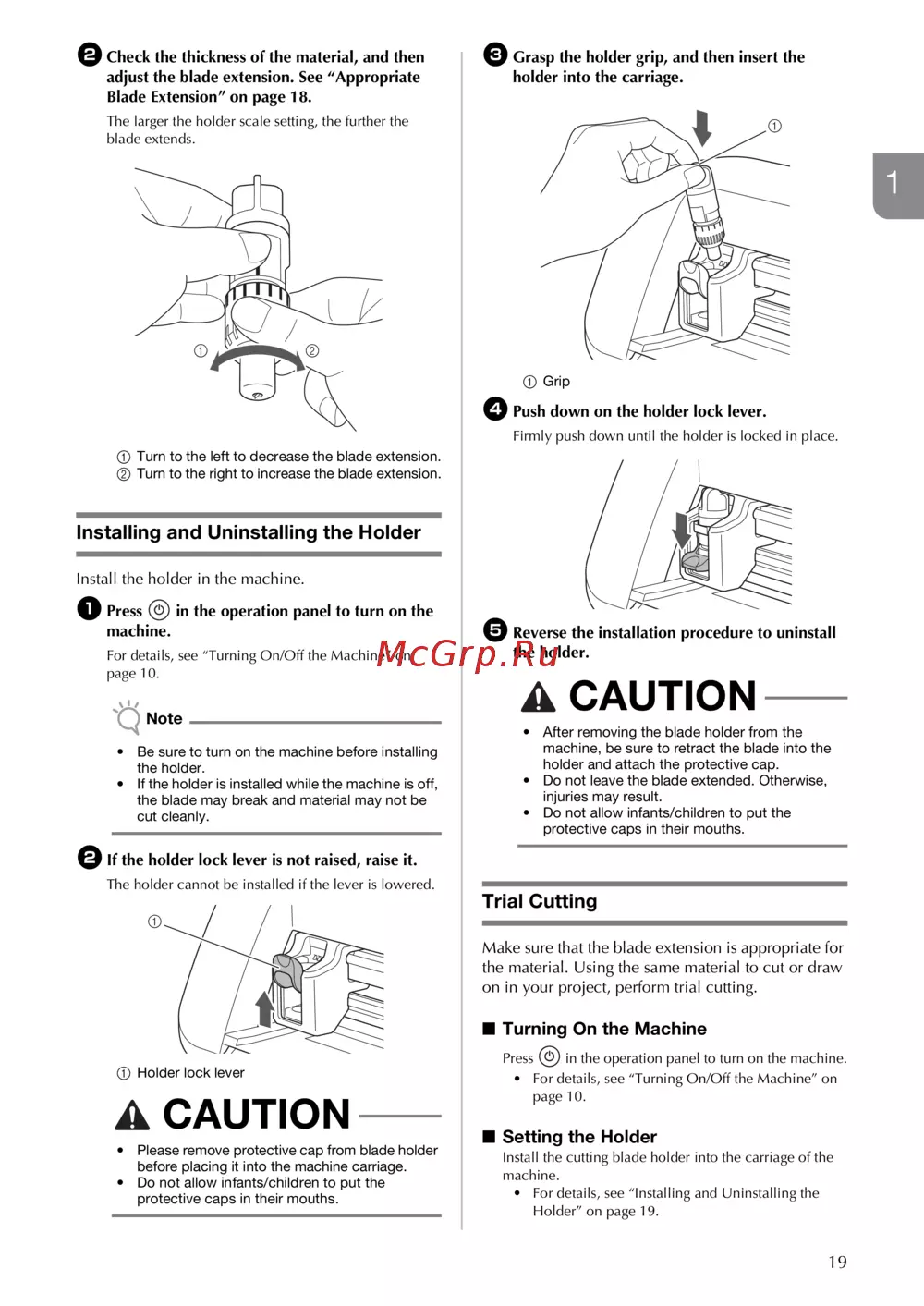

19
1
b Check the thickness of the material, and then
adjust the blade extension. See “Appropriate
Blade Extension” on page 18.
The larger the holder scale setting, the further the
blade extends.
a Turn to the left to decrease the blade extension.
b
Turn to the right to increase the blade extension.
Installing and Uninstalling the Holder
Install the holder in the machine.
a Press in the operation panel to turn on the
machine.
For details, see “Turning On/Off the Machine” on
page 10.
Note
• Be sure to turn on the machine before installing
the holder.
• If the holder is installed while the machine is off,
the blade may break and material may not be
cut cleanly.
b If the holder lock lever is not raised, raise it.
The holder cannot be installed if the lever is lowered.
a Holder lock lever
CAUTION
•
Please remove protective cap from blade holder
before placing it into the machine carriage.
• Do not allow infants/children to put the
protective caps in their mouths.
c Grasp the holder grip, and then insert the
holder into the carriage.
a Grip
d Push down on the holder lock lever.
Firmly push down until the holder is locked in place.
e Reverse the installation procedure to uninstall
the holder.
CAUTION
• After removing the blade holder from the
machine, be sure to retract the blade into the
holder and attach the protective cap.
• Do not leave the blade extended. Otherwise,
injuries may result.
• Do not allow infants/children to put the
protective caps in their mouths.
Trial Cutting
Make sure that the blade extension is appropriate for
the material. Using the same material to cut or draw
on in your project, perform trial cutting.
■ Turning On the Machine
Press in the operation panel to turn on the machine.
• For details, see “Turning On/Off the Machine” on
page 10.
■ Setting the Holder
Install the cutting blade holder into the carriage of the
machine.
• For details, see “Installing and Uninstalling the
Holder” on page 19.
a
b
a
a
