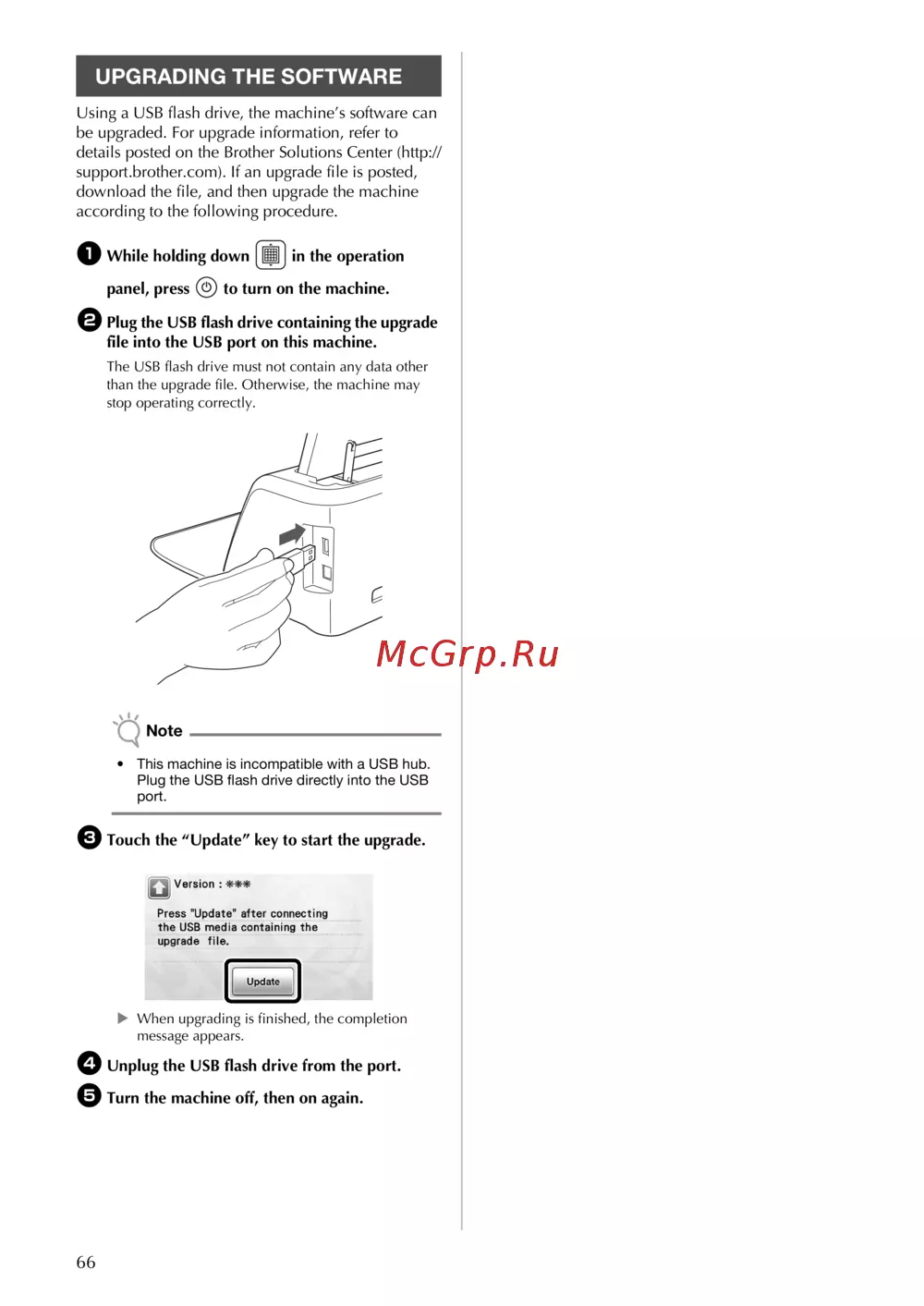

![Brother CM600 [68/71] Upgrading the software](/views2/1471072/page68/bg44.png)
66
Using a USB flash drive, the machine’s software can
be upgraded. For upgrade information, refer to
details posted on the Brother Solutions Center (http://
support.brother.com). If an upgrade file is posted,
download the file, and then upgrade the machine
according to the following procedure.
a While holding down in the operation
panel, press to turn on the machine.
b Plug the USB flash drive containing the upgrade
file into the USB port on this machine.
The USB flash drive must not contain any data other
than the upgrade file. Otherwise, the machine may
stop operating correctly.
Note
• This machine is incompatible with a USB hub.
Plug the USB flash drive directly into the USB
port.
c Touch the “Update” key to start the upgrade.
X When upgrading is finished, the completion
message appears.
d Unplug the USB flash drive from the port.
e Turn the machine off, then on again.
UPGRADING THE SOFTWARE
