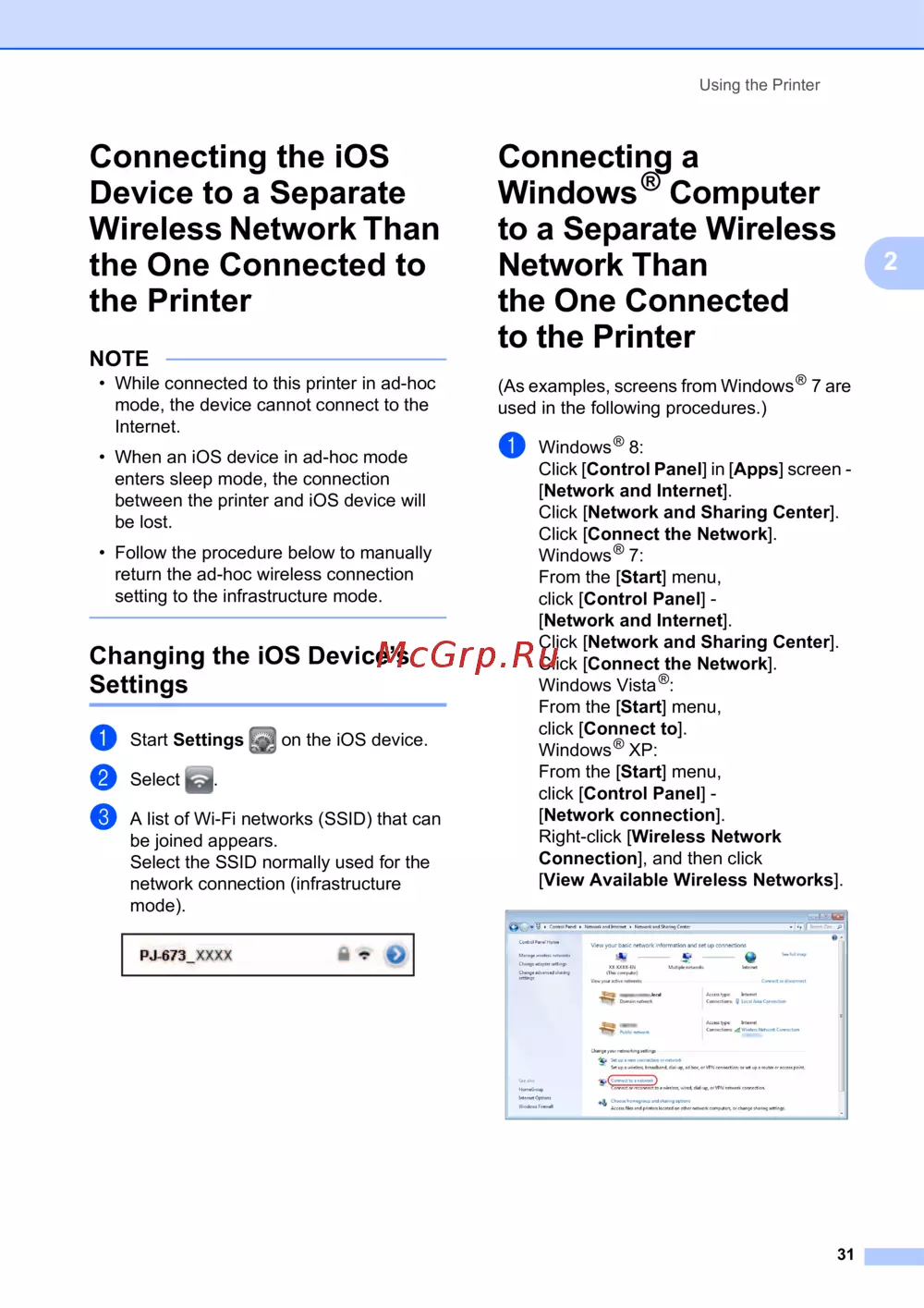

Brother PJ-673 [35/75] Connecting a window
![Brother PJ-673 [35/75] Connecting a window](/views2/1471110/page35/bg23.png)
Using the Printer
31
2
Connecting the iOS
Device to a Separate
Wireless Network Than
the One Connected to
the Printer
2
NOTE
• While connected to this printer in ad-hoc
mode, the device cannot connect to the
Internet.
• When an iOS device in ad-hoc mode
enters sleep mode, the connection
between the printer and iOS device will
be lost.
• Follow the procedure below to manually
return the ad-hoc wireless connection
setting to the infrastructure mode.
Changing the iOS Device’s
Settings 2
a Start Settings on the iOS device.
b Select .
c A list of Wi-Fi networks (SSID) that can
be joined appears.
Select the SSID normally used for the
network connection (infrastructure
mode).
Connecting a
Windows
®
Computer
to a Separate Wireless
Network Than
the One Connected
to the Printer
2
(As examples, screens from Windows
®
7 are
used in the following procedures.)
a Windows
®
8:
Click [Control Panel] in [Apps] screen -
[Network and Internet].
Click [Network and Sharing Center].
Click [Connect the Network].
Windows
®
7:
From the [Start] menu,
click [Control Panel] -
[Network and Internet].
Click [Network and Sharing Center].
Click [Connect the Network].
Windows Vista
®
:
From the [Start] menu,
click [Connect to].
Windows
®
XP:
From the [Start] menu,
click [Control Panel] -
[Network connection].
Right-click [Wireless Network
Connection], and then click
[View Available Wireless Networks].
