Using the Printer
35
2

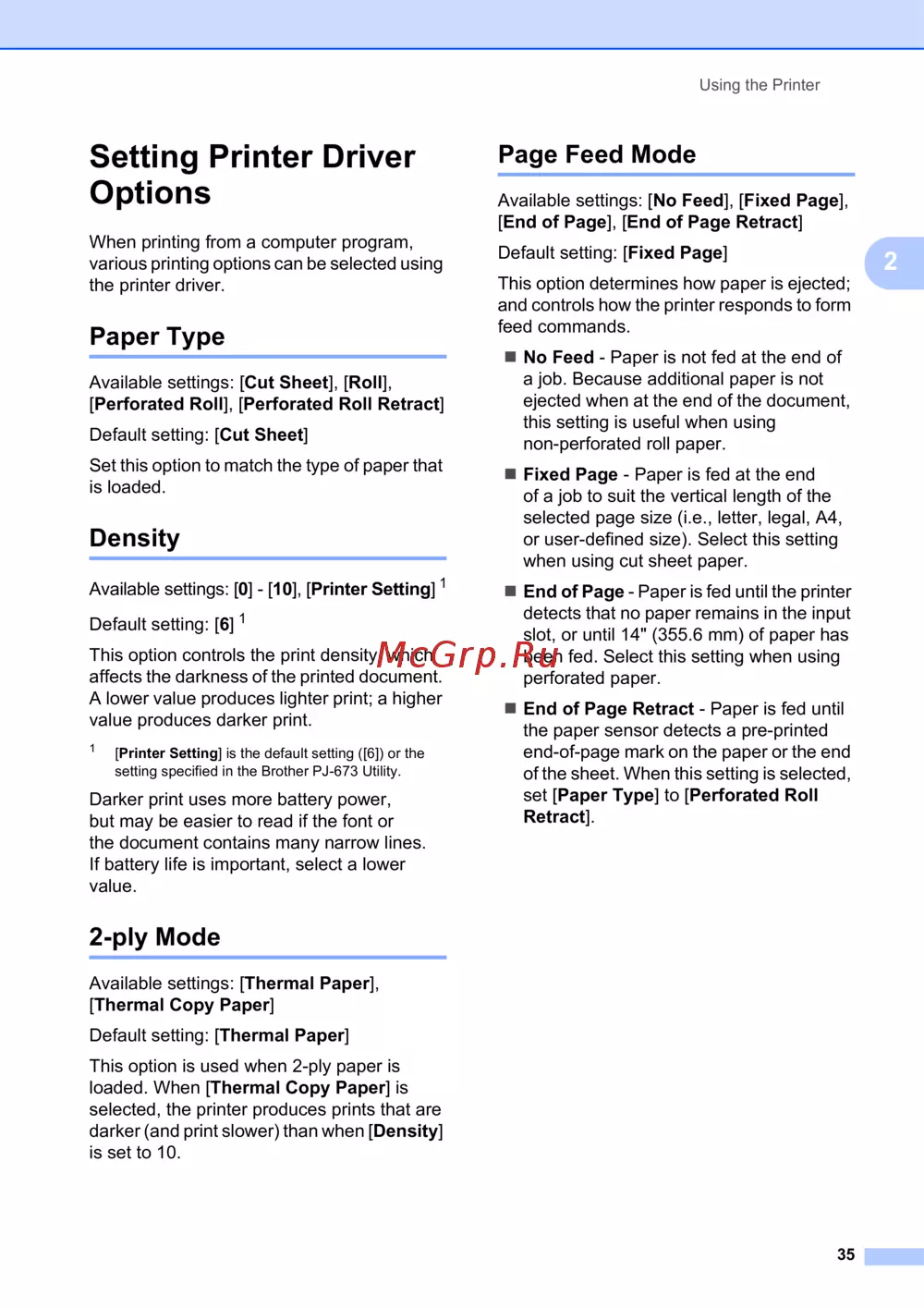

Setting Printer Driver
Options
2
When printing from a computer program,
various printing options can be selected using
the printer driver.
Paper Type 2
Available settings: [Cut Sheet], [Roll],
[Perforated Roll], [Perforated Roll Retract]
Default setting: [Cut Sheet]
Set this option to match the type of paper that
is loaded.
Density 2
Available settings: [0]-[10], [Printer Setting]
1
Default setting: [6]
1
This option controls the print density, which
affects the darkness of the printed document.
A lower value produces lighter print; a higher
value produces darker print.
1
[Printer Setting] is the default setting ([6]) or the
setting specified in the Brother PJ-673 Utility.
Darker print uses more battery power,
but may be easier to read if the font or
the document contains many narrow lines.
If battery life is important, select a lower
value.
2-ply Mode 2
Available settings: [Thermal Paper],
[Thermal Copy Paper]
Default setting: [Thermal Paper]
This option is used when 2-ply paper is
loaded. When [Thermal Copy Paper] is
selected, the printer produces prints that are
darker (and print slower) than when [Density]
is set to 10.
Page Feed Mode 2
Available settings: [No Feed], [Fixed Page],
[End of Page], [End of Page Retract]
Default setting: [Fixed Page]
This option determines how paper is ejected;
and controls how the printer responds to form
feed commands.
No Feed - Paper is not fed at the end of
a job. Because additional paper is not
ejected when at the end of the document,
this setting is useful when using
non-perforated roll paper.
Fixed Page - Paper is fed at the end
of a job to suit the vertical length of the
selected page size (i.e., letter, legal, A4,
or user-defined size). Select this setting
when using cut sheet paper.
End of Page - Paper is fed until the printer
detects that no paper remains in the input
slot, or until 14" (355.6 mm) of paper has
been fed. Select this setting when using
perforated paper.
End of Page Retract - Paper is fed until
the paper sensor detects a pre-printed
end-of-page mark on the paper or the end
of the sheet. When this setting is selected,
set [Paper Type] to [Perforated Roll
Retract].
