5
B. / Upper shaft and needle bar mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
47 018401636 2
BOLT SOCKET M4X16
48 SB1021001 1
NEEDLE BAR D
49 144458001 1
SET SCREW SM3.57-40X4.5
50 SB1023001 1
NEEDLE BAR BUSH U
51 SB1024001 1
NEEDLE BAR BUSH D
- <For KE-430F-0>
52+ NEEDLE DPX5…(#14)
- <For KE-430F-0>
52+ NEEDLE DPX5…(#9)
- <For KE-430F-05>
52+ NEEDLE DPX17NY…(#19)
- <For KE-430F-0F>
52+ NEEDLE DPX5KN…(#11)
<For BE-438F>
52+ NEEDLE DPX17NY…(#12)
53 012500536 2 SET SCREW SOCKET (FT) M5X5
54 S38713100 1 FAN
55 062400816 3 SCREW PAN M4X8
56 018501636 4
BOLT SOCKET M5X16
57 SA9004001 1
PULLEY GEAR
R
58 012500536 2 SET SCREW SOCKET (FT) M5X5
59 SB1036001 1
PULLEY SHAFT ASS
Y
60 SB1037001 1
PULLEY SHAFT
61 SB1038001 1
PULLEY BUSH
62 SB1041001 1
PULLEY SPRING
63 SB1040001 1
SCRE
W
64 047402042 1
PIN SPRING ROLL AW4
65 SB1039001 1
PULLEY GEAR L
66 012500536 2 SET SCREW SOCKET (FT) M5X5
67 SB0910001 1
PULLE
Y
68 048280142 1
RETAINING RING EXTERNAL C28
KE-430F/BE-438F-123
6
5
KE-430F/BE-438F-123

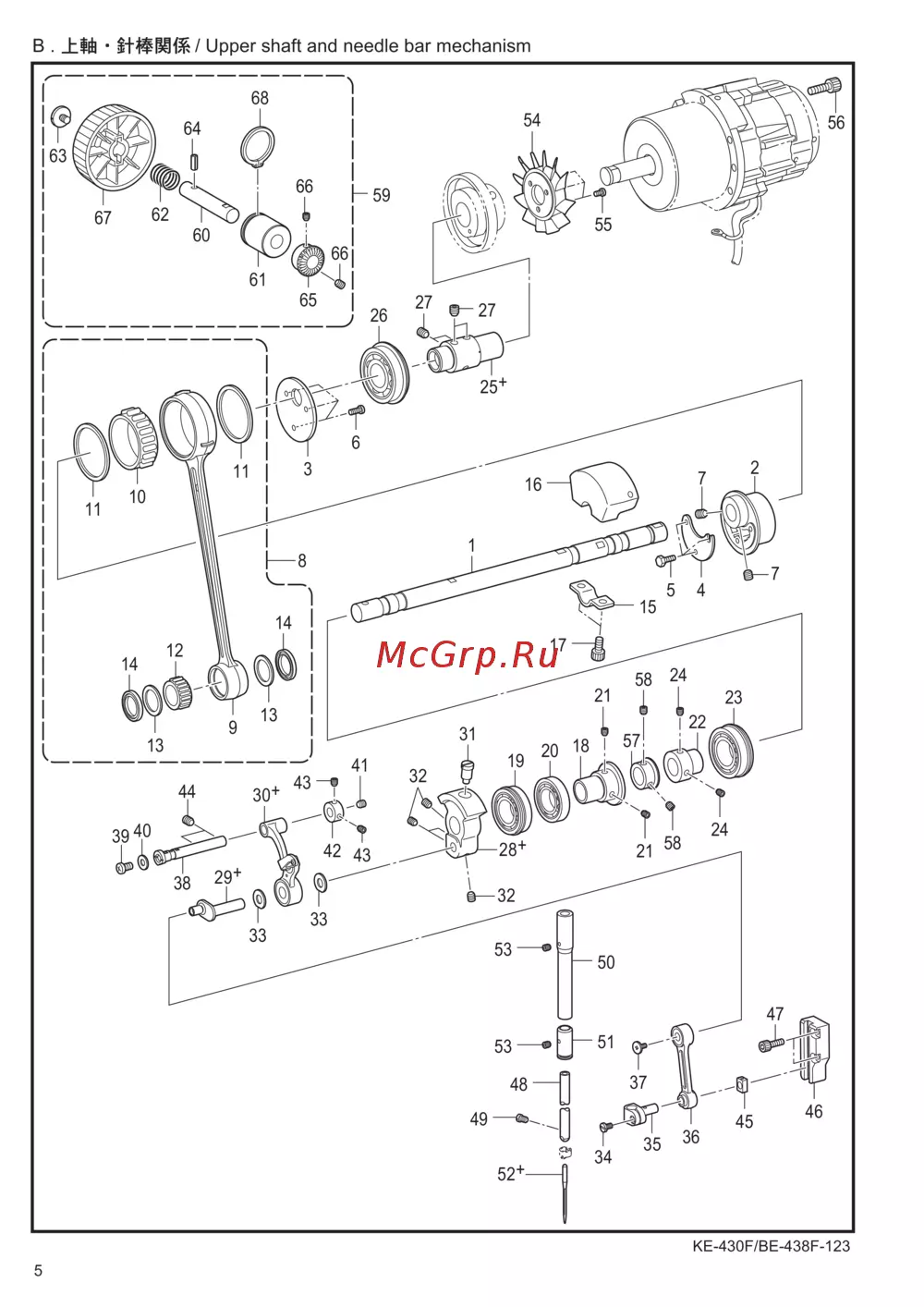

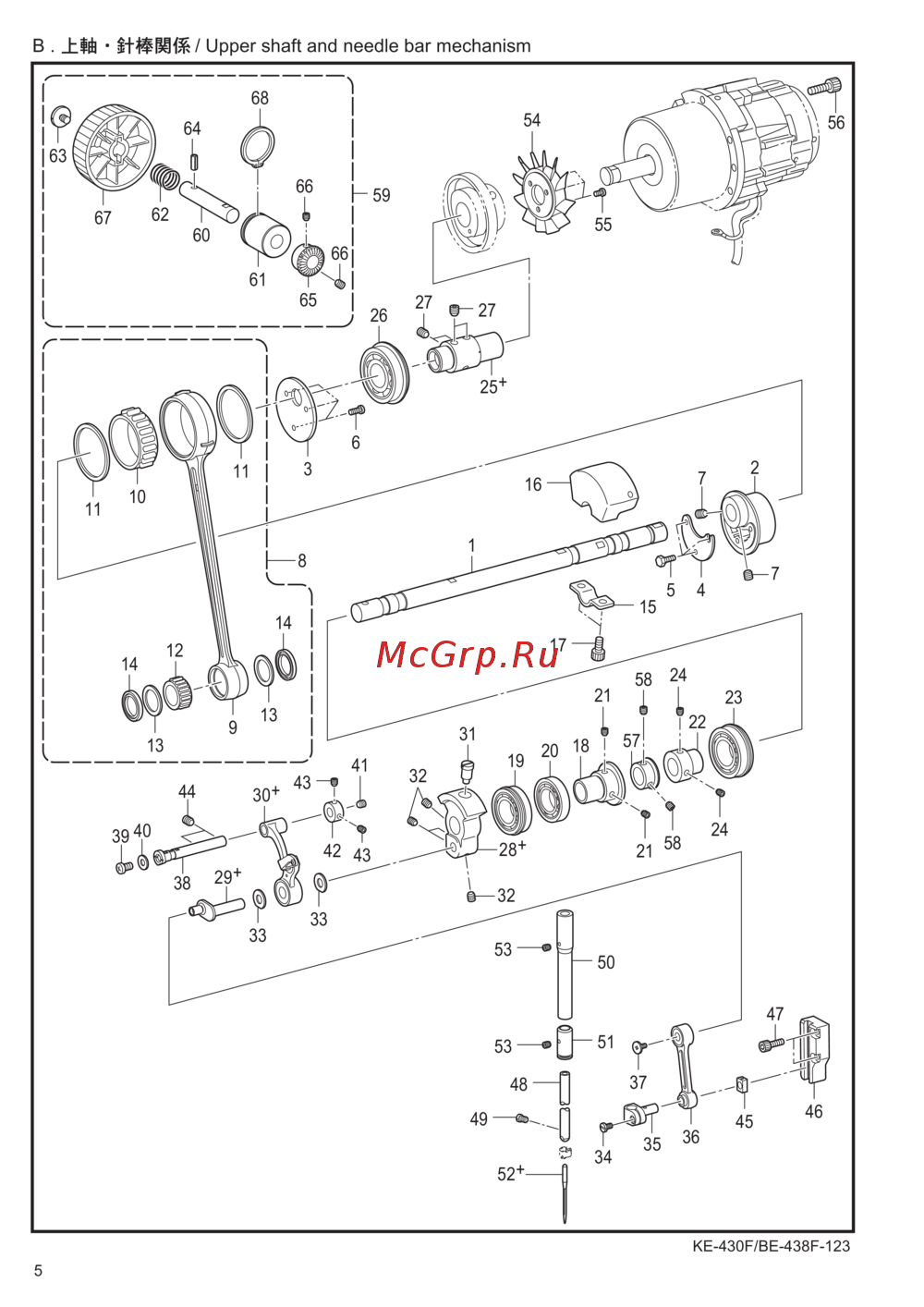

B . / Upper shaft and needle bar mechanism
56
46
45
36
37
4
33
33
42
43
5
2
7
7
3
11
10
11
6
55
23
22
58
57
18
19
47
20
31
41
38
44
40
39
1
26
68
66
66
64
17
49
43
16
14
14
13
13
9
48
53
51
15
50
54
65
60
61
62
63
67
27
59
8
27
21
58
21
12
32
32
25
+
30
+
28
+
29
+
52
+
24
24
53
34
35
