7

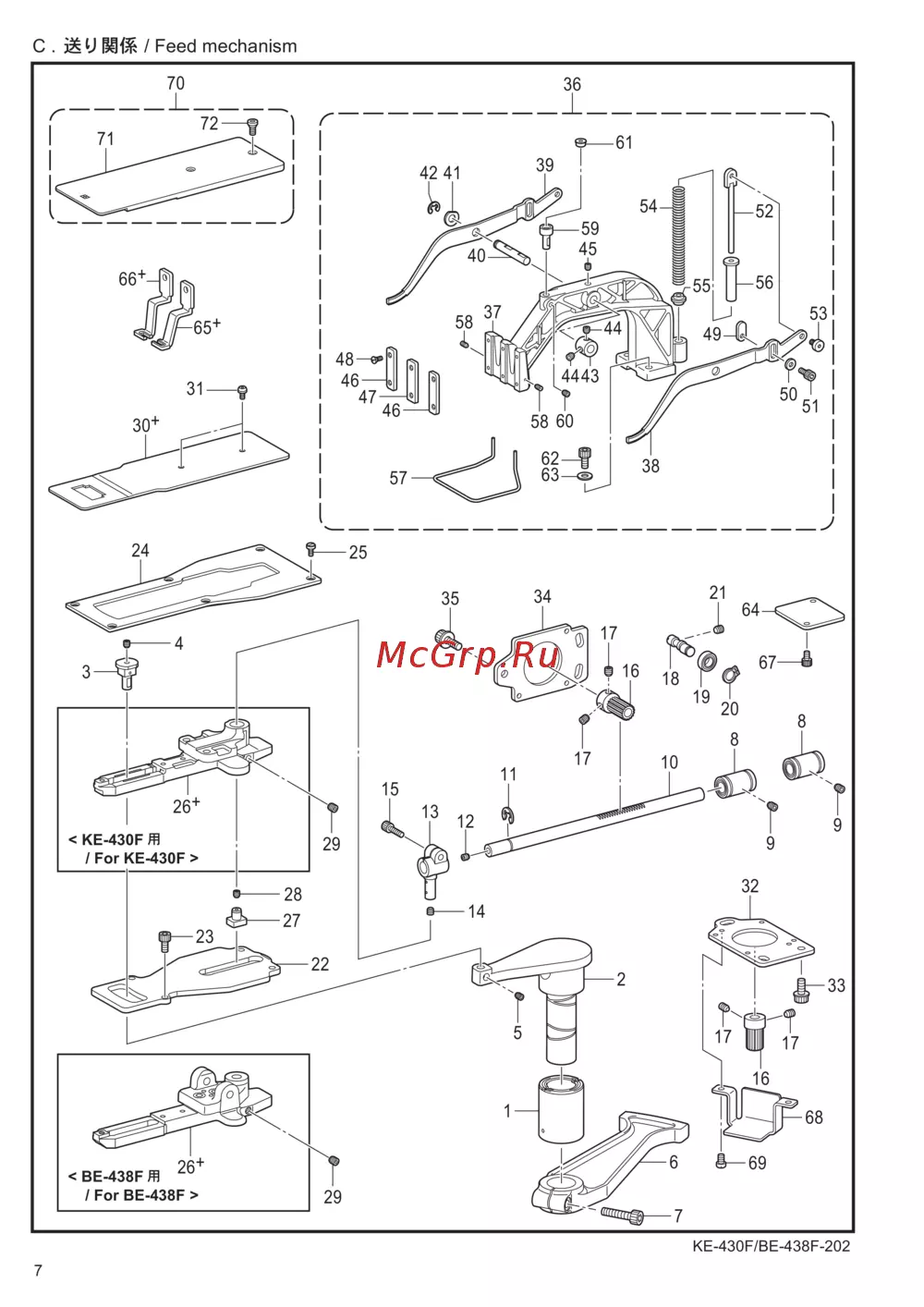

C. / Feed mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SB0956001 1
X-FEED LEVER BUSH
2 SB0922001 1
X-FEED LEVE
R
3 SB0800001 1 T-LENGTH REGURATOR BLOCK ASS
Y
4 012300336 1 SET SCREW SOCKET (FT) M3X3
5 012500536 1 SET SCREW SOCKET (FT) M5X5
6 SA3366101 1
X-FEED GEA
R
7 018063036 1
BOLT SOCKET M6X30
8 XC5780001 2
BEARING 10 ,LINE
R
9 012060636 2 SET SCREW SOCKET (FT) M6X6
10 SB0918001 1
Y-FEED RACK SHAF
T
11 048080342 1 RETAINING RING E8
12 012500536 1 SET SCREW SOCKET (FT) M5X5
13 SB0917001 1
Y-FEED RACK SHAFT CLAMP
14 012400436 1 SET SCREW SOCKET (FT) M4X4
15 018501436 1
BOLT SOCKET M5X14
16 SA4197101 2
FEED GEA
R
17 012060536 4 SET SCREW SOCKET (FT) M6X5
18 SA3370001 1
ECCENTRIC SHAFT
19 070608800 1
BALL BEARING RADIAL 608ZZ
20 048080142 1
RETAINING RING EXTERNAL C8
21 012060636 1 SET SCREW SOCKET (FT) M6X6
22 SB0916001 1
FEED BAR SUPPORT PLATE
23 018401036 4
BOLT SOCKET M4X10
24 SB0921001 1
FEED BAR COVE
R
25 SA3538001 6
SCREW,M4X8
<For KE-430F>
26+ SB0799101 1
FEED BAR SUB ASSY
A
<For BE-438F>
26+ SB1076001 1
FEED BAR SUB ASSY
B
27 SB0803001 1 T-WIDTH REGURATOR BLOCK ASS
Y
28 012400436 1 SET SCREW SOCKET (FT) M4X4
29 012500536 1 SET SCREW SOCKET (FT) M5X5
30+ P.54-58 1 FEED PLATE
31 153057101 2
SCREW, ROUND W/SOCKET SM4.37
32 SB0919001 1 X-MOTOR SETTING PLATE
33 S42446001 3
BOLT SOCKET (S/P WASHER)M6X14
34 SB0920001 1 Y-MOTOR SETTING PLATE
35 S42446001 3
BOLT SOCKET (S/P WASHER)M6X14
36 SB1171001 1
WORK CLAMP ARM ASS
Y
37 SA3419101 1
WORK CLAMP ARM
38 SB0925001 1
WORK CLAMP ARM LEVER
R
39 SB0926101 1
WORK CLAMP ARM LEVER L
40 SB0929001 1
WORK CLAMP ARM LEVER SHAF
T
41 110367001 1
WASHER, PLAIN SPECIAL
8
42 048060346 1 RETAINING RING E6
43 SA3231001 1 SET SCREW COLLAR,B
44 012060536 2 SET SCREW, SOCKET (FT) M6X5
45 012500536 1 SET SCREW SOCKET (FT) M5X5
46 SA3424001 2 WORK CLAMP GUIDE BRACKET,
A
47 SA3425001 1 WORK CLAMP GUIDE BRACKET,B
48 SA3426001 6
SCREW,FLAT M3.5
49 SA3208201 2
WORK CLAMP ARM LEVER PLATE
50 146354002 2
WASHER, PLAIN 5
51 018500836 2
BOLT SOCKET M5X8
52 SA3427101 2
SPRING GUIDE ROD
53 SA1179002 2
SHOULDER SCREW, M5
54 153568001 2
PRESSER SPRING,
A
55 152788000 2
PRESSER SPRING SPACE
R
56 153567000 2
PRESSER SPRING COLLA
R
57 SA4130001 1
FINGER GUARD
58 SA2626001 2
SET SCREW, (CP) M3.5
KE-430F/BE-438F-202
8
7
KE-430F/BE-438F-202
C . / Feed mechanism
< BE-438F
/ For BE-438F >
< KE-430F
/ For KE-430F >
7
6
33
68
69
5
2
14
1
17
17
16
32
34
35
25
24
67
59
52
56
55
44
61
38
50
51
54
49
40
64
57
62
63
46
48
46
47
37
58
45
39
53
41
36
42
60
58
4344
22
27
23
3
29
29
31
10
11
12
13
15
8
8
9
9
28
4
17
16
18
19
20
21
17
65
+
26
+
26
+
30
+
66
+
72
71
70
