15
F. / Lower shaft mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SB1652001 1 SHUTTLE RACE BASE SE
T
2 SB1173001 1 SHUTTLE RACE BASE UNI
T
3 SB1072001 1 SHUTTLE RACE BASE
4 SB1285001 1 SHUTTLE RACE THREAD GUIDE
5 SA4199001 2
SCREW M3X4
6 SA3241001 2 S-RACE BASE SETTING CLA
W
7 152684101 2
COMPRESSION SPRING
8 026030136 2
WASHER PLAIN S 3
9 062300616 2 SCREW PAN M3X6
10 SA9396001 2 FELT
11 SB1044001 2 FELT
12 SB1050001 2
OIL FEEDING PIPE S
13 SB1048101 1
OIL FEEDING PIPE M
14 SB1047001 1 FELT HOLDER
15 SA9191001 2
SCREW M3X5.5
16 SA3274101 1 FELT HOLDER
17 S47307001 2
SCREW, M3X4
18 SB1049001 1 FELT ASS
Y
19 SA9397001 2
RUBBER CAP 5.5
20 SB1054001 2
OIL TUBE L=330
21 SB1055001 1
OIL TUBE L=430
22 SA4187001 2
NEEDLE BEARING KT182412 EG…<BLUE>
22 SA4188001 2
NEEDLE BEARING KT182412 EG…<BLACK>
22 SA4189001 2
NEEDLE BEARING KT182412 EG…<SILVER>
22 SA4190001 2
NEEDLE BEARING KT182412 EG…<COPPER>
23 SA3276001 2 SPACER
A
24 SA3277001 2 RETAINING RING
25 012060636 1 SET SCREW SOCKET (FT) M6X6
26 SA3278001 1 COLLAR
27 SB1268001 1
LOWER SHAFT ASS
Y
28 S23651001 2 SET SCREW SOCKET (FT) M6X6
29 SA6448201 1
DRIVER E
30 018501036 1
BOLT SOCKET M5X10
31+ P.53 1 SHUTTLE RACE BASE
32+ P.53 1
SHUTTLE HOOK ASSY W/BO
X
33+ P.53 1
BOBBIN CASE ASS
Y
34+ P.53 1
BOBBIN
35 SB1175001 1
GEAR COVE
R
36 062400616 5 SCREW PAN M4X6
37 0A5400806 2
SCREW PAN (S/P WASHER) M4X
8
38 SB0718001 1
ROCK GEAR COLLA
R
39 081040070 2
O RING P40
40 012060636 4 SET SCREW SOCKET (FT) M6X6
41 SB0717001 1
ROCK GEA
R
42 S23651001 2 SET SCREW SOCKET (FT) M6X6
43 SB1043101 1
ROCK GEAR SHAFT ASS
Y
44 S23651001 2 SET SCREW SOCKET (FT) M6X6
45 SB0985001 1
ROCK GEAR SHAFT
R
46 SA7520001 2
BALL BEARING 6904ZZNR
47 SB0909001 2
RUBBER SEAL
R
48 017061006 1
BOLT M6X10
49 SB1051001 1
WASHER CRANK RID
50 SB0986001 2
BEARING BUSH
51 SA4647001 2
BALL BEARING 6900ZZNR
52 S23651001 4 SET SCREW SOCKET (FT) M6X6
53 SB1258001 1 OIL SEAL
54 SB0790001 1
RUBBER SEAL L
55 SB1204001 1
POSITIONING PLATE
56 062400616 2 SCREW PAN M4X6
57 012400436 1 SET SCREW SOCKET (FT) M4X4
58 SA3238101 1
A
DJUSTING STUD
59 081003670 1
O RING PW3
KE-430F/BE-438F-305
16
15
KE-430F/BE-438F-305

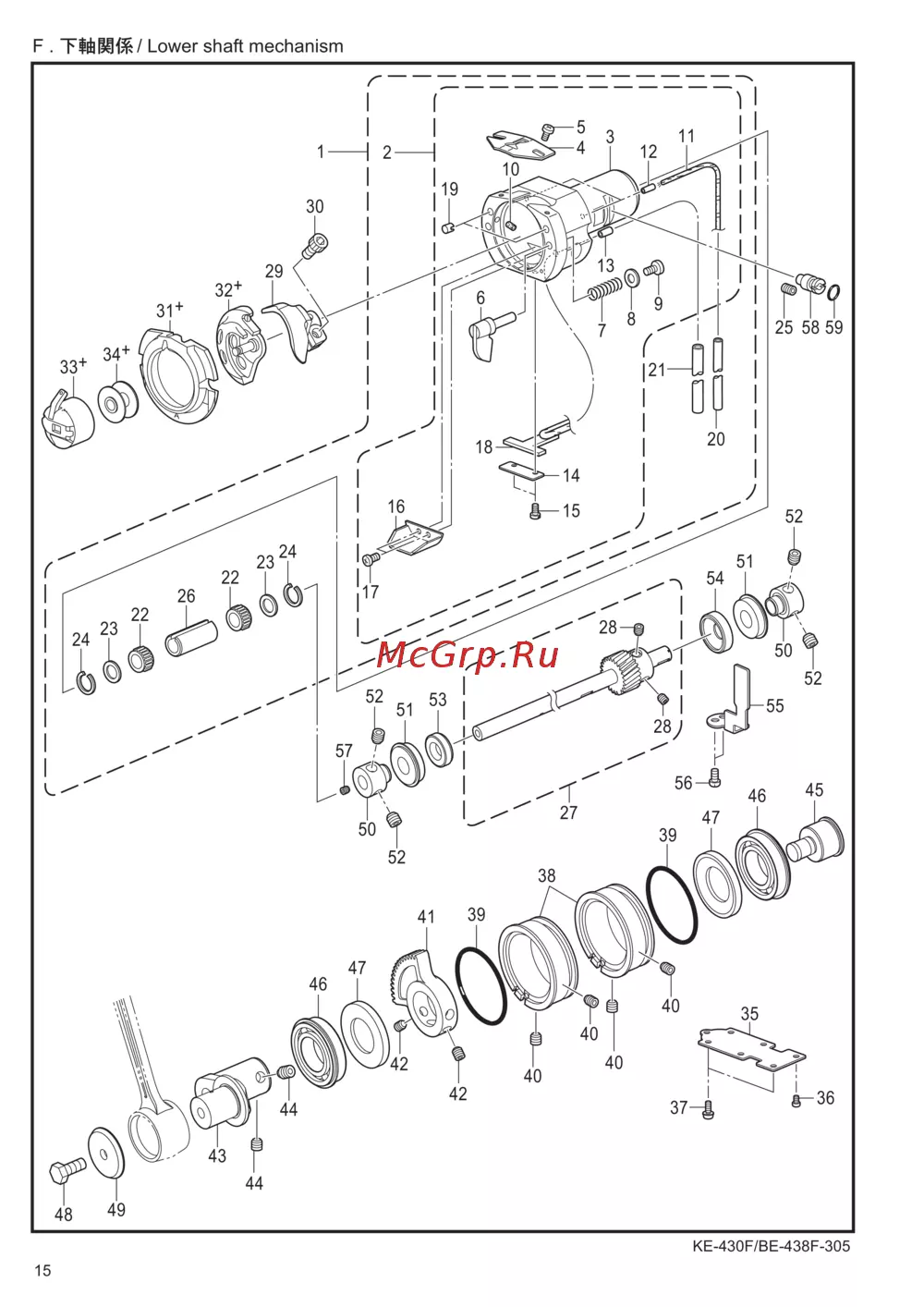

F . / Lower shaft mechanism
18
5
4
8
7
29
13
9
20
21
17
31
+
6
3
12
11
10
19
30
32
+
34
+
25 58 59
36
37
15
14
33
+
26
24
24
23
22
22
23
57
52
50
52
52
50
52
51
53
27
54
51
16
35
2
1
28
56
28
42
42
38
41
47
46
39
46
45
47
55
39
40
40
40
40
43
44
44
48
49
