22

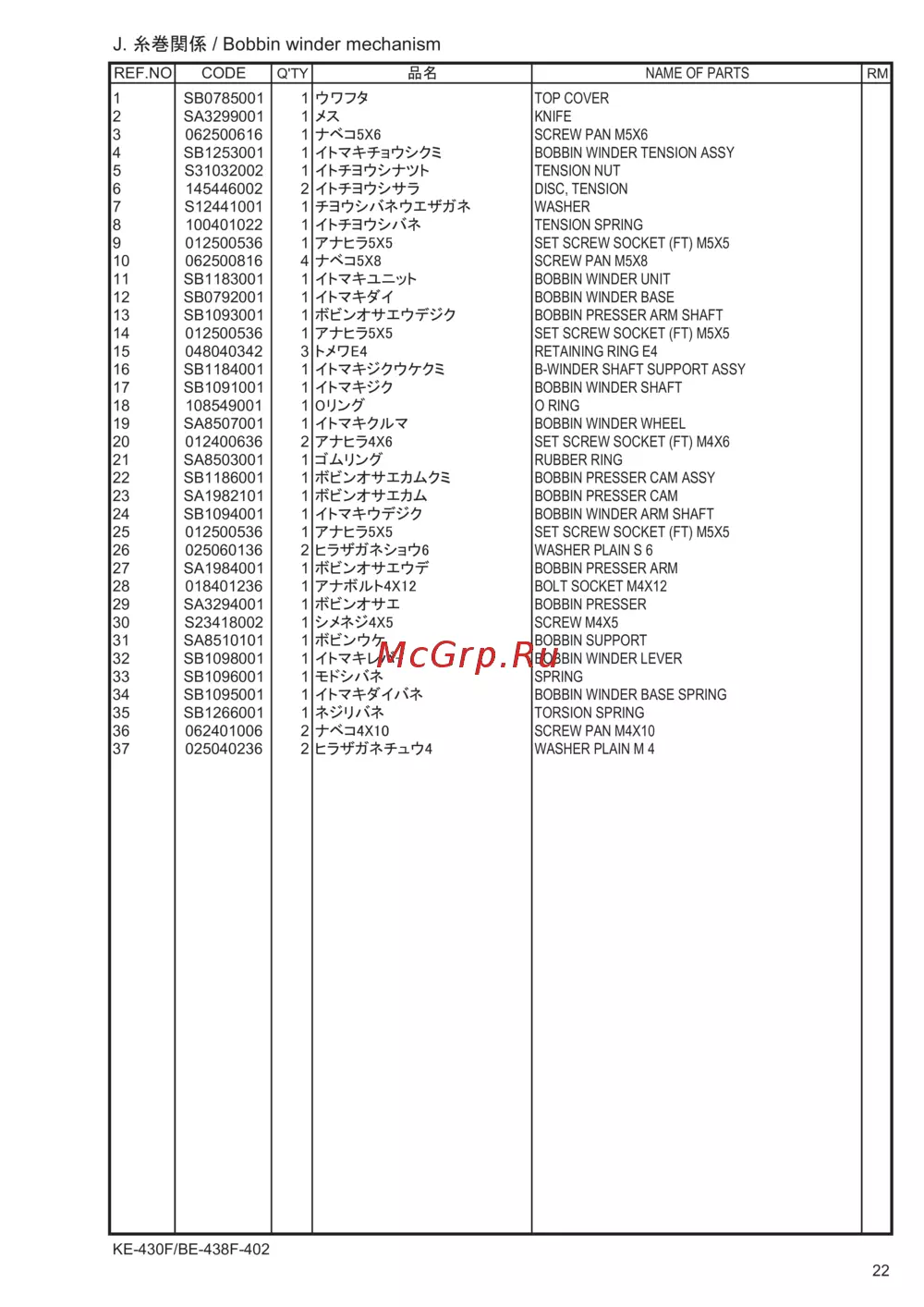

J. / Bobbin winder mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SB0785001 1 TOP COVER
2 SA3299001 1 KNIFE
3 062500616 1 SCREW PAN M5X6
4 SB1253001 1 BOBBIN WINDER TENSION ASS
Y
5 S31032002 1 TENSION NUT
6 145446002 2 DISC, TENSION
7 S12441001 1
WASHE
R
8 100401022 1
TENSION SPRING
9 012500536 1 SET SCREW SOCKET (FT) M5X5
10 062500816 4 SCREW PAN M5X8
11 SB1183001 1 BOBBIN WINDER UNI
T
12 SB0792001 1
BOBBIN WINDER BASE
13 SB1093001 1
BOBBIN PRESSER ARM SHAF
T
14 012500536 1 SET SCREW SOCKET (FT) M5X5
15 048040342 3 RETAINING RING E4
16 SB1184001 1
B-WINDER SHAFT SUPPORT ASS
Y
17 SB1091001 1
BOBBIN WINDER SHAF
T
18 108549001 1
O RING
19 SA8507001 1 BOBBIN WINDER WHEE
L
20 012400636 2 SET SCREW SOCKET (FT) M4X6
21 SA8503001 1
RUBBER RING
22 SB1186001 1
BOBBIN PRESSER CAM ASS
Y
23 SA1982101 1
BOBBIN PRESSER CAM
24 SB1094001 1
BOBBIN WINDER ARM SHAF
T
25 012500536 1 SET SCREW SOCKET (FT) M5X5
26 025060136 2
WASHER PLAIN S 6
27 SA1984001 1
BOBBIN PRESSER ARM
28 018401236 1
BOLT SOCKET M4X12
29 SA3294001 1
BOBBIN PRESSE
R
30 S23418002 1
SCREW M4X5
31 SA8510101 1
BOBBIN SUPPOR
T
32 SB1098001 1
BOBBIN WINDER LEVE
R
33 SB1096001 1
SPRING
34 SB1095001 1
BOBBIN WINDER BASE SPRIN
G
35 SB1266001 1
TORSION SPRING
36 062401006 2 SCREW PAN M4X10
37 025040236 2
WASHER PLAIN M 4
KE-430F/BE-438F-402
22
