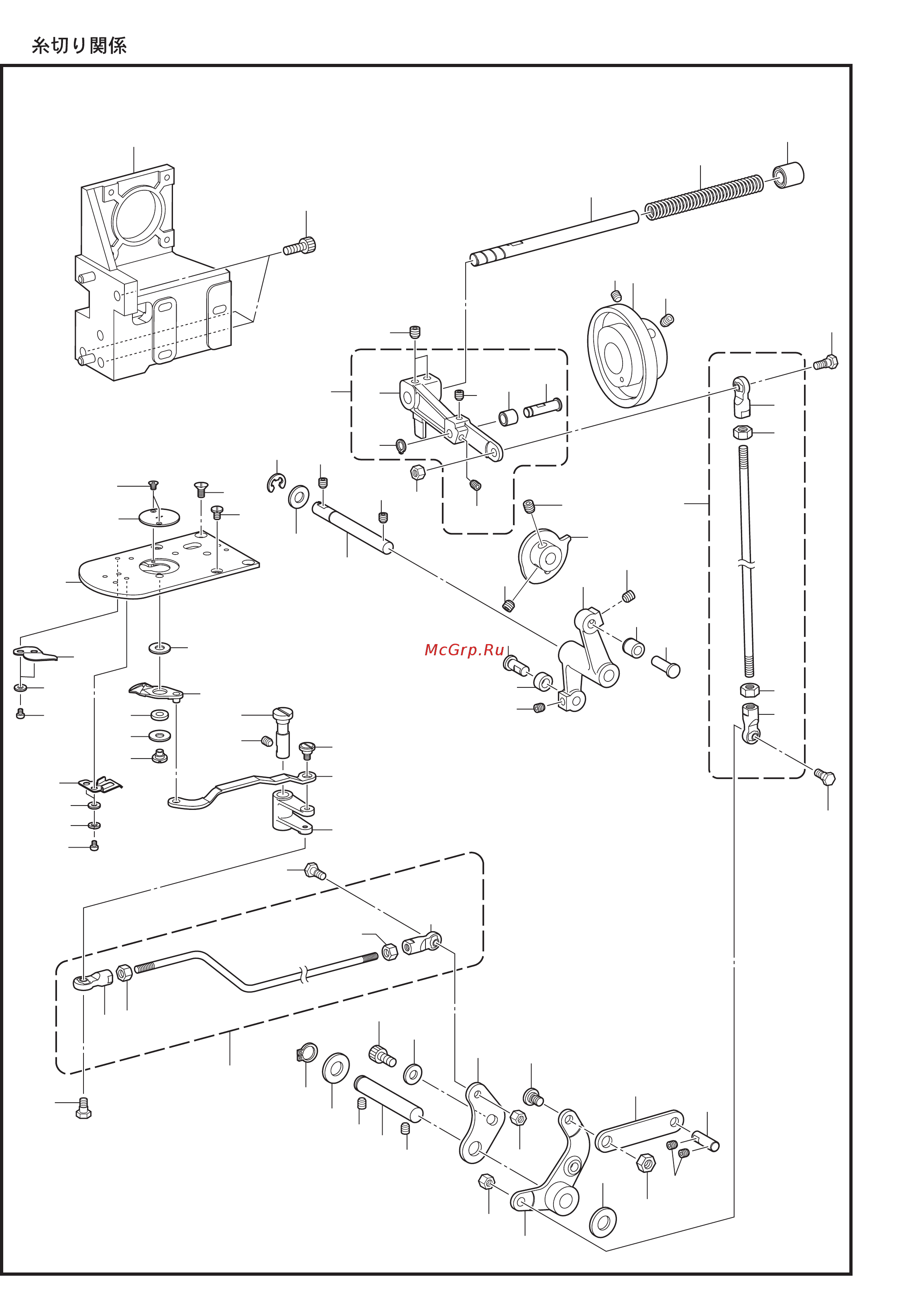

Brother KE-430FX [28/68] K thread trimmer mechanism
![Brother KE-430FX [28/68] K thread trimmer mechanism](/views2/1497382/page28/bg1c.png)
23
K. / Thread trimmer mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For KE-430F>
1+ SB0935001 1 THREAD TRIMMER CAM
<For BE-438F>
1+ SB1206001 1 THREAD TRIMMER CAM B
2 S23651001 2 SET SCREW SOCKET (FT) M6X6
3 SB1187001 1
TR-DRIVING LEVER ASS
Y
4 SB0936001 1
TR-DRIVING LEVE
R
5 SB0834001 1 COLLAR TR-TRIMMER
6 SB0711001 1
COLLAR SHAFT
7 012500536 2 SET SCREW SOCKET (FT) M5X5
8 048060142 1
RETAINING RING EXTERNAL C6
9 S23651001 2 SET SCREW SOCKET (FT) M6X6
10 021060306 1 NUT 3 M6
11 231071001 1 BUSH, 8X15
12 SB0938001 1
GUIDE SHAFT
13 SB0937001 1
SPRING COMPRESSION
14 SB0939001 1 THREAD TRIMMER ROD ASSY
V
15 S32465101 2
BALL JOINT ASS
Y
16 S32462001 2
SHOULDER SCREW, B ;M6
17 021060306 2 NUT 3 M6
18 SB0945001 1
THREAD TRIMMER LEVER
V
19 SB0943001 1 THREAD TRIMMER LIN
K
20 SB0705001 1
LINK SHOULDER SCRE
W
21 021060306 1 NUT 3 M6
22 SB0944001 1
SOLENOID SHAFT
23 012500536 2 SET SCREW SOCKET (FT) M5X5
24 SB0946001 1
THREAD TRIMMER LEVER H
25 021060306 2 NUT 3 M6
26 SB0947001 1
SHAFT TR-TRIMMER LEVER
27 SB0948001 2
SPACE
R
28 048100142 1
RETAINING RING EXTERNAL C10
29 012060636 2 SET SCREW SOCKET (FT) M6X6
30 018061236 1
BOLT SOCKET M6X12
31 155559001 1
WASHER PLAIN
32 SB0941001 1 THREAD TRIMMER ROD ASSY H
33 S32465101 2
BALL JOINT ASS
Y
34 S32462001 1
SHOULDER SCREW, B ;M6
35 021060306 2 NUT 3 M6
36 SA3324001 1
MOVING KNIFE LEVE
R
37 SA3325101 1
SHOULDER SCREW 6.35-6
38 SA3326001 1
SHAFT M-KNIFE LEVER
39 012060636 1 SET SCREW SOCKET (FT) M6X6
40 SA3327401 1 M-KNIFE CONNECTING PLATE
41 SA4354001 1
SHOULDER SCREW,6-1.8
42 SB0714001 1 NEEDLE PLATE
43 SB1189001 1 MOVABLE KNIFE F ASS
Y
44 SA4518001 1
MOVABLE KNIFE SHOULDER SCRE
W
45 SA4519001 1
THRUST WASHE
R
46 S00705001 1 MOVABLE KNIFE COLLA
R
47 SA3334001 1
M-KNIFE SPACER T0.3
47 SB0955001 1
M-KNIFE SPACER T0.35
47 SA6398001 1
M-KNIFE SPACER T0.4
48 SB1191101 1 FIXED KNIFE F
49 062300416 2 SCREW PAN M3X4
50 025030236 2
WASHER PLAIN M 3
51+ P.53, 58 1 NEEDLE HOLE PLATE
52 100360003 2
SCRE
W
53 S25310101 2
SCREW, FLAT M4
54 SA3538001 2
SCREW,M4X8
55 SB0932001 1
CAM LEVER THREAD TRIMME
R
56 SA3449101 1 THREAD WIPER ROLLE
R
57 SA3441001 1
W-CLAMP LIFTER ROLLER SHAFT
KE-430F/BE-438F-403
24
23
KE-430F/BE-438F-403

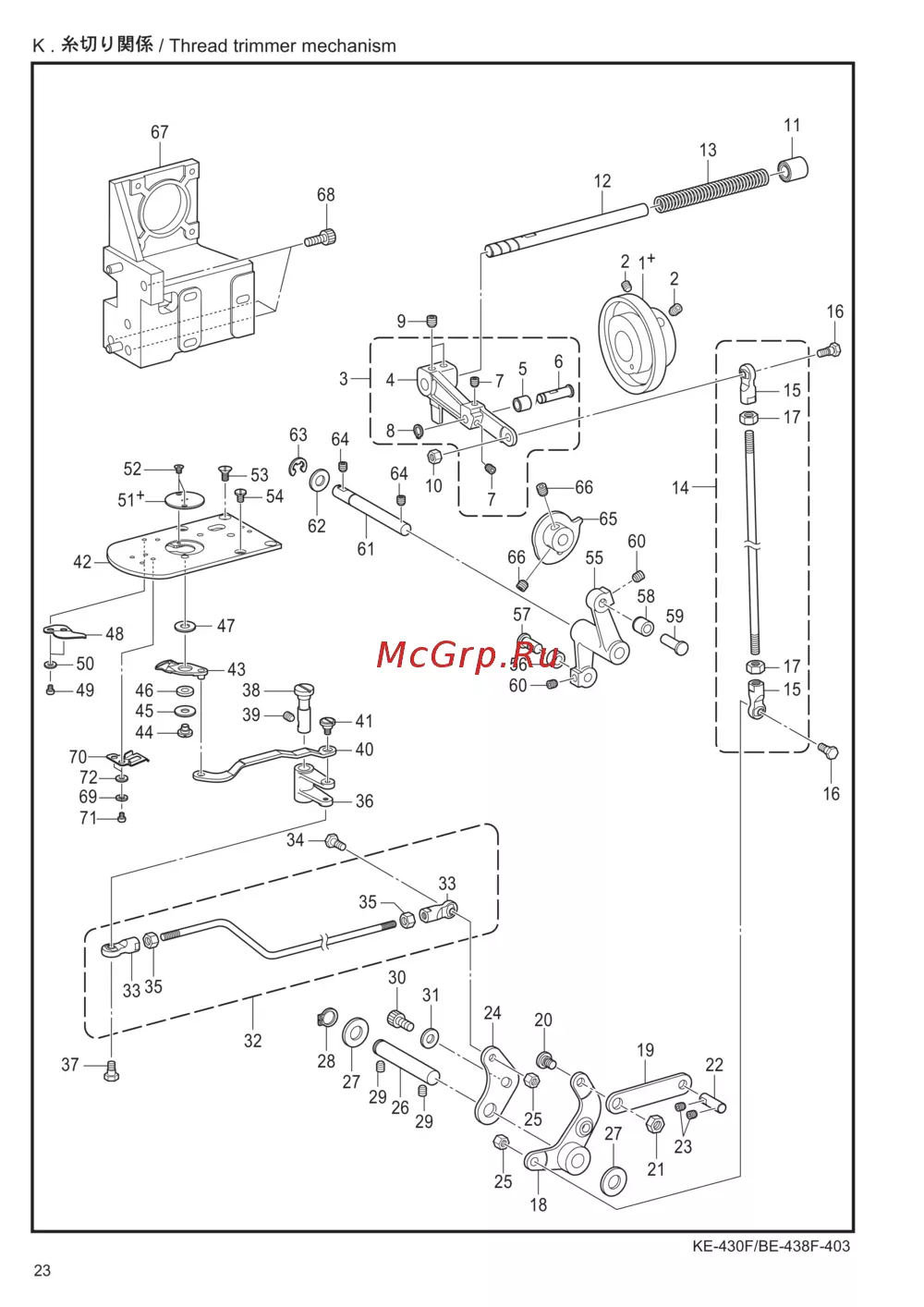

K . / Thread trimmer mechanism
4
3
9
29
29
7
16
61
62
18
27
28
26
21
23
15
17
14
17
15
12
19
22
20
27
24
31
30
13
11
2
2
5
6
8
16
55
58
64
63
64
60
59
57
25
25
32
33
35
34
35
33
37
36
40
41
38
39
42
52
43
44
45
46
49
50
70
72
69
71
48
47
53
54
60
65
66
66
56
51
+
1
+
10
7
67
68
