Brother KE-430FX [31/68] K thread trimmer mechanism
![Brother KE-430FX [31/68] K thread trimmer mechanism](/views2/1497382/page31/bg1f.png)
26

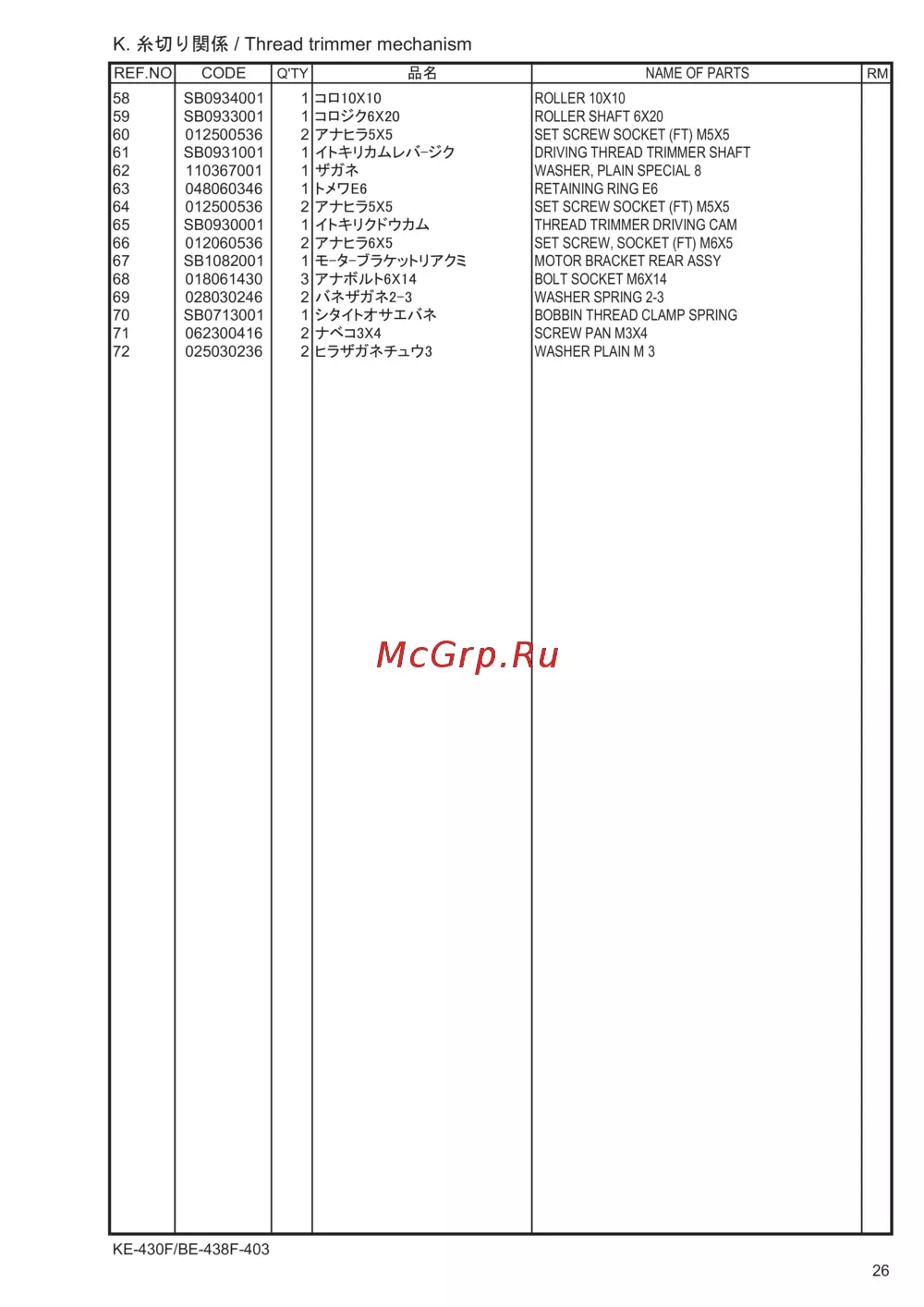

K. / Thread trimmer mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
58 SB0934001 1 ROLLER 10X10
59 SB0933001 1
ROLLER SHAFT 6X20
60 012500536 2 SET SCREW SOCKET (FT) M5X5
61 SB0931001 1
DRIVING THREAD TRIMMER SHAFT
62 110367001 1
WASHER, PLAIN SPECIAL
8
63 048060346 1 RETAINING RING E6
64 012500536 2 SET SCREW SOCKET (FT) M5X5
65 SB0930001 1 THREAD TRIMMER DRIVING CAM
66 012060536 2 SET SCREW, SOCKET (FT) M6X5
67 SB1082001 1
MOTOR BRACKET REAR ASS
Y
68 018061430 3
BOLT SOCKET M6X14
69 028030246 2
WASHER SPRING 2-3
70 SB0713001 1
BOBBIN THREAD CLAMP SPRING
71 062300416 2 SCREW PAN M3X4
72 025030236 2
WASHER PLAIN M 3
KE-430F/BE-438F-403
26
