Brother KE-430FX [35/68] M tension release mechanism

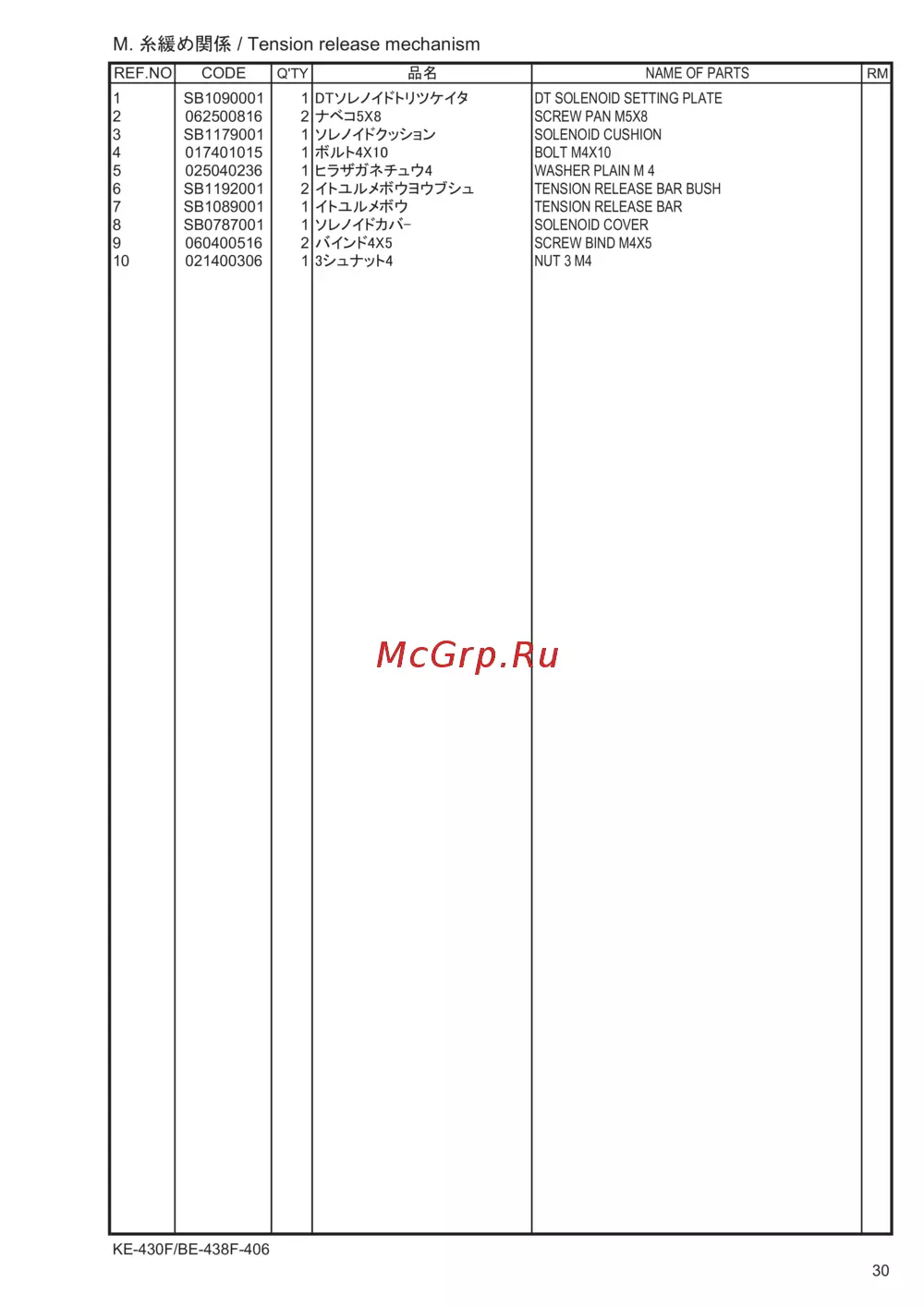

M. 󰵼󰸮󱭑 / Tension release mechanism

REF.NO CODE Q'TY  NAME OF PARTS RM

1 SB1090001 1 󲆜󲆬󲥹󲦨󲦊󲥠󲦅󲦄󲦦󲦀󲥭󲥠󲥻 DT SOLENOID SETTING PLATE

2 062500816 2 󲦆󲦕󲥯󲆍󲆰󲆐 SCREW PAN M5X8

3 SB1179001 1 󲥹󲦨󲦊󲥠󲦅󲥫󲥿󲥳󲦣󲦯 SOLENOID CUSHION

4 017401015 1

󲦘

󲦧󲦄󲆌󲆰󲆉󲆈 BOLT M4X10

5 025040236 1 󲦎󲦥

󲥲󲥨

󲦉󲥽󲦡󲥢󲆌 WASHER PLAIN M 4

6 SB1192001 2 󲥠󲦄󲦢󲦧󲦝

󲦘

󲥢󲦤󲥢

󲦒

󲥳󲦡 TENSION RELEASE BAR BUSH

7 SB1089001 1 󲥠󲦄󲦢󲦧󲦝

󲦘

󲥢 TENSION RELEASE BA

8 SB0787001 1 󲥹󲦨󲦊󲥠󲦅󲥧

󲦌

󲆅 SOLENOID COVE

9 060400516 2

󲦌

󲥠󲦯󲦅󲆌󲆰󲆍 SCREW BIND M4X5

10 021400306 1 󲆋󲥳󲦡󲦆󲥿󲦄󲆌 NUT 3 M4

KE-430F/BE-438F-406
