![Brother KE-430FX [37/68] N thread nipper mechanism](/img/pdf.png)
Brother KE-430FX [37/68] N thread nipper mechanism
![Brother KE-430FX [37/68] N thread nipper mechanism](/views2/1497382/page37/bg25.png)
32

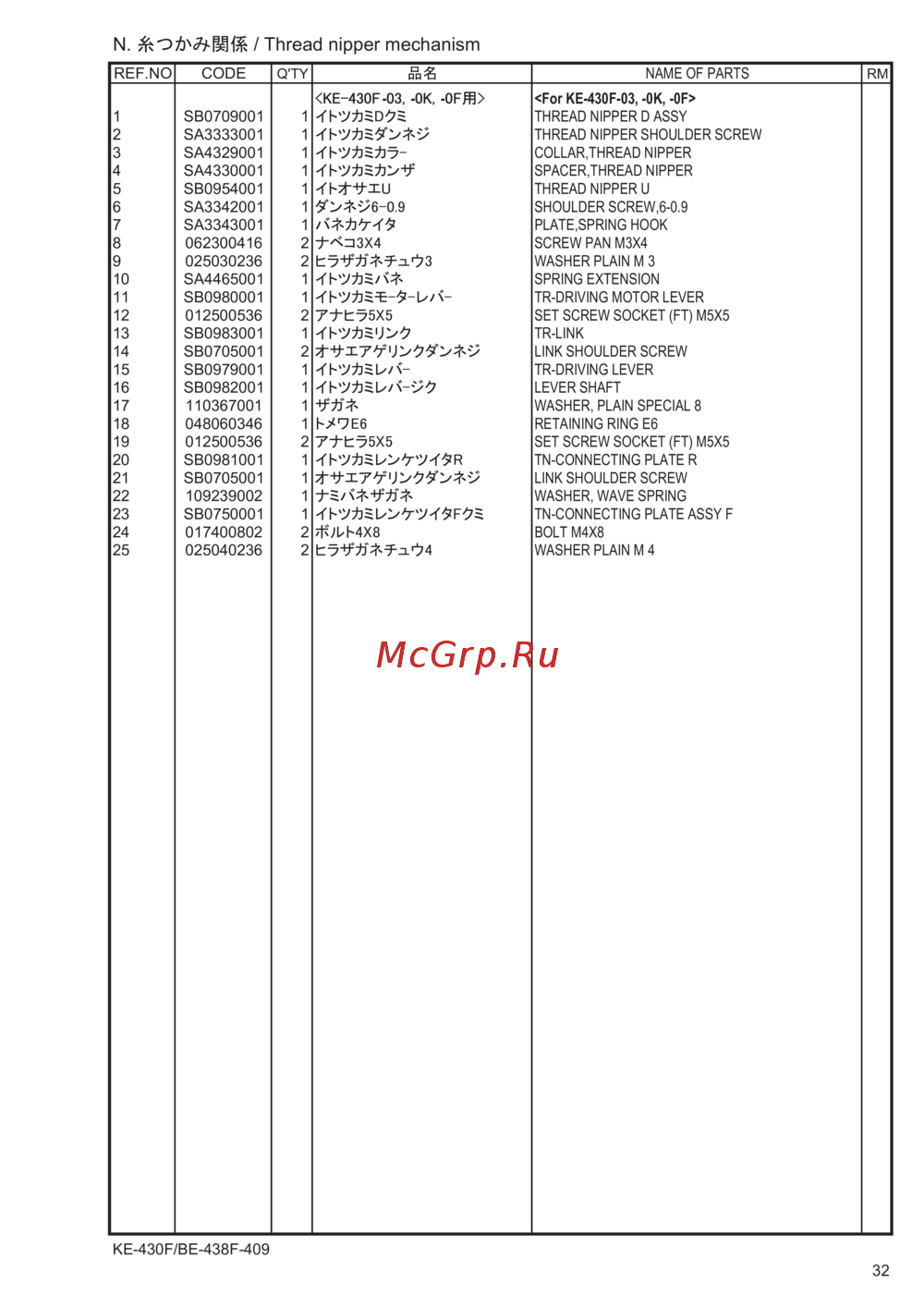

N. / Thread nipper mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
--- <For KE-430F-03, -0K, -0F>
1 SB0709001 1 THREAD NIPPER D ASS
Y
2 SA3333001 1
THREAD NIPPER SHOULDER SCRE
W
3 SA4329001 1 COLLAR,THREAD NIPPE
R
4 SA4330001 1
SPACER,THREAD NIPPE
R
5 SB0954001 1 THREAD NIPPER U
6 SA3342001 1
SHOULDER SCREW,6-0.9
7 SA3343001 1
PLATE,SPRING HOO
K
8 062300416 2 SCREW PAN M3X4
9 025030236 2
WASHER PLAIN M 3
10 SA4465001 1
SPRING EXTENSION
11 SB0980001 1
TR-DRIVING MOTOR LEVER
12 012500536 2 SET SCREW SOCKET (FT) M5X5
13 SB0983001 1 TR-LINK
14 SB0705001 2
LINK SHOULDER SCRE
W
15 SB0979001 1
TR-DRIVING LEVE
R
16 SB0982001 1
LEVER SHAFT
17 110367001 1
WASHER, PLAIN SPECIAL
8
18 048060346 1 RETAINING RING E6
19 012500536 2 SET SCREW SOCKET (FT) M5X5
20 SB0981001 1 TN-CONNECTING PLATE R
21 SB0705001 1
LINK SHOULDER SCRE
W
22 109239002 1
WASHER, WAVE SPRING
23 SB0750001 1 TN-CONNECTING PLATE ASSY F
24 017400802 2
BOLT M4X8
25 025040236 2
WASHER PLAIN M 4
KE-430F/BE-438F-409
32
