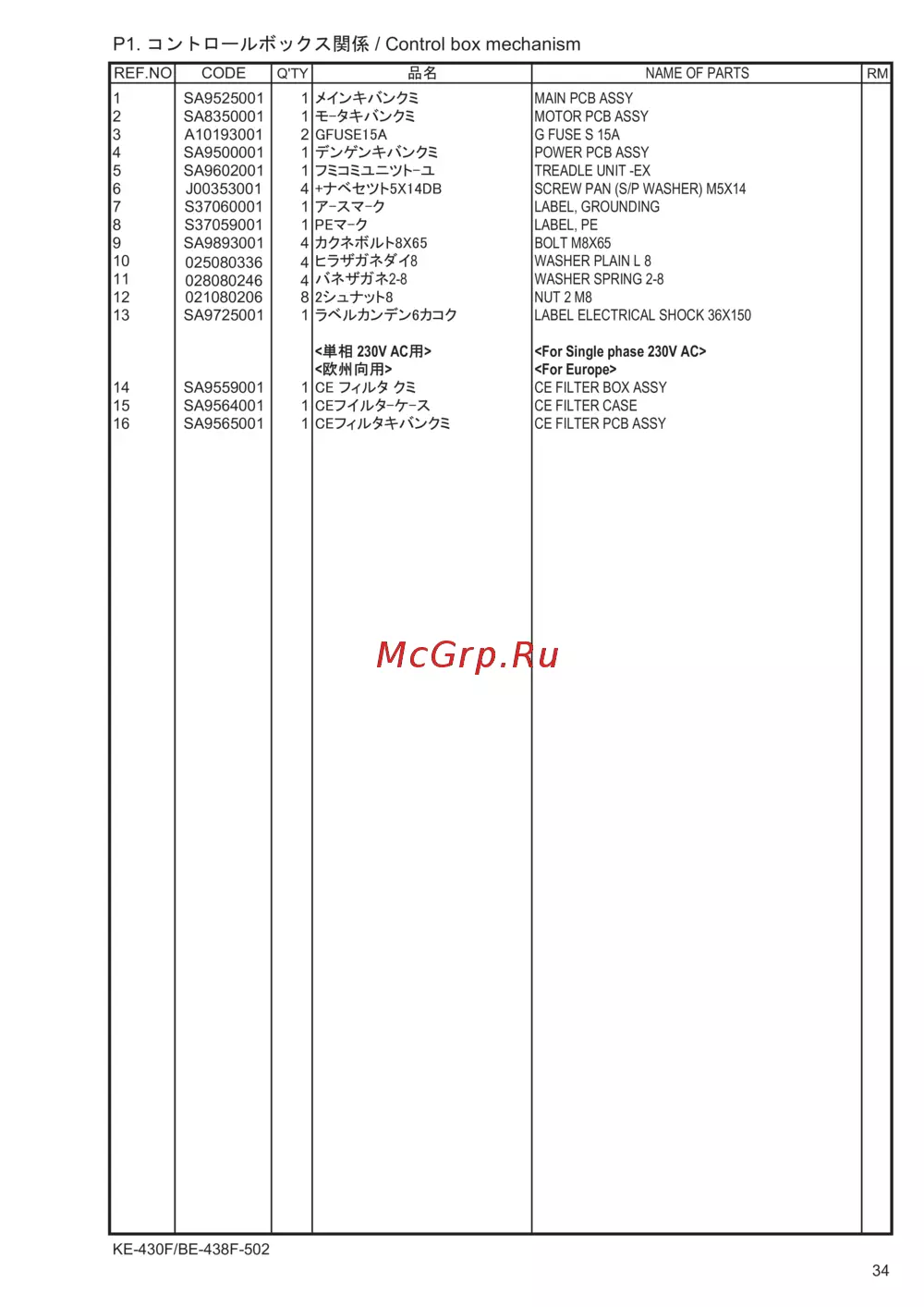

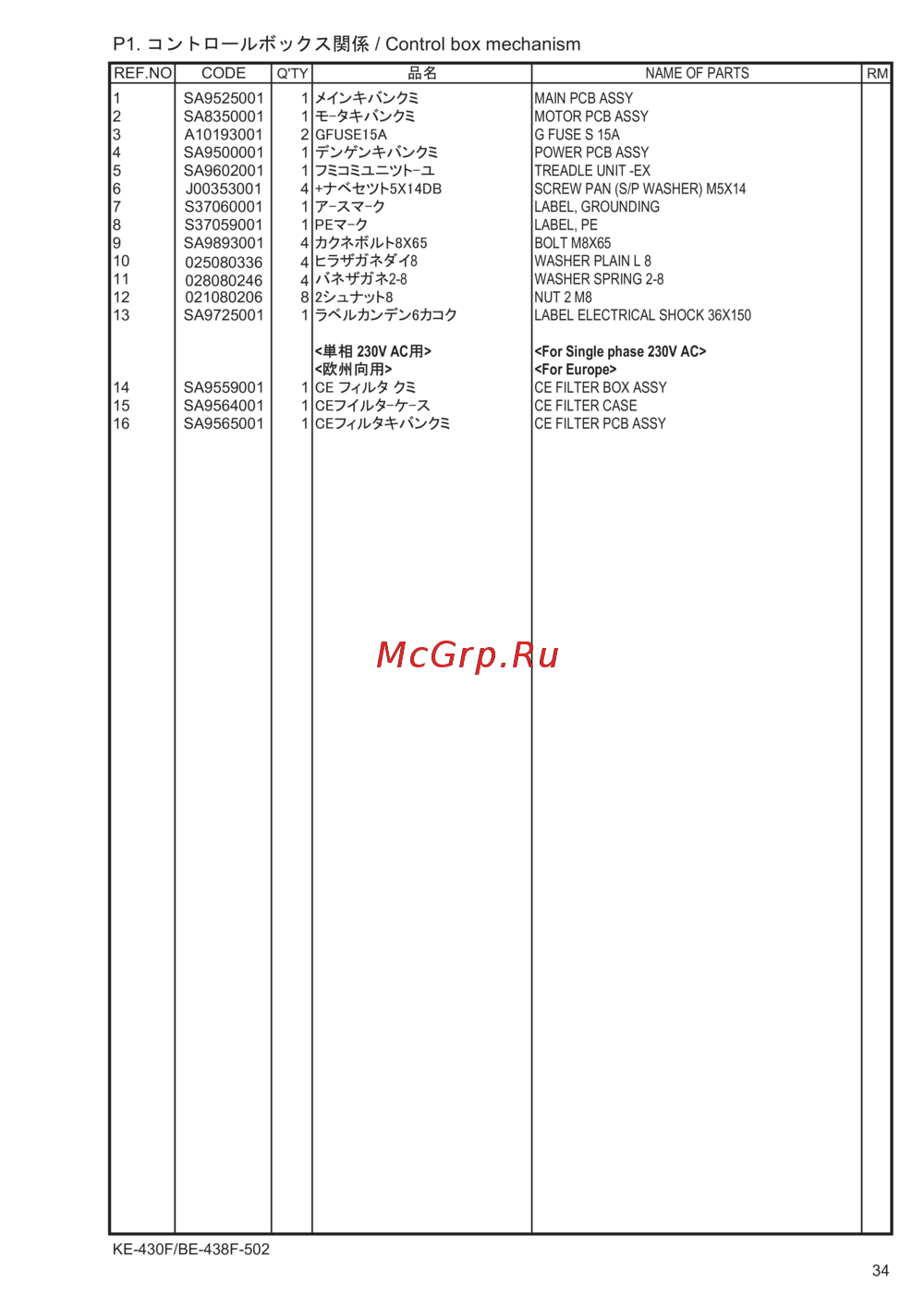

Brother KE-430FX [39/68] P1 control box mechanism
![Brother KE-430FX [39/68] P1 control box mechanism](/views2/1497382/page39/bg27.png)
34
P1. / Control box mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA9525001 1
MAIN PCB ASS
Y
2 SA8350001 1
MOTOR PCB ASS
Y
3
A
10193001 2 G FUSE S 15
A
4 SA9500001 1
POWER PCB ASS
Y
5 SA9602001 1 TREADLE UNIT -EX
6 J00353001 4 SCREW PAN (S/P WASHER) M5X14
7 S37060001 1 LABEL, GROUNDING
8 S37059001 1 LABEL, PE
9 SA9893001 4
BOLT M8X65
10
025080336 4
8 WASHER PLAIN L 8
11
028080246 4
2-8 WASHER SPRING 2-8
12 021080206 8 NUT 2 M8
13 SA9725001 1
LABEL ELECTRICAL SHOCK 36X150
< 230V AC> <For Single phase 230V AC>
<> <For Europe>
14 SA9559001 1 CE FILTER BOX ASS
Y
15 SA9564001 1 CE FILTER CASE
16 SA9565001 1
CE FILTER PCB ASS
Y
KE-430F/BE-438F-502
34
