Brother KE-430FX [40/68] P2 control box mechanism
![Brother KE-430FX [40/68] P2 control box mechanism](/views2/1497382/page40/bg28.png)
35

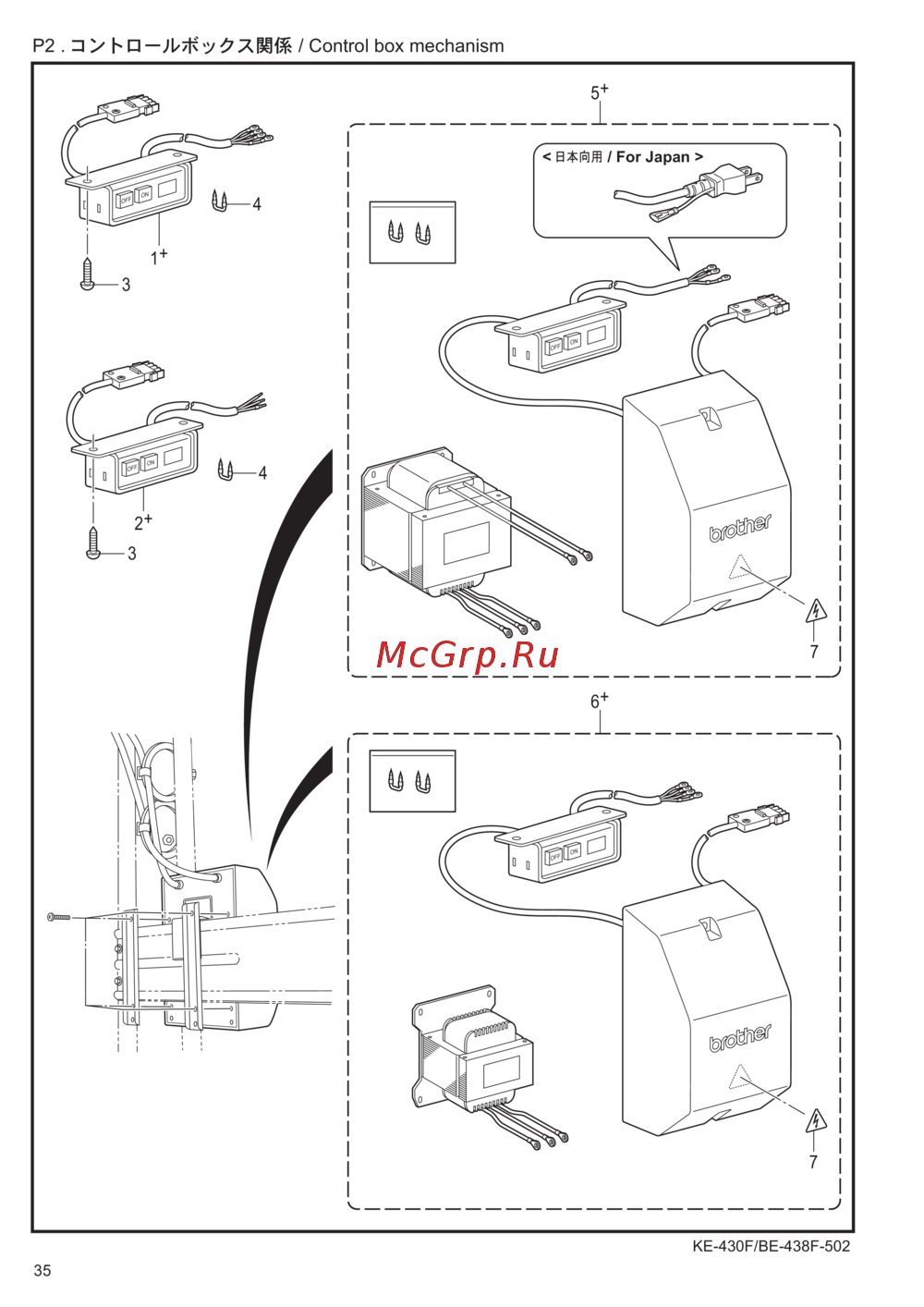

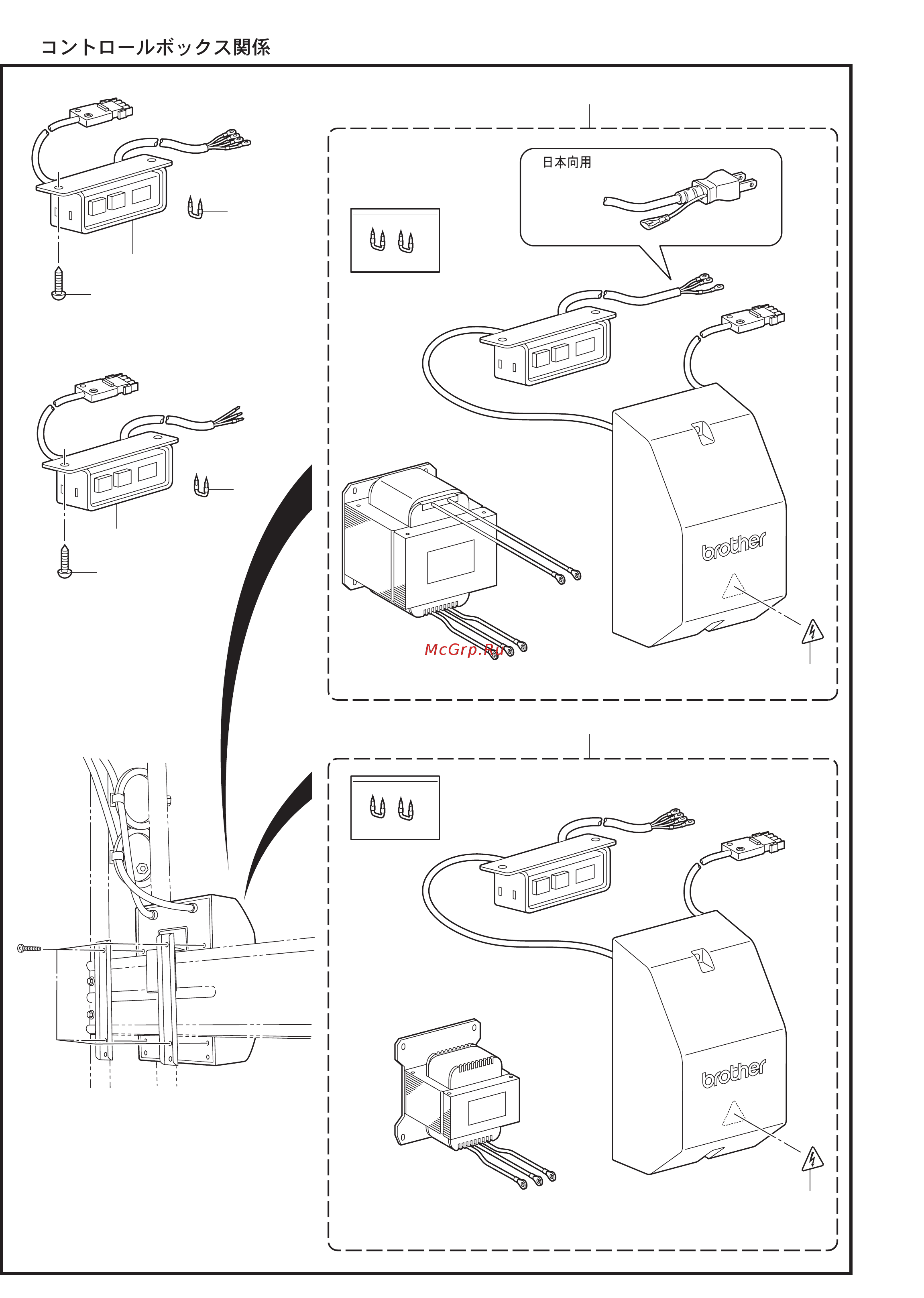

P2. / Control box mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
< 200V AC > <For Three phase 200V AC>
<> < For Japan >
1+ SA9616001 1
POWER SWITCH ASSY SJ
T
< 220V AC > <For Three phase 220V AC>
<> < For USA, Canada and Mexico >
1+ SA9831001 1
POWER SWITCH ASSY SJT#2
< 220V AC> <For Single phase 220V AC>
<
> < For Asia, General and Europe >
2+ SA9535001 1
POWER SUPPLY SWITCH ASSY CC
C
< 220V AC> <For Single phase 220V AC>
<> < For China >
2+ BMP3010-0000001-3S00 1
POWER SWITCH 220
V
3 S03816001 2 WOOD SCREW M4.5X16
4 200190001 2
STAPLE 10X20
< 100V> <For Single phase 100V>
<> < For Japan >
5+ SB1229001 1
TRANCE BOX 100V SUPPL
Y
<> < For USA, Canada and Mexico >
5+ BMP3010-0000000-2ST1 1
TRANSFORMER BOX
< 380V> <For Three phase 380V>
<
> < For General and Asia >
6+ BMP3010-0000000-3ST4 1
TRANSFORMER BOX
<> < For China >
6+ BMP3010-0000001-3ST4 1
TRANSFORMER BOX
< 400V> <For Three phase 400V>
<> <For Europe>
6+ BMP3010-0000000-4ST4 1
TRANSFORMER BOX
7 SA9914001 1
LABEL ELECTRICAL SHOCK 25 X 28
KE-430F/BE-438F-502
36
KE-430F/BE-438F-502
35
P2 . / Control box mechanism
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
O
F
F
O
N
< / For Japan >
