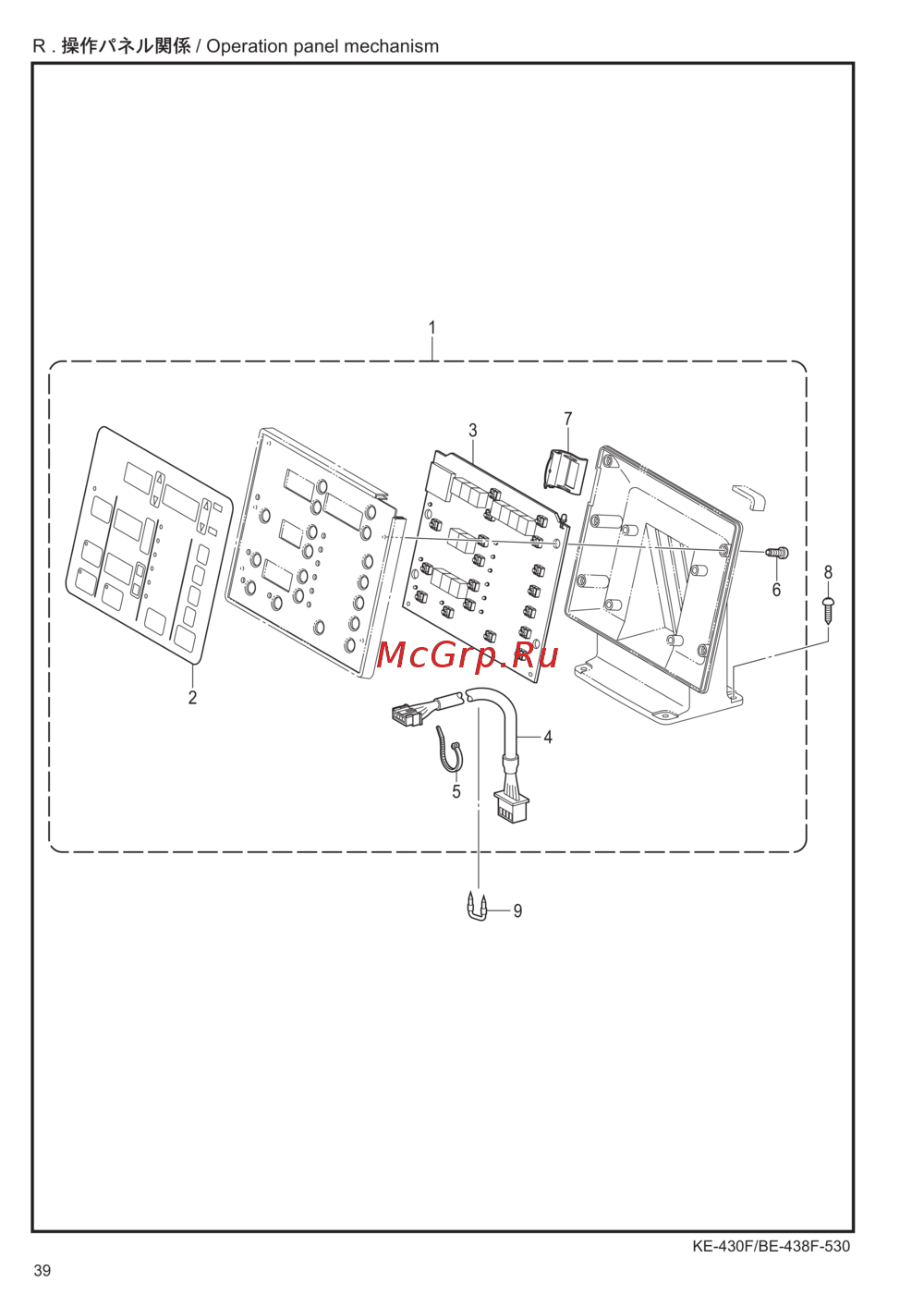

Brother KE-430FX [44/68] R operation panel mechanism

R. 󱭑 / Operation panel mechanism

REF.NO CODE Q'TY  NAME OF PARTS RM

1 SB0562001 1 󲥹󲥢󲥱󲦍󲦉󲦧󲥫󲦛 OPERATION PANEL ASS

2 SB0564001 1 󲥹󲥢󲥱󲦍󲦉󲦧󲥳󲆅󲦄 PANEL SHEE

3 SA9509001 1 󲦍󲦉󲦧󲥩

󲦌

󲦯󲥫󲦛 PANEL PCB ASS

4 SB0553001 1 󲦍󲦉󲦧󲦋󲆅󲦉󲥵 PANEL HARNESS

5 220681001 1 󲥭󲦀󲥹󲥫

󲦌

󲦯󲦅󲆊󲆆󲆊󲆰󲆐󲆍 CABLE TIE

6 085311016 5

󲦌

󲥠󲦯󲦅󲆚󲥻󲥠󲦄󲆋󲆰󲆉󲆈 TAPTITE BIND B M3X10

7 SB0566001 1 󲥧󲆅󲦅󲥧

󲦌

󲆅 CARD COVE

0B0452006

󲆃󲦚󲦧󲦞󲥫󲆌󲆍󲆰󲆊󲆈

WOOD SCREW ROUND M4.5X20

200190001

󲥵󲦂󲦀󲦓󲦧󲅸󲆉󲆈󲆰󲆊󲆈

STAPLE 10X20

KE-430F/BE-438F-530

R . / Operation panel mechanism
