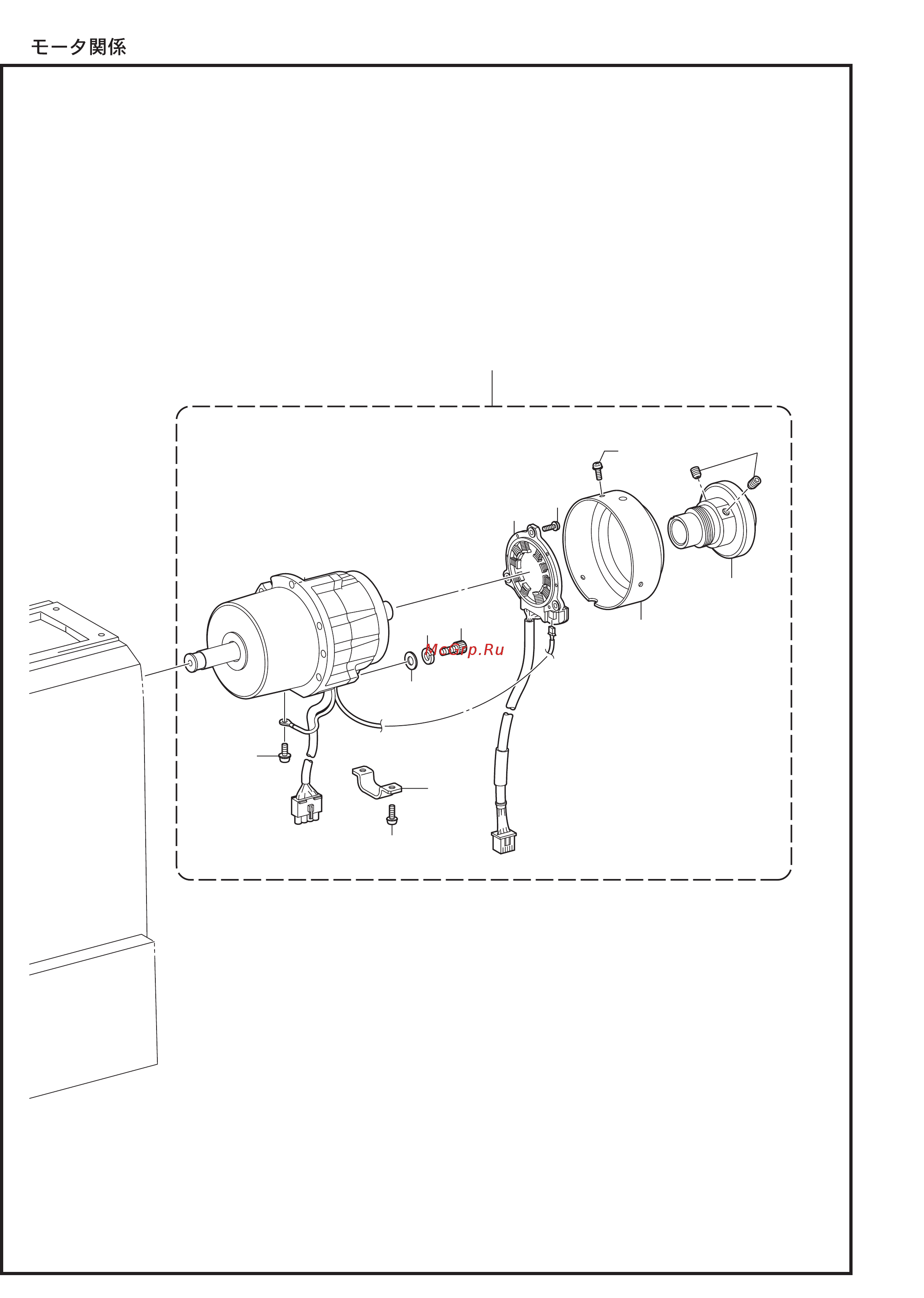

Brother KE-430FX [46/68] S motor mechanism
![Brother KE-430FX [46/68] S motor mechanism](/views2/1497382/page46/bg2e.png)
41

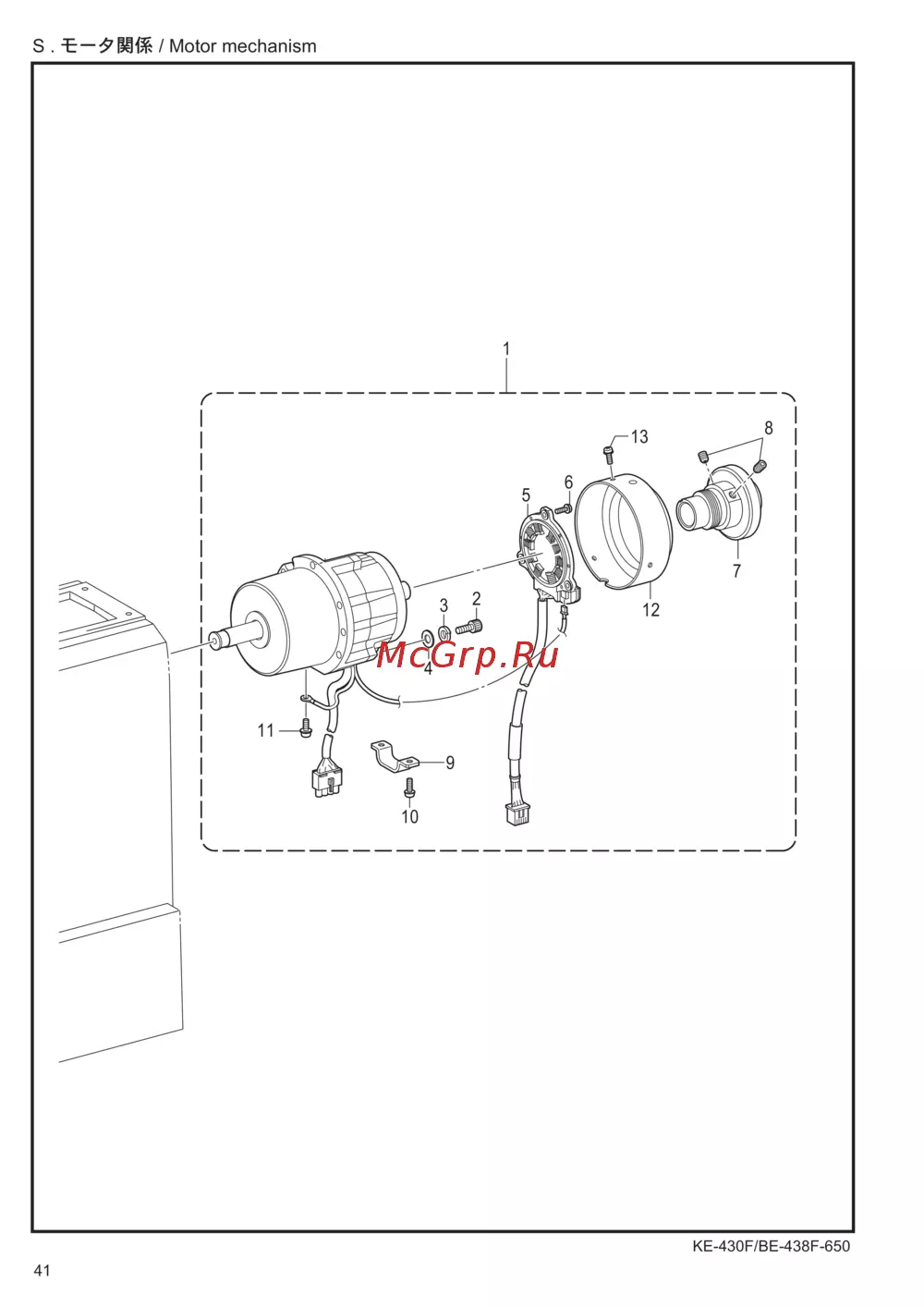

S. / Motor mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SB0752001 1 MOTOR 430 SUPPLY
2 018501632 3
BOLT SOCKET M5X16
3 028050247 3
WASHER SPRING 2-5
4 SA9436001 3
WASHER PLAIN 5
5 SB0347001 1
RESOLVER STATOR 430 ASS
Y
6 0A4301206 3
SCREW PAN (S/P WASHER) M3X12
7 SB0350001 1
PULLEY HOLDER L ASS
Y
8 012501032 2 SET SCREW SOCKET (FT) M5X10
9 SB0353001 1 CORD HOLDER L
10 0A4401006 2
SCREW PAN (S/P WASHER) M4X10
11 0A4401006 1
SCREW PAN (S/P WASHER) M4X10
12 SA9449001 1
RESOLVER COVE
R
13 0A4300806 1
SCREW PAN (S/P WASHER) M3X
8
KE-430F/BE-438F-650
42
KE-430F/BE-438F-650
41
S . / Motor mechanism
4
2
3
5
6
13
7
12
8
11
9
10
1
