46

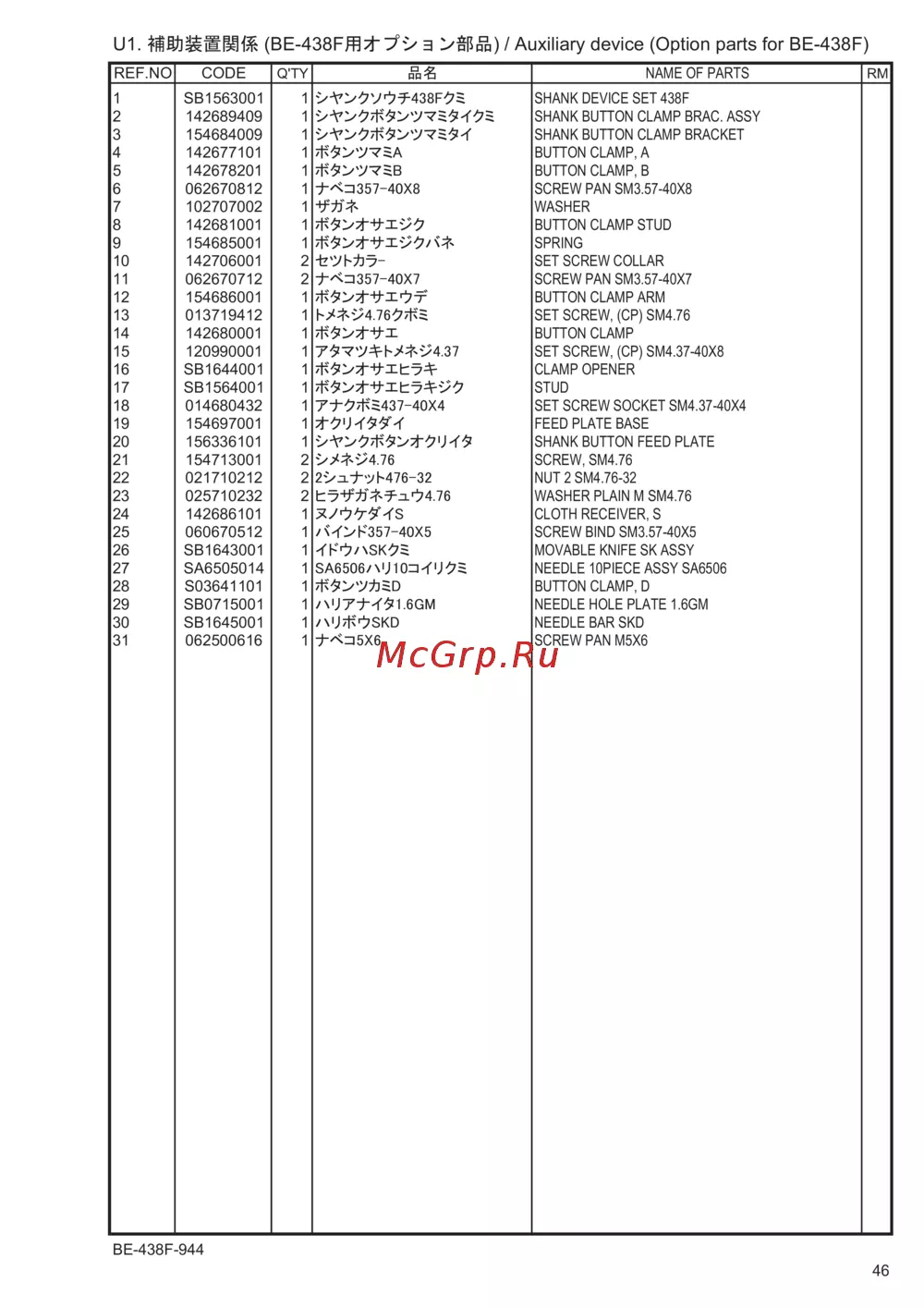

U1. (BE-438F) / Auxiliary device (Option parts for BE-438F)
REF.NO CODE Q'TY NAME OF PARTS RM
1 SB1563001 1 SHANK DEVICE SET 438F
2 142689409 1
SHANK BUTTON CLAMP BRAC. ASS
Y
3 154684009 1
SHANK BUTTON CLAMP BRACKE
T
4 142677101 1
BUTTON CLAMP,
A
5 142678201 1
BUTTON CLAMP, B
6 062670812 1 SCREW PAN SM3.57-40X8
7 102707002 1
WASHE
R
8 142681001 1
BUTTON CLAMP STUD
9 154685001 1
SPRING
10 142706001 2 SET SCREW COLLA
R
11 062670712 2 SCREW PAN SM3.57-40X7
12 154686001 1
BUTTON CLAMP ARM
13 013719412 1
SET SCREW, (CP) SM4.76
14 142680001 1
BUTTON CLAMP
15 120990001 1
SET SCREW, (CP) SM4.37-40X8
16 SB1644001 1
CLAMP OPENE
R
17 SB1564001 1
STUD
18 014680432 1
SET SCREW SOCKET SM4.37-40X4
19 154697001 1
FEED PLATE BASE
20 156336101 1
SHANK BUTTON FEED PLATE
21 154713001 2
SCREW, SM4.76
22 021710212 2 NUT 2 SM4.76-32
23 025710232 2
WASHER PLAIN M SM4.76
24 142686101 1
CLOTH RECEIVER, S
25 060670512 1
SCREW BIND SM3.57-40X5
26 SB1643001 1 MOVABLE KNIFE SK ASS
Y
27 SA6505014 1 NEEDLE 10PIECE ASSY SA650
6
28 S03641101 1
BUTTON CLAMP, D
29 SB0715001 1 NEEDLE HOLE PLATE 1.6GM
30 SB1645001 1
NEEDLE BAR SKD
31 062500616 1 SCREW PAN M5X6
BE-438F-944
46
