47

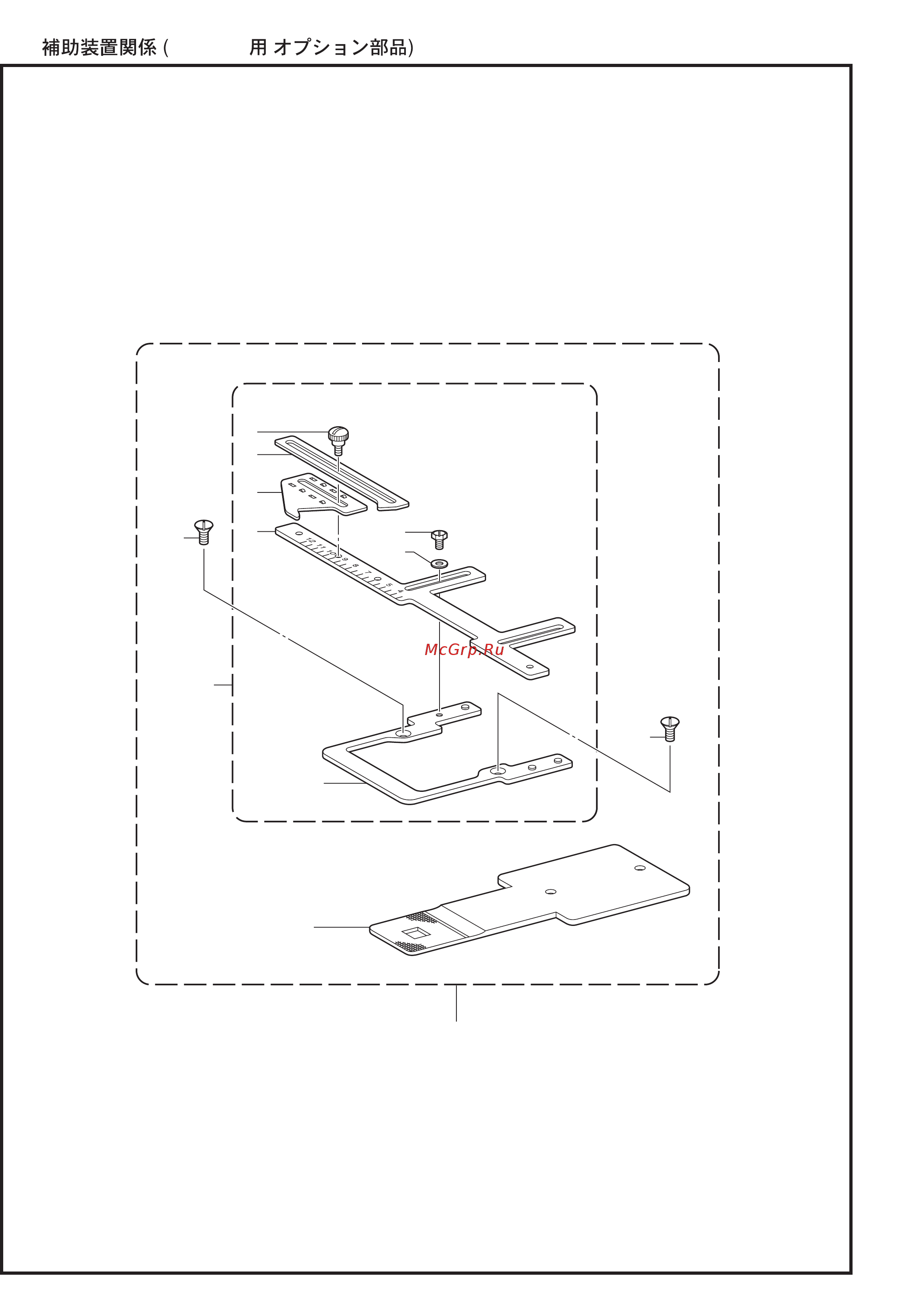

U2. (BE-438F) / Auxiliary device (Option parts for BE-438F)
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6156101 1
BUTTON SPACER SET 438D
2 SA6157101 1
BUTTON SPACER ASS
Y
3 SA6158101 1
BASE
4 S09658001 1 SCALE
5 S09686001 1
BOLT, SM4.37-40X7
6 S02745001 1
WASHE
R
7 S09659001 1
POSITIONING PLATE,
A
8 S09660001 1
POSITIONING PLATE, B
9 115166001 1
SHOULDER SCREW, SM4.37
10 S25310101 2
SCREW, FLAT M4
11 S13184001 1 FEED PLATE
BE-438F-944
48
47
BE-438F-944

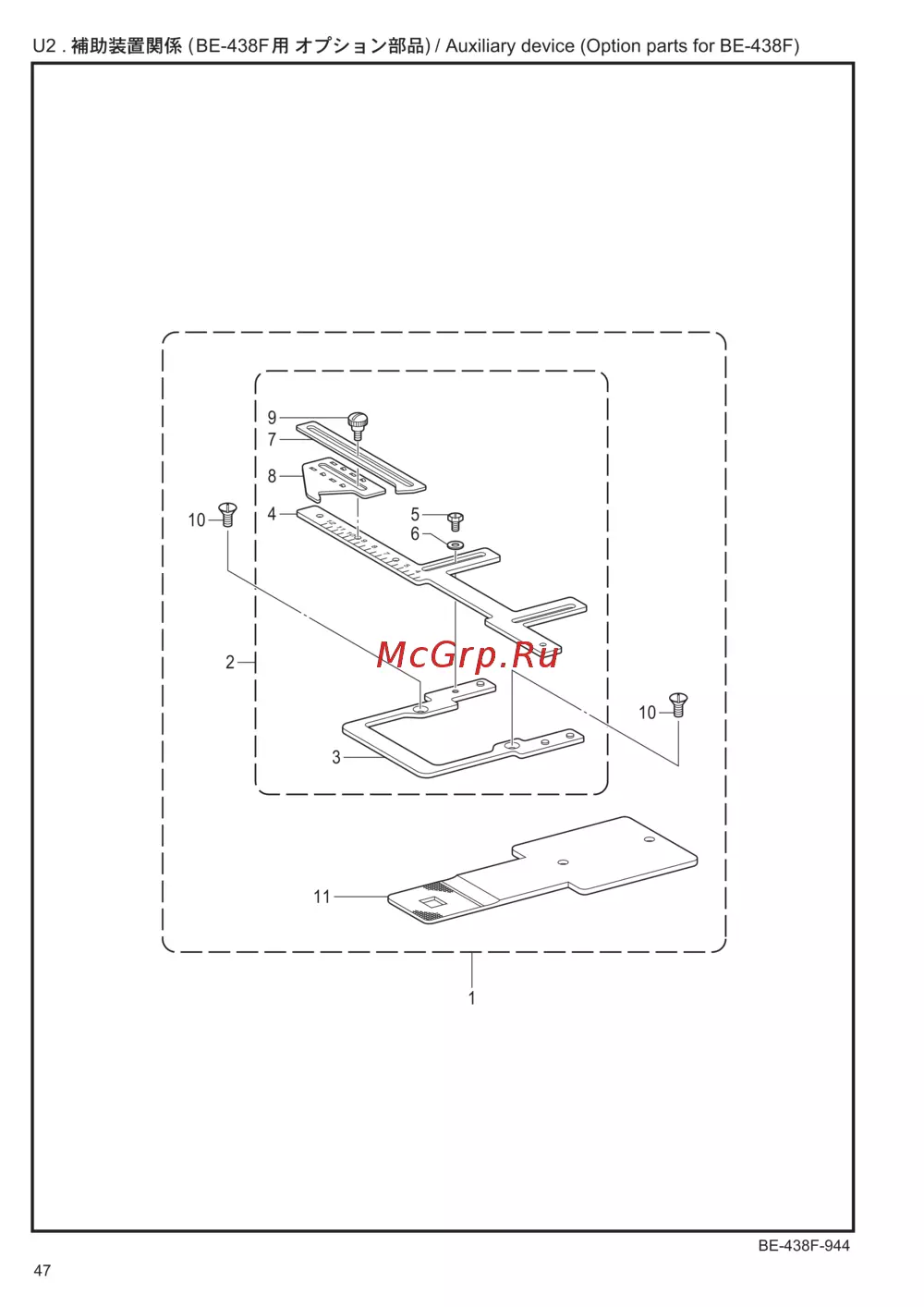

U2 . BE-438F / Auxiliary device (Option parts for BE-438F)
9
7
8
4
2
5
10
3
11
10
6
1
