![Brother KE-430FX [7/68] A machine body](/img/pdf.png)

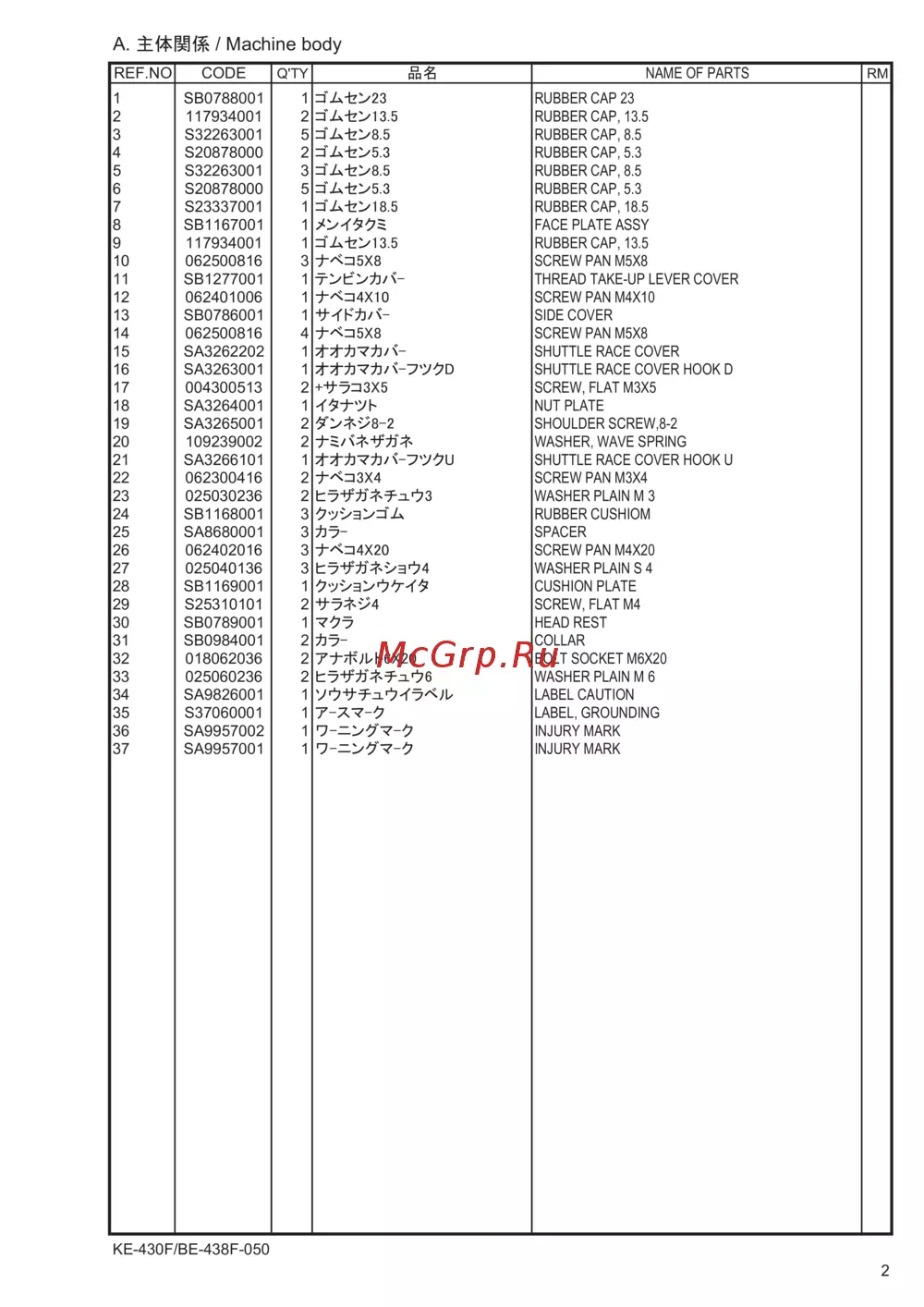

Brother KE-430FX [7/68] A machine body
![Brother KE-430FX [7/68] A machine body](/views2/1497382/page7/bg7.png)
2
A. / Machine body
REF.NO CODE Q'TY NAME OF PARTS RM
1 SB0788001 1
RUBBER CAP 23
2 117934001 2
RUBBER CAP, 13.5
3 S32263001 5
RUBBER CAP, 8.5
4 S20878000 2
RUBBER CAP, 5.3
5 S32263001 3
RUBBER CAP, 8.5
6 S20878000 5
RUBBER CAP, 5.3
7 S23337001 1
RUBBER CAP, 18.5
8 SB1167001 1 FACE PLATE ASS
Y
9 117934001 1
RUBBER CAP, 13.5
10 062500816 3 SCREW PAN M5X8
11 SB1277001 1
THREAD TAKE-UP LEVER COVE
R
12 062401006 1 SCREW PAN M4X10
13 SB0786001 1
SIDE COVE
R
14 062500816 4 SCREW PAN M5X8
15 SA3262202 1
SHUTTLE RACE COVE
R
16 SA3263001 1
SHUTTLE RACE COVER HOOK D
17 004300513 2 SCREW, FLAT M3X5
18 SA3264001 1 NUT PLATE
19 SA3265001 2
SHOULDER SCREW,8-2
20 109239002 2
WASHER, WAVE SPRING
21 SA3266101 1
SHUTTLE RACE COVER HOOK U
22 062300416 2 SCREW PAN M3X4
23 025030236 2
WASHER PLAIN M 3
24 SB1168001 3
RUBBER CUSHIOM
25 SA8680001 3 SPACE
R
26 062402016 3 SCREW PAN M4X20
27 025040136 3
WASHER PLAIN S 4
28 SB1169001 1 CUSHION PLATE
29 S25310101 2
SCREW, FLAT M4
30 SB0789001 1 HEAD RES
T
31 SB0984001 2 COLLAR
32 018062036 2
BOLT SOCKET M6X20
33 025060236 2
WASHER PLAIN M 6
34 SA9826001 1 LABEL CAUTION
35 S37060001 1 LABEL, GROUNDING
36 SA9957002 1
INJURY MAR
K
37 SA9957001 1
INJURY MAR
K
KE-430F/BE-438F-050
2
