Каталог запчастей Страница: 16

Brother KE-430HX NEXIO [16/65] C2 feed mechanism option parts

KE-430HX, 430HS-

202

KE-430HX,430HS-202

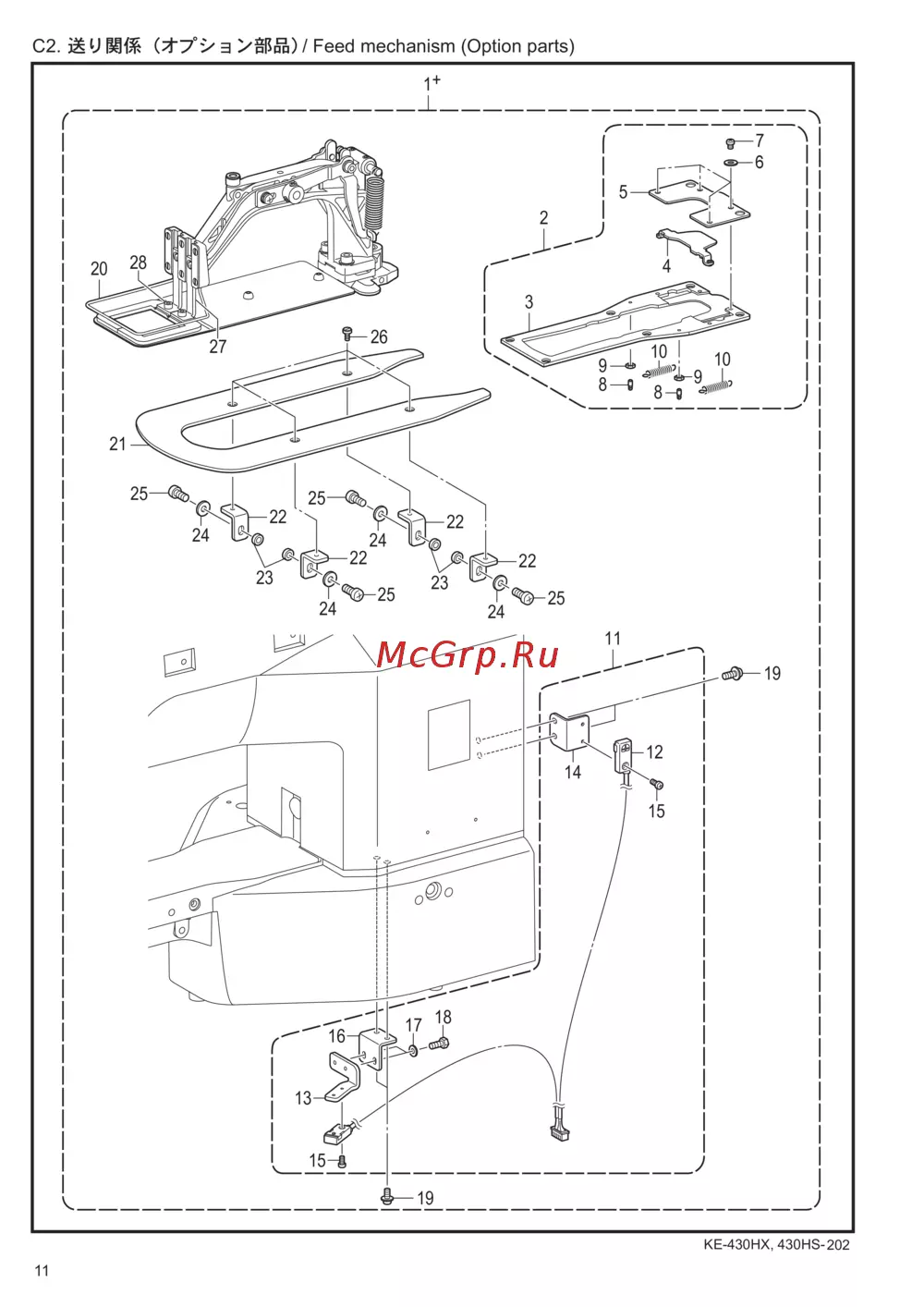

C2. / Feed mechanism (Option parts)
