Brother RH-9820-01/02 [102/118] Z accessories

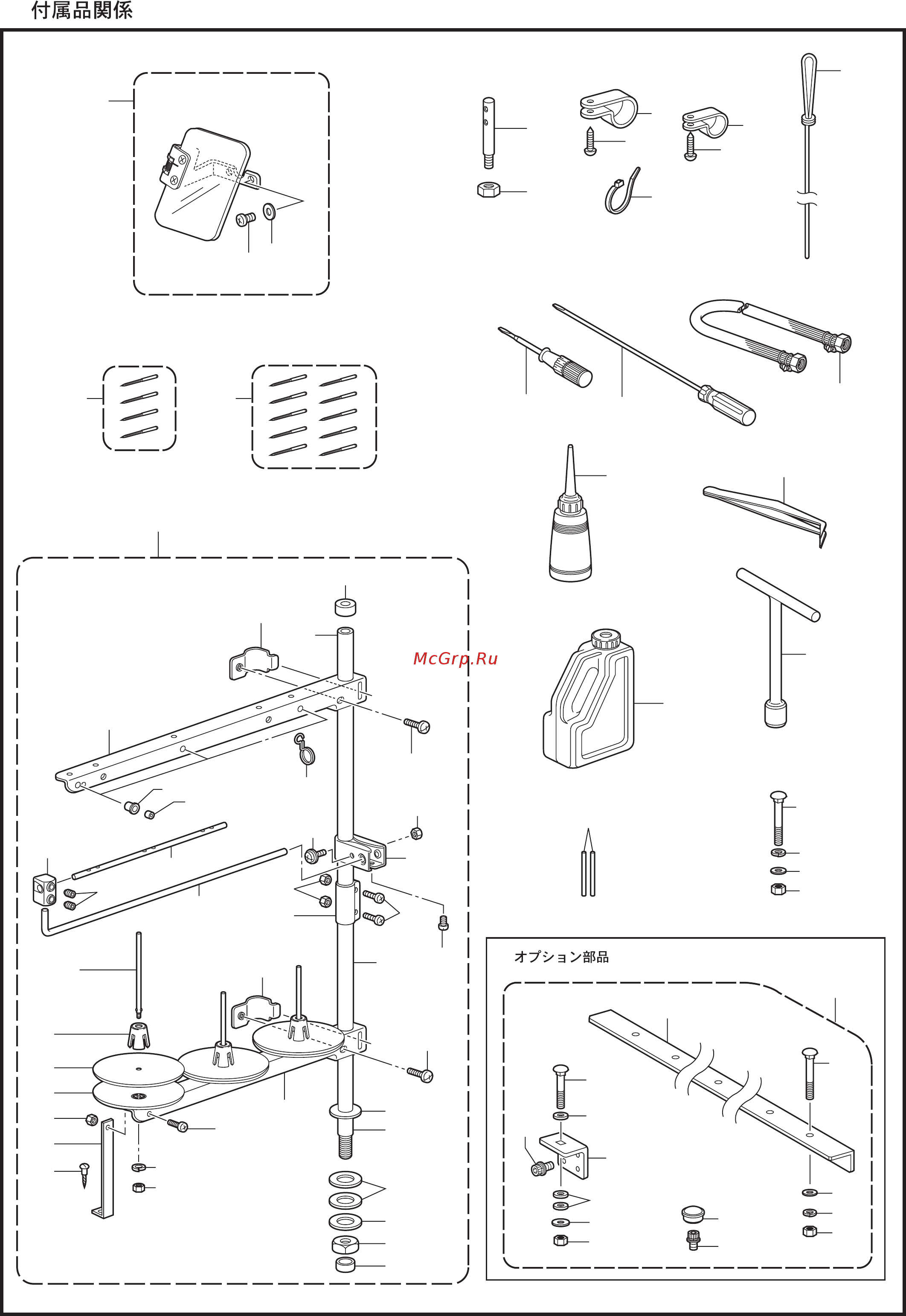

![Brother RH-9820-01/02 [102/118] Z accessories](/views2/1497396/page102/bg66.png)
97
Z. / Accessories
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5568001 1
THREAD SPOOL PIN
2 021500216 1 NUT 2 M5
3 S07558409 1
COTTON STAND ASSY 3DRTHF
4 S51283001 3
SPOOL STAND BASE
5 150182000 3
SPOOL MAT
6 S51282101 3
SPOOL CUSHION
7 S04109001 1
THREAD GUIDE SUPPORT BAR
8 142997001 1 THREAD GUIDE, 3
9 150206002 1
WASHER PLAIN 16
10 SA6629001 1 NUT M16
11 150174000 1
COLUMN CAP
12 S01005000 2
RUBBER WASHER
13 S02747101 1
SPRING
14 150172003 1
COLUMN PIPE
15 150174000 1
COLUMN CAP
16 156112003 1
COLUMN PIPE D
17 150207001 1
COLUMN PIPE W/SCREW
18 150206000 1
WASHER PLAIN 16
19 SA6606001 1
COLUMN JOINT
20 150179002 3
SPOOL SHAFT B
21 028050244 3
WASHER SPRING 2-5
22 021500104 3 NUT 1 M5
23 150188009 1
SPOOL HOLDER SUPPORT, A
24 SA6610001 1
SPOOL HOLDER 3
25 SA6610001 1
SPOOL HOLDER 3
26 150183000 3
THREAD HANGER BASE
27 142990001 3
THREAD BUSH
28 SA6609001 2
SPOOL HOLDER SUPPORTER
29 SA6615001 1
THREAD GUIDE HOLDER
30 138843001 1
JOINT
31 021500104 2 NUT 1 M5
32 062061604 2 SCREW PAN M6X16
33 062501404 2 SCREW PAN M5X14
34 014060632 2
SET SCREW SOCKET (CP) M6X6
35 021500104 1 NUT 1 M5
36 S37037001 1
SCREW PAN (S/P WASHER) M5X32
37 062061004 1 SCREW PAN M6X10
38 021500104 1 NUT 1 M5
39 031452204 1 WOOD SCREW ROUND M4.5X22
40 062501004 1 SCREW PAN M5X10
41 SA7037001 1 THREADER
42 149796001 1
A
IR HOSE, W/CONNECTOR
<Except for China>
<Schmet DO x 558>
<For -00>#100
43 SA1741016 1 NEEDLE 10PIECE ASSY, S35133
<For -01>#90
43 SA1741014 1 NEEDLE 10PIECE ASSY, S35133
<For -02>#110
43 SA1741018 1 NEEDLE 10PIECE ASSY, S35133
<For China>
<Organ Needle DO x 558-NY2>
<For -00>#100
43 SA4858016 1 NEEDLE 4PIECE ASSY, SA4857
<For -01>#90
43 SA4858014 1 NEEDLE 4PIECE ASSY, SA4857
<For -02>#110
43 SA4858018 1 NEEDLE 4PIECE ASSY, SA4857
RH-9820-910
98
97
RH-9820-910

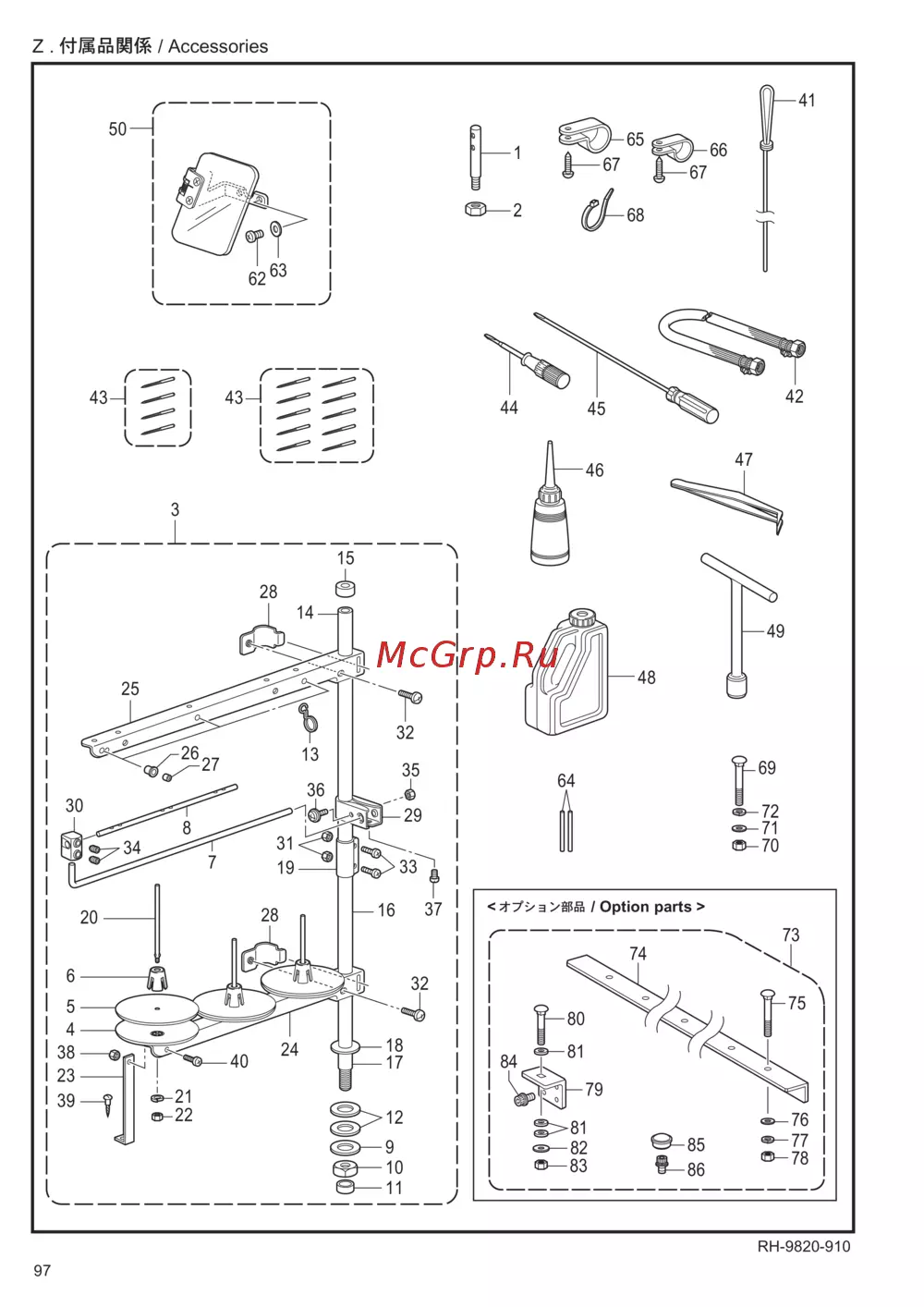

Z . / Accessories
< / Option parts >
