100

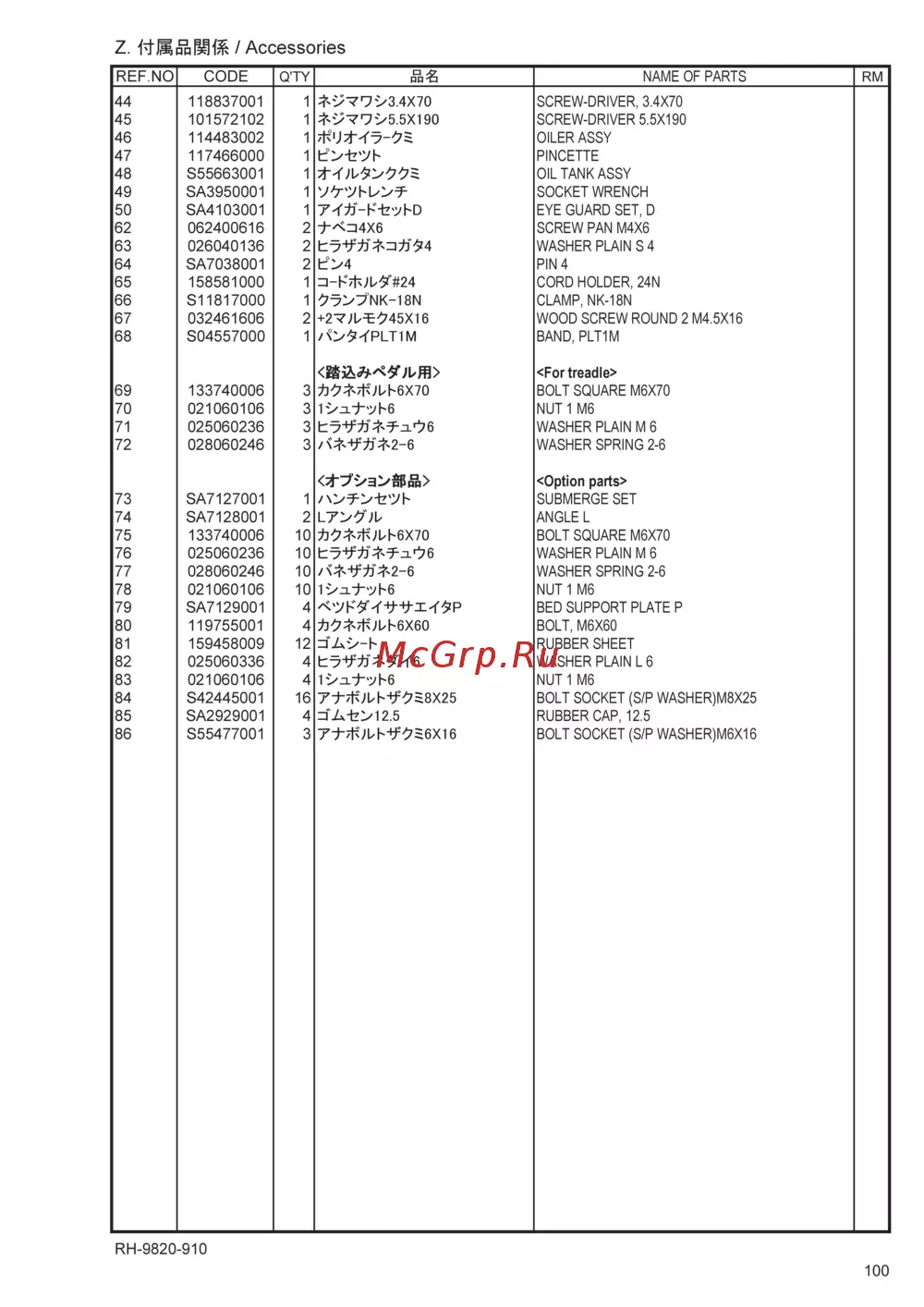

Z. / Accessories
REF.NO CODE Q'TY NAME OF PARTS RM
44 118837001 1
SCREW-DRIVER, 3.4X70
45 101572102 1
SCREW-DRIVER 5.5X190
46 114483002 1
OILER ASSY
47 117466000 1
PINCETTE
48 S55663001 1 OIL TANK ASSY
49 SA3950001 1 SOCKET WRENCH
50 SA4103001 1
EYE GUARD SET, D
62 062400616 2 SCREW PAN M4X6
63 026040136 2
WASHER PLAIN S 4
64 SA7038001 2
PIN 4
65 158581000 1
CORD HOLDER, 24N
66 S11817000 1
CLAMP, NK-18N
67 032461606 2 WOOD SCREW ROUND 2 M4.5X16
68 S04557000 1 BAND, PLT1M
<For treadle>
69 133740006 3
BOLT SQUARE M6X70
70 021060106 3 NUT 1 M6
71 025060236 3
WASHER PLAIN M 6
72 028060246 3
WASHER SPRING 2-6
<Option parts>
73 SA7127001 1 SUBMERGE SET
74 SA7128001 2
A
NGLE L
75 133740006 10
BOLT SQUARE M6X70
76 025060236 10
WASHER PLAIN M 6
77 028060246 10
WASHER SPRING 2-6
78 021060106 10 NUT 1 M6
79 SA7129001 4
BED SUPPORT PLATE P
80 119755001 4
BOLT, M6X60
81 159458009 12
RUBBER SHEET
82 025060336 4
WASHER PLAIN L 6
83 021060106 4 NUT 1 M6
84 S42445001 16
BOLT SOCKET (S/P WASHER)M8X25
85 SA2929001 4
RUBBER CAP, 12.5
86 S55477001 3
BOLT SOCKET (S/P WASHER)M6X16
RH-9820-910
