![Brother RH-9820-01/02 [11/118] B needle bar and thread take up m echanism](/img/pdf.png)
Brother RH-9820-01/02 [11/118] B needle bar and thread take up m echanism
![Brother RH-9820-01/02 [11/118] B needle bar and thread take up m echanism](/views2/1497396/page11/bgb.png)
6

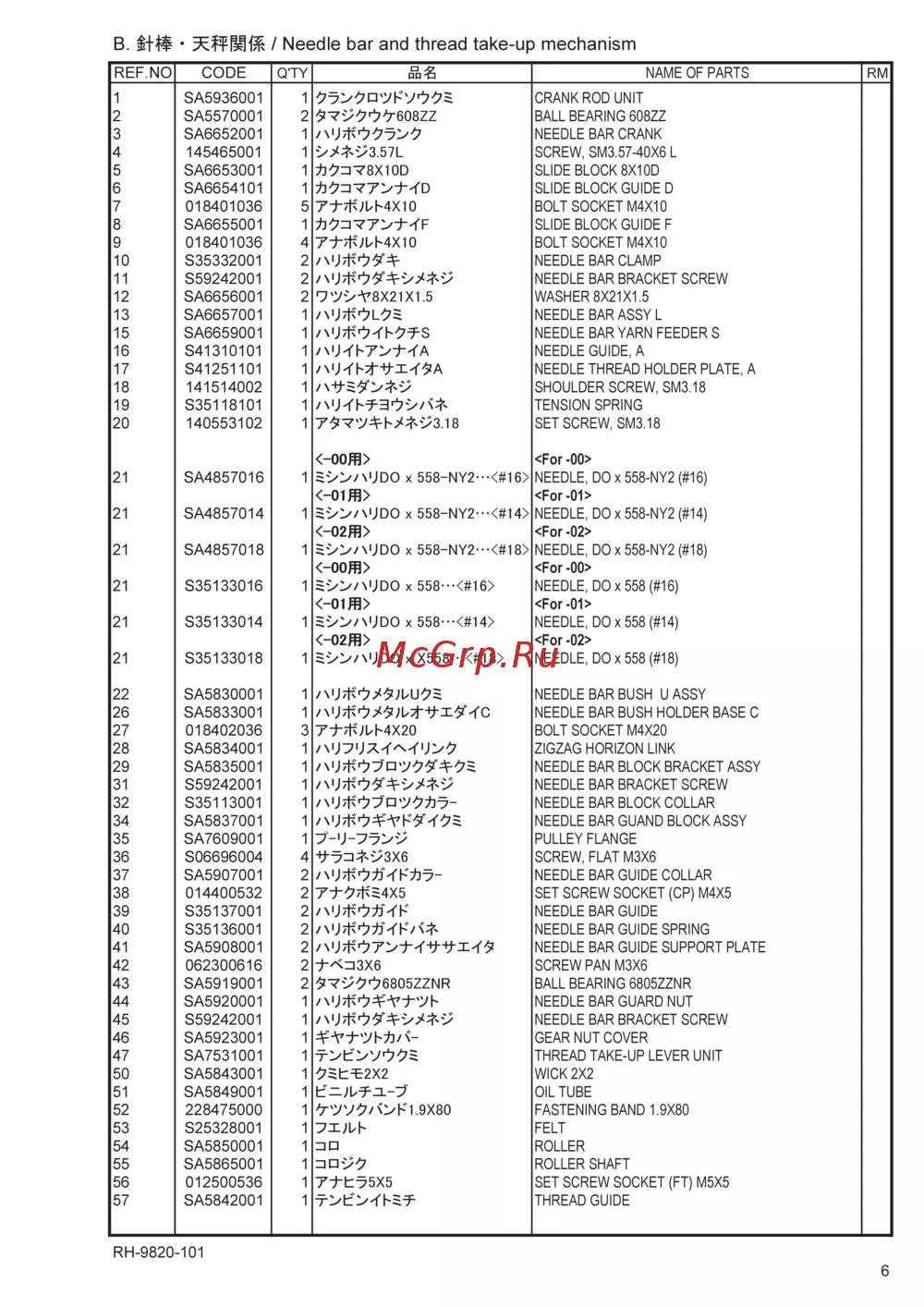

B. / Needle bar and thread take-up mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5936001 1 CRANK ROD UNIT
2 SA5570001 2
BALL BEARING 608ZZ
3 SA6652001 1
NEEDLE BAR CRANK
4 145465001 1
SCREW, SM3.57-40X6 L
5 SA6653001 1 SLIDE BLOCK 8X10D
6 SA6654101 1 SLIDE BLOCK GUIDE D
7 018401036 5
BOLT SOCKET M4X10
8 SA6655001 1 SLIDE BLOCK GUIDE F
9 018401036 4
BOLT SOCKET M4X10
10 S35332001 2
NEEDLE BAR CLAMP
11 S59242001 2
NEEDLE BAR BRACKET SCREW
12 SA6656001 2 WASHER 8X21X1.5
13 SA6657001 1
NEEDLE BAR ASSY L
15 SA6659001 1
NEEDLE BAR YARN FEEDER S
16 S41310101 1 NEEDLE GUIDE, A
17 S41251101 1 NEEDLE THREAD HOLDER PLATE, A
18 141514002 1
SHOULDER SCREW, SM3.18
19 S35118101 1
TENSION SPRING
20 140553102 1
SET SCREW, SM3.18
<For -00>
21 SA4857016 1 NEEDLE, DO x 558-NY2 (#16)
<For -01>
21 SA4857014 1 NEEDLE, DO x 558-NY2 (#14)
<For -02>
21 SA4857018 1 NEEDLE, DO x 558-NY2 (#18)
<For -00>
21 S35133016 1 NEEDLE, DO x 558 (#16)
<For -01>
21 S35133014 1 NEEDLE, DO x 558 (#14)
<For -02>
21 S35133018 1 NEEDLE, DO x 558 (#18)
22 SA5830001 1
NEEDLE BAR BUSH U ASSY
26 SA5833001 1
NEEDLE BAR BUSH HOLDER BASE C
27 018402036 3
BOLT SOCKET M4X20
28 SA5834001 1 ZIGZAG HORIZON LIN
K
29 SA5835001 1
NEEDLE BAR BLOCK BRACKET ASSY
31 S59242001 1
NEEDLE BAR BRACKET SCREW
32 S35113001 1
NEEDLE BAR BLOCK COLLAR
34 SA5837001 1
NEEDLE BAR GUAND BLOCK ASSY
35 SA7609001 1
PULLEY FLANGE
36 S06696004 4
SCREW, FLAT M3X6
37 SA5907001 2
NEEDLE BAR GUIDE COLLAR
38 014400532 2
SET SCREW SOCKET (CP) M4X5
39 S35137001 2
NEEDLE BAR GUIDE
40 S35136001 2
NEEDLE BAR GUIDE SPRING
41 SA5908001 2
NEEDLE BAR GUIDE SUPPORT PLATE
42 062300616 2 SCREW PAN M3X6
43 SA5919001 2
BALL BEARING 6805ZZNR
44 SA5920001 1
NEEDLE BAR GUARD NUT
45 S59242001 1
NEEDLE BAR BRACKET SCREW
46 SA5923001 1
GEAR NUT COVER
47 SA7531001 1
THREAD TAKE-UP LEVER UNIT
50 SA5843001 1 WICK 2X2
51 SA5849001 1
OIL TUBE
52 228475000 1
FASTENING BAND 1.9X80
53 S25328001 1 FELT
54 SA5850001 1 ROLLER
55 SA5865001 1
ROLLER SHAFT
56 012500536 1 SET SCREW SOCKET (FT) M5X5
57 SA5842001 1
THREAD GUIDE
RH-9820-101
6
