![Brother RH-9820-01/02 [12/118] B needle bar and thread take up mechanism](/img/pdf.png)
Brother RH-9820-01/02 [12/118] B needle bar and thread take up mechanism
![Brother RH-9820-01/02 [12/118] B needle bar and thread take up mechanism](/views2/1497396/page12/bgc.png)
7

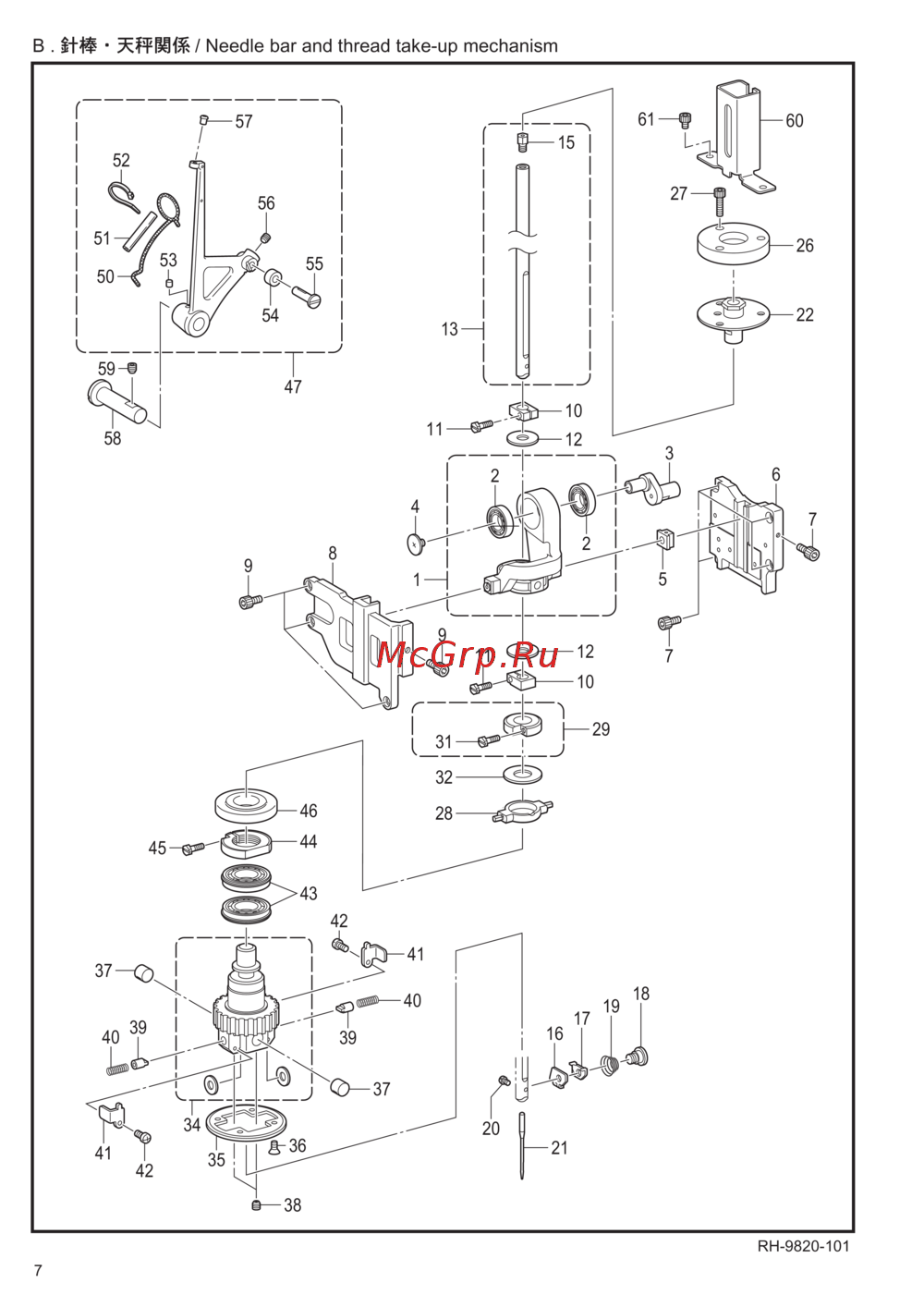

B. / Needle bar and thread take-up mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
58 SA5880001 1
THREAD TAKE-UP L SUPPORT SHAFT
59 014060636 1
SET SCREW SOCKET (CP) M6X6
60 SA5889001 1
NEEDLE BAR GUARD
61 018400636 2
BOLT SOCKET M4X6
RH-9820-101
8
7
RH-9820-101
B . / Needle bar and thread take-up mechanism
3
6
29
26
60
13
22
31
32
28
27
61
10
12
15
57
1
11
59
51
50
4
11
9
7
2
56
53
55
52
2
47
58
54
5
7
21
36
37
38
41
40
12
10
46
44
43
37
45
16
17
19
18
39
40
42
8
9
20
42
41
35
34
39
