9

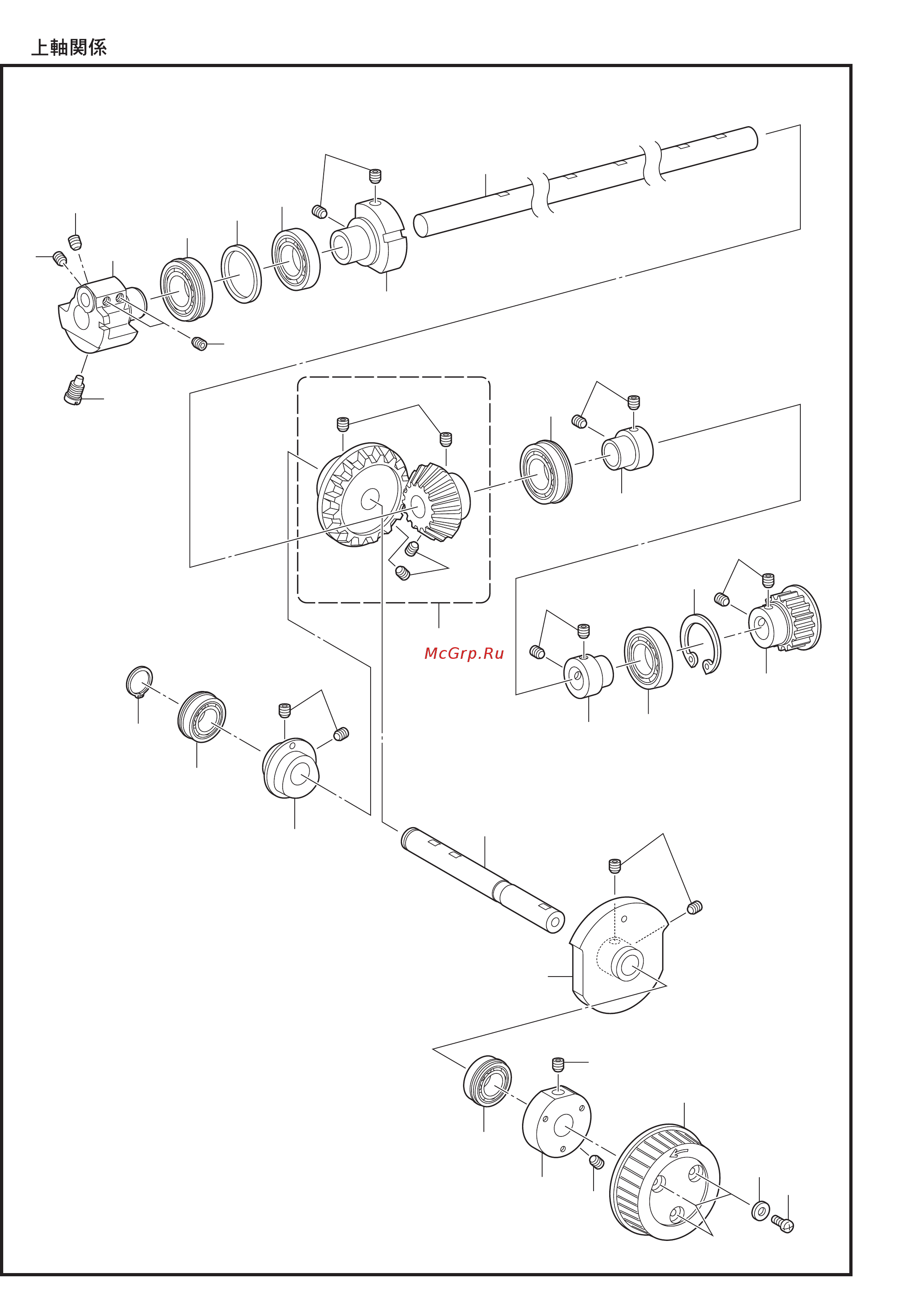

C. / Upper shaft mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5890001 1
UPPER SHAFT
2 SA5893001 1
UPPER SHAFT CRANK
3 SA5571001 1
BALL BEARING 6004ZZNR
4 S23651001 4 SET SCREW SOCKET (FT) M6X6
5 S25235001 1
SCREW M8
6 SA5897001 1
SPACER 34X42
7 SA6661001 1
BALANCE COLLAR
8 SA5572001 1
BALL BEARING 6004ZZ
9 S23651001 2 SET SCREW SOCKET (FT) M6X6
10 SA6662001 1
HYPOID GEAR ASSY
11 S23651001 4 SET SCREW SOCKET (FT) M6X6
12 SA5573001 1
BALL BEARING 6204ZZNR
13 SA5564001 1
BEARING COLLAR
14 S23651001 2 SET SCREW SOCKET (FT) M6X6
15 SA6667001 1
BALL BEARING 6304ZZ
16 SA5564001 1
BEARING COLLAR
17 S23651001 2 SET SCREW SOCKET (FT) M6X6
18 SA5549001 1
TIMING PULLEY ASSY
19 S23651001 2 SET SCREW SOCKET (FT) M6X6
20 048520242 1 RETAINING RING INTERNAL C52
21 SA6668001 1
ORTHOGONAL SHAFT
22 SA6669001 1
BALL BEARING 6202DDUNR
23 SA6671001 1
CAM ROLLER TAKE-UP
24 S23651001 2 SET SCREW SOCKET (FT) M6X6
25 SA6673001 1 ZIGZAG CAM
26 S23651001 2 SET SCREW SOCKET (FT) M6X6
27 SA6674001 1
BALL BEARING 6002ZZNR
28 048150142 1
RETAINING RING EXTERNAL C15
29 SA4629001 1
PULLEY BASE
30 S23651001 2 SET SCREW SOCKET (FT) M6X6
31 SA6676001 1
PULLEY
32 062401016 3 SCREW PAN M4X10
33 SA5158101 3
WASHER PLAIN L 4
RH-9820-109
10
9
RH-9820-109
C . / Upper shaft mechanism
3
6
1
20
12
18
16
15
11
11
19
27
22
25
28
10
30
23
31
33
32
21
24
30
29
26
5
4
4
4
2
8
7
9
13
14
17
