12

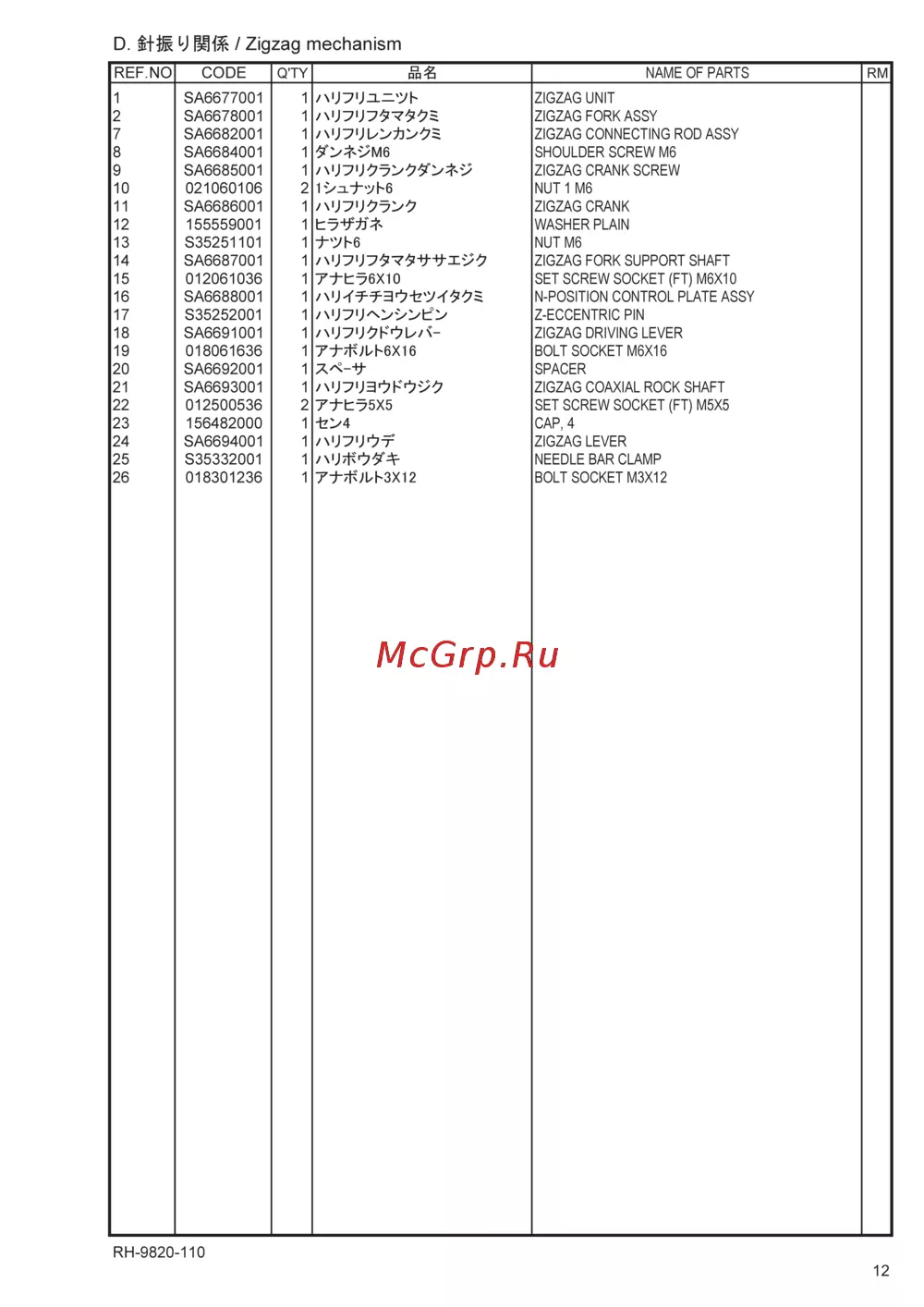

D. / Zigzag mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6677001 1 ZIGZAG UNIT
2 SA6678001 1 ZIGZAG FORK ASSY
7 SA6682001 1 ZIGZAG CONNECTING ROD ASSY
8 SA6684001 1
SHOULDER SCREW M6
9 SA6685001 1
ZIGZAG CRANK SCREW
10 021060106 2 NUT 1 M6
11 SA6686001 1 ZIGZAG CRANK
12 155559001 1
WASHER PLAIN
13 S35251101 1 NUT M6
14 SA6687001 1
ZIGZAG FORK SUPPORT SHAFT
15 012061036 1 SET SCREW SOCKET (FT) M6X10
16 SA6688001 1 N-POSITION CONTROL PLATE ASSY
17 S35252001 1
Z-ECCENTRIC PIN
18 SA6691001 1
ZIGZAG DRIVING LEVER
19 018061636 1
BOLT SOCKET M6X16
20 SA6692001 1 SPACER
21 SA6693001 1
ZIGZAG COAXIAL ROCK SHAFT
22 012500536 2 SET SCREW SOCKET (FT) M5X5
23 156482000 1 CAP, 4
24 SA6694001 1
ZIGZAG LEVER
25 S35332001 1
NEEDLE BAR CLAMP
26 018301236 1
BOLT SOCKET M3X12
RH-9820-110
12
