15

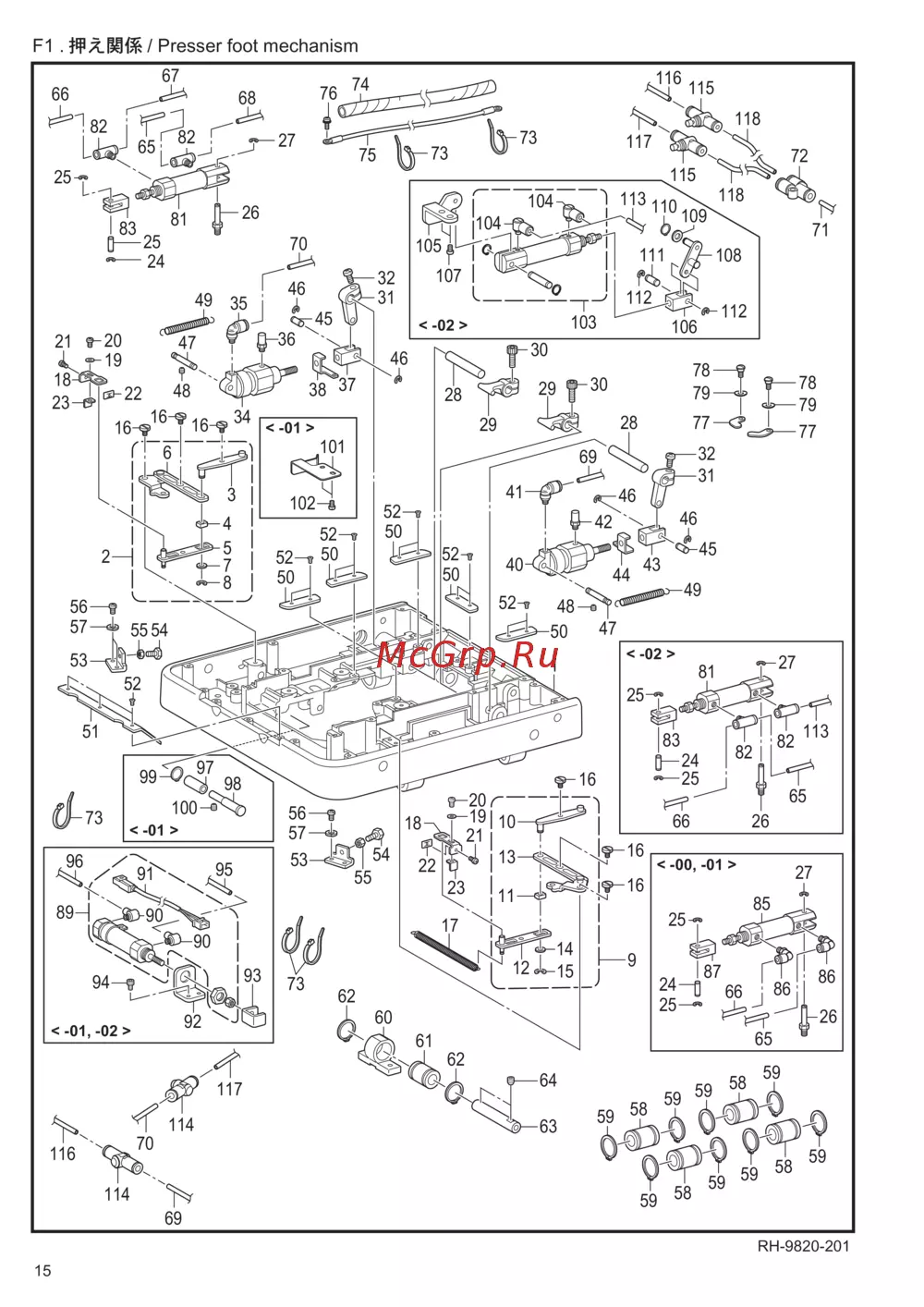

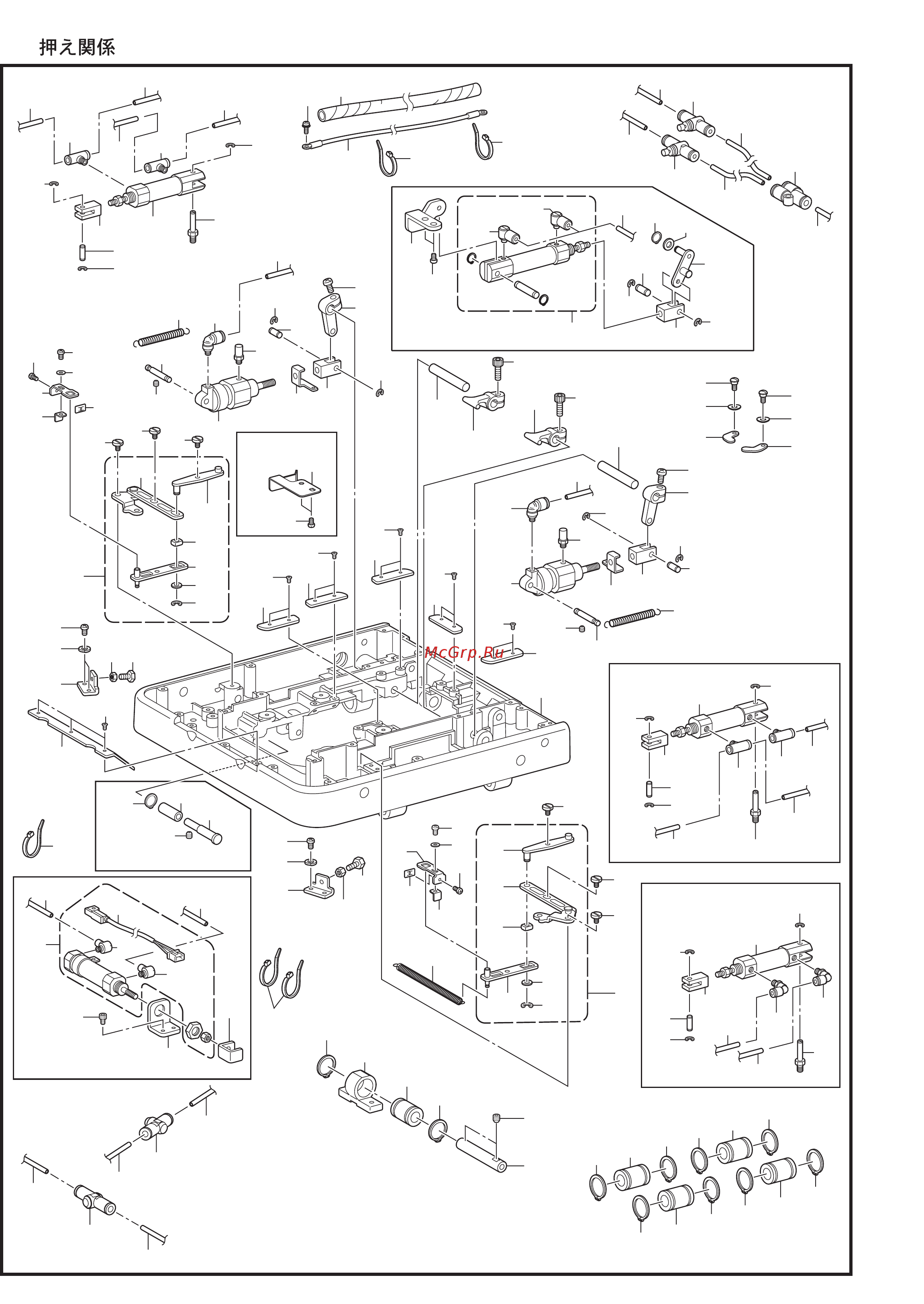

F1. / Presser foot mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -00, -01 & -02>
1 SA5690001 1
FEED BAR
2 SA5677001 1 OPENING CONNECTING ROD ASSY L
3 SA7176001 1
FULCRUM LEVER PLATE
4 102630001 1
NEEDLE BAR GUIDE SLIDE BLOCK
5 SA5557001 1
ROCKER LEVER
6 SA5579001 1
OPENING DRIVING LEVER ASSY L
7 109763002 1
WASHER
8 048050342 1 RETAINING RING E5
9 SA5678001 1 OPENING CONNECTING ROD ASSY R
10 SA7176001 1
FULCRUM LEVER PLATE
11 102630001 1
NEEDLE BAR GUIDE SLIDE BLOCK
12 SA5557001 1
ROCKER LEVER
13 SA5578001 1
OPENING DRIVING LEVER ASSY R
14 109763002 1
WASHER
15 048050342 1 RETAINING RING E5
16 SA7527001 6
SHOULDER SCREW M5
17 S35429101 1
EXTENSION SPRING
18 SA5583001 2 STOPPER PLATE OPENING
19 026040236 2
WASHER PLAIN M 4
20 062400816 2 SCREW PAN M4X8
21 062301016 2 SCREW PAN M3X10
22 S34968000 2
SPEED NUT M3
23 S35328001 2 STOPPER PLATE
24 S34969001 2
ROD PIN, B :CYLINDER
25 048030342 4 RETAINING RING E3
26 SA5584001 2
CYLINDER SCREW
27 048050142 2
RETAINING RING EXTERNAL C5
28 S35239101 2
CLAMP LEVER SHAFT
29 S35240001 2
CLAMP LEVER, B
30 018501236 2
BOLT SOCKET M5X12
31 SA5582001 2
CLAMP DRIVING LEVER
32 062501202 2 SCREW PAN M5X12
34 S35350000 1
CYLINDER 16X10
35 S53488000 1
JOINT
36 S13955000 1
A
IR BOLSTER
37 SA5558001 1
CLAMP CYLINDER ROD
38 S35457001 1
SPRING HOOK, L
40 S35350000 1
CYLINDER 16X10
41 S53488000 1
JOINT
42 S13955000 1
A
IR BOLSTER
43 SA5558001 1
CLAMP CYLINDER ROD
44 S35458001 1
SPRING HOOK, R
45 S35305001 2
CYLINDER ROD PIN
46 048030342 4 RETAINING RING E3
47 S35304001 2
CLAMP CYLINDER SUPPORT
48 014400532 2
SET SCREW SOCKET (CP) M4X5
49 S35456101 2
SPRING
50 SA5675001 5
GUIDE PLATE A
51 SA5676001 1
GUIDE PLATE B
52 S06696004 13
SCREW, FLAT M3X6
53 S35327001 2
OPENING CYLINDER STOPPER
54 017401616 2
BOLT M4X16
55 021400202 2 NUT 2 M4
56 062400816 4 SCREW PAN M4X8
57 028040242 4
WASHER SPRING 2-4
58 S12004000 4
LINEAR BUSH
59 S02460001 8
RETAINING RING, EXTERNAL C19
60 SA5692001 1
Y
BEARING
61 S12004000 1
LINEAR BUSH
62 S02460001 2
RETAINING RING, EXTERNAL C19
63 SA5691001 1
Y
GUIDE SHAFT
64 012500536 2 SET SCREW SOCKET (FT) M5X5
RH-9820-201
16
15
RH-9820-201
F1 . / Presser foot mechanism
< -02 >
< -02 >
< -00, -01 >
< -01 >
