![Brother RH-9820-01/02 [22/118] Rh 9820 201](/img/pdf.png)
Brother RH-9820-01/02 [22/118] Rh 9820 201
![Brother RH-9820-01/02 [22/118] Rh 9820 201](/views2/1497396/page22/bg16.png)
17
F1. / Presser foot mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
65 SA5681001 1
A
IR TUBE 4X2.5-24
66 SA5682001 1
A
IR TUBE 4X2.5-23
67 SA5683001 1
A
IR TUBE 4X2.5-15
68 SA5684001 1
A
IR TUBE 4X2.5-16
69 SA7973001 1
A
IR TUBE 4X2.5-21
70 SA7974001 1
A
IR TUBE 4X2.5-22
71 SA7975001 1
A
IR TUBE 4X2.5-18
72 S12104000 1 UNION Y4
73 S04557000 5 BAND, PLT1M
74 SA5688101 1 SPIRAL L
75 SA5435001 1 GROUND WIRE 550
76 052400606 1
SCREW, PAN (S/P WASHER) M4X6
77 SA6727001 2
PLATE PRESSER
78 S35324201 2
SHOULDER SCREW M4
79 S36345000 2
WASHER, BENDING
<For -00 & -01>
81 SA7043001 1
CYLINDER ASSY T 16X15
82 SA1828001 2
JOINT, KQ2T04-M5
83 S34970001 1
CYLINDER ROD OPENING
85 SA7050001 1
CYLINDER ASSY L 16X15
86 S11426000 2
ELBOW UNION 4M5
87 S34970001 1
CYLINDER ROD OPENING
<For -01 & -02>
89 SA5679001 1
CYLINDER ASSY B 16X30
90 S12150000 2
TUBE ELBOW, M-5HL-4
91 SA6527001 1 LOWER OFF SENSOR ASSY
92 S34914101 1
T-TRIM. CYLINDER SUPPORT PLATE
93 S34913001 1
THREAD TRIMMER CYLINDER CLAW
94 018400836 2
BOLT SOCKET M4X8
95 SA5680001 1
A
IR TUBE 4X2.5-19
96 SA5561001 1
A
IR TUBE 4X2.5-20
<For -01>
97 SA7053001 1 G-THREAD TAKE-UP GUIDE COLLER
98 SA7054001 1
G-THREAD TAKE-UP GUIDE SHAFT
99 048050142 1
RETAINING RING EXTERNAL C5
100 014400532 1
SET SCREW SOCKET (CP) M4X5
101 SA7555001 1
FEED BAR PLATE SPRING
102 062400816 2 SCREW PAN M4X8
<For -02>
81 SA7043001 2
CYLINDER ASSY T 16X15
82 SA1828001 4
JOINT, KQ2T04-M5
83 S34970001 2
CYLINDER ROD OPENING
103 SA6719001 1
CYLINDER ASSY 10X15
104 S12150000 2
TUBE ELBOW, M-5HL-4
105 SA6720001 1
A
UX CLAMP S HOLDER
106 S35351001 1
CYLINDER ROD
107 062400816 2 SCREW PAN M4X8
108 SA6721001 1
A
UX CLAMP CONNECTING ROD ASSY
109 025060236 1
WASHER PLAIN M 6
110 048060142 1
RETAINING RING EXTERNAL C6
111 SA6726001 1
CYLINDER ROD PIN
112 048030342 2 RETAINING RING E3
113 SA7131001 2
A
IR TUBE 4X2.5-150
114 SA7795001 2
QUICK EXHAUST
115 SA7793001 2
SPEED CONTROLLER
116 SA7976001 1
A
IR TUBE 4X2.5-25
117 SA7977001 1
A
IR TUBE 4X2.5-26
118 SA7978001 2
A
IR TUBE 4X2.5-27
RH-9820-201
18
17
RH-9820-201

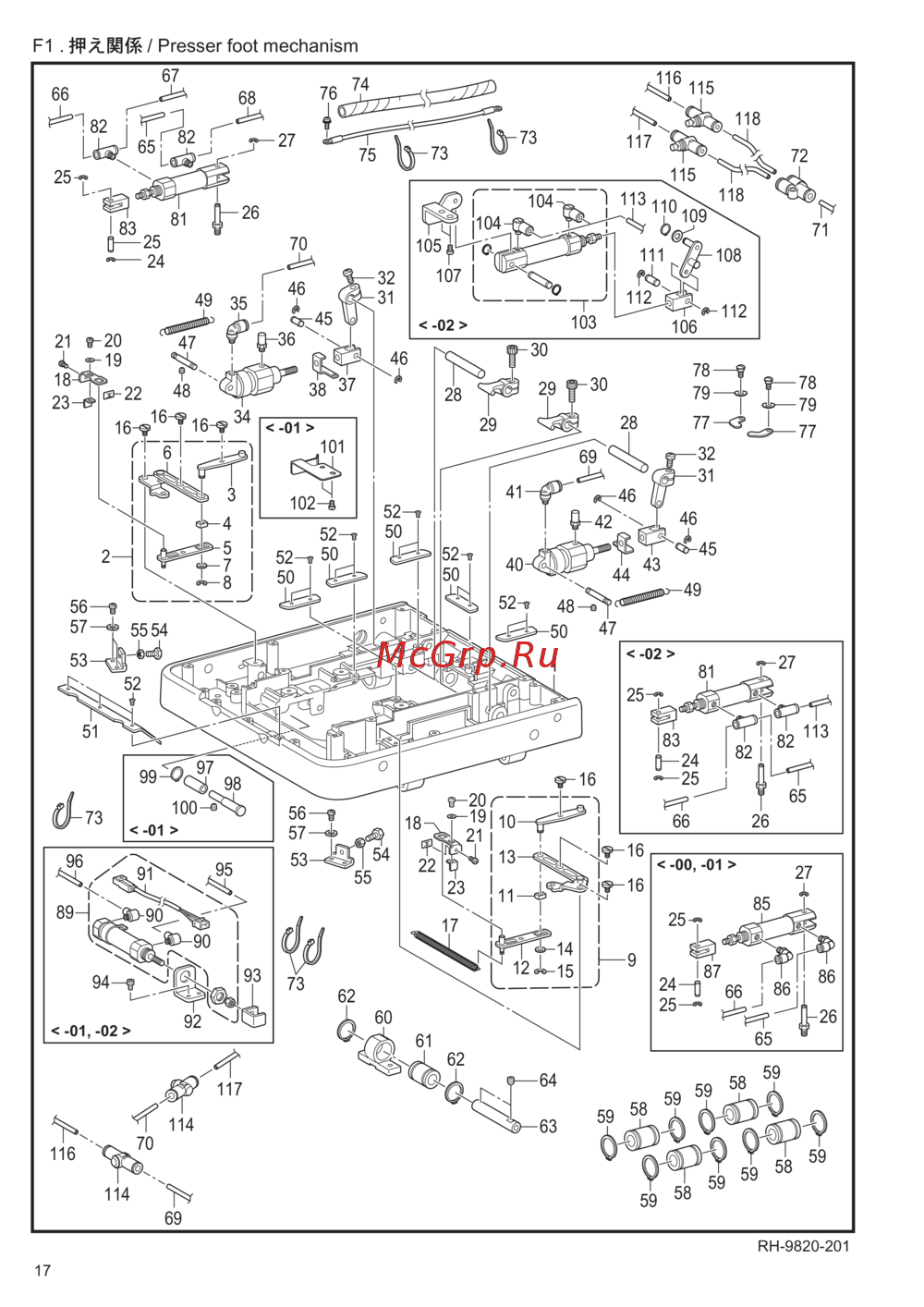

F1 . / Presser foot mechanism
< -02 >
< -02 >
< -00, -01 >
< -01 >
< -01, -02 >
< -01 >
78
108
112
73
73
73
79
77
78
79
77
4
32
45
31
30
30
5
22
7
8
13
24
25
10
12
17
11
16
16
40
25
48
41
104
104
25
31
32
45
49
16
16
2
23
18
52
52
52
102
53
53
56
56
100
99
57
18
83
14
21
23
22
73
50
50
52
50
55 54
19
90
20
50
42
19
20
15
25
16
16
9
24
27
46
6
21
46
35
46
46
101
74
76
111
113
110
109
47
49
28
29
28
103
107
105
106
112
117
115
118
71
29
54
55
3
43
44
47
51
82
66
65
26
113
82
27
26
25
24
82
66
82
81
65
83
61
62
62
58
59
59
58
59
59
58
59
93
92
116
114
114
69
70
117
91
59
58
59
59
60
63
26
64
81
36
37
75
38
34
48
52
50
67
68
70
69
85
66
25
115
118
72
86
86
87
65
96
116
95
98
97
52
90
57
94
89
27
1
