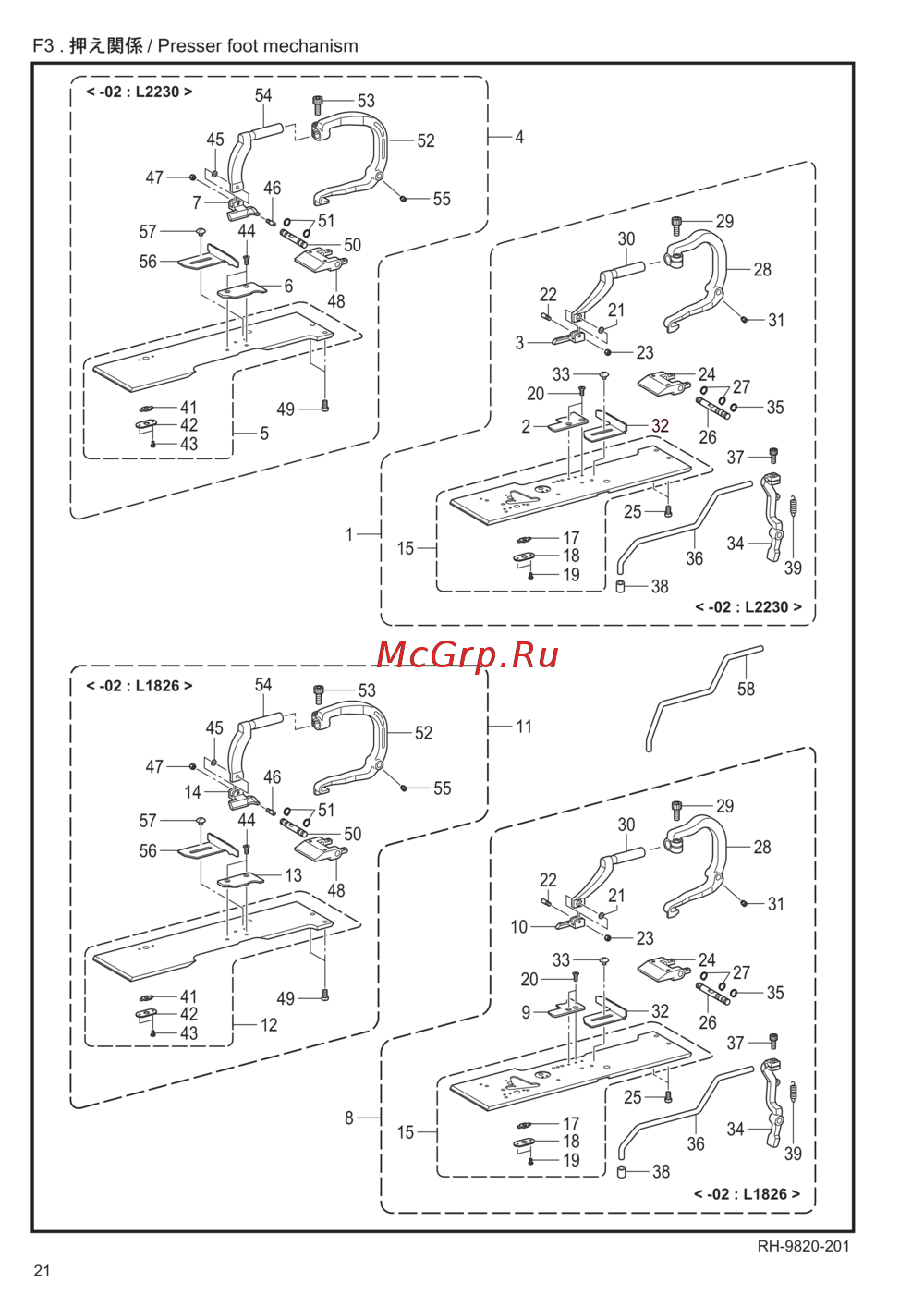

F3. / Presser foot mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -02 : L2230>
1 SA6728001 1
WORK CLAMP PLATE R2230 UNIT
2 SA6731001 1 NEEDLE PLATE L 2230R
3 SA6732001 1 WORK CLAMP R-JL2230
4 SA6738001 1
WORK CLAMP PLATE L2230 UNIT
5 SA6739001 1
WORK CLAMP PLATE JL ASSY
6 SA6741001 1 NEEDLE PLATE L 2230L
7 SA6742001 1 WORK CLAMP L-JL2230
<For -02: L1826>
8 SA7187001 1
WORK CLAMP PLATE R1826 ASSY
9 SA7105001 1 NEEDLE PLATE L1826R
10 SA7095001 1 WORK CLAMP R-JL1826
11 SA7186001 1
WORK CLAMP PLATE L1826 ASSY
12 SA6739001 1
WORK CLAMP PLATE JL ASSY
13 SA7100001 1 NEEDLE PLATE L1826L
14 SA7090001 1 WORK CLAMP L-JL1826
15 SA6729001 1
WORK CLAMP PLATE JR UNIT
17 S35315001 1 OPENING SLIDE BLOCK
18 S35316001 1 SLIDE BLOCK SUPPORT PLATE
19 060020416 2
SCREW BIND M2X4
20 S06696004 2
SCREW, FLAT M3X6
21 S35236000 1
WASHER, BENDING 3.2
22 S35235001 1
SUPPORT PIN, CLAMP
23 021300306 1 NUT 3 M3
24 SA5560001 1
CLAMP SHAFT HOLDER
25 062400816 2 SCREW PAN M4X8
26 SA6733001 1
CLAMP FULCRUM SHAFT J
27 048060142 2
RETAINING RING EXTERNAL C6
28 SA5585001 1
CLAMP LEVER R
29 018501236 1
BOLT SOCKET M5X12
30 SA6734001 1
CLAMP ARM R-J
31 014400532 2
SET SCREW SOCKET (CP) M4X5
32 SA7550001 1
CROTH GUIDE R
33 S35326101 1
SCREW M3.5
34 SA6735001 1
A
UX CLAMP ARM
35 048060142 1
RETAINING RING EXTERNAL C6
36 SA6736001 1
SUB AUX CLAMP WRIST
37 018401036 1
BOLT SOCKET M4X10
38 S05356000 1
BUTTON CLAMP, A
39 SA6737001 1
A
UX CLAMP TSWIST SPRING
41 S35315001 1 OPENING SLIDE BLOCK
42 S35316001 1 SLIDE BLOCK SUPPORT PLATE
43 060020416 2
SCREW BIND M2X4
44 S06696004 2
SCREW, FLAT M3X6
45 S35236000 1
WASHER, BENDING 3.2
46 S35235001 1
SUPPORT PIN, CLAMP
47 021300306 1 NUT 3 M3
48 SA5560001 1
CLAMP SHAFT HOLDER
49 062400816 2 SCREW PAN M4X8
50 SA5674001 1
CLAMP FULCRUM SHAFT
51 048060142 2
RETAINING RING EXTERNAL C6
52 SA5671001 1
CLAMP LEVER L
53 018501236 1
BOLT SOCKET M5X12
54 SA6743001 1
CLAMP ARM L-J
55 014400532 2
SET SCREW SOCKET (CP) M4X5
56 SA7551001 1
CROTH GUIDE L
57 S35326101 1
SCREW M3.5
<Option parts>
58 SA7152001 1
SUPPORT WORK CLAMP ARM L
RH-9820-201
22
21
RH-9820-201
F3 . / Presser foot mechanism
< -02 : L2230 >
