Brother RH-9820-01/02 [28/118] Rh 9820 202
![Brother RH-9820-01/02 [28/118] Rh 9820 202](/views2/1497396/page28/bg1c.png)
23

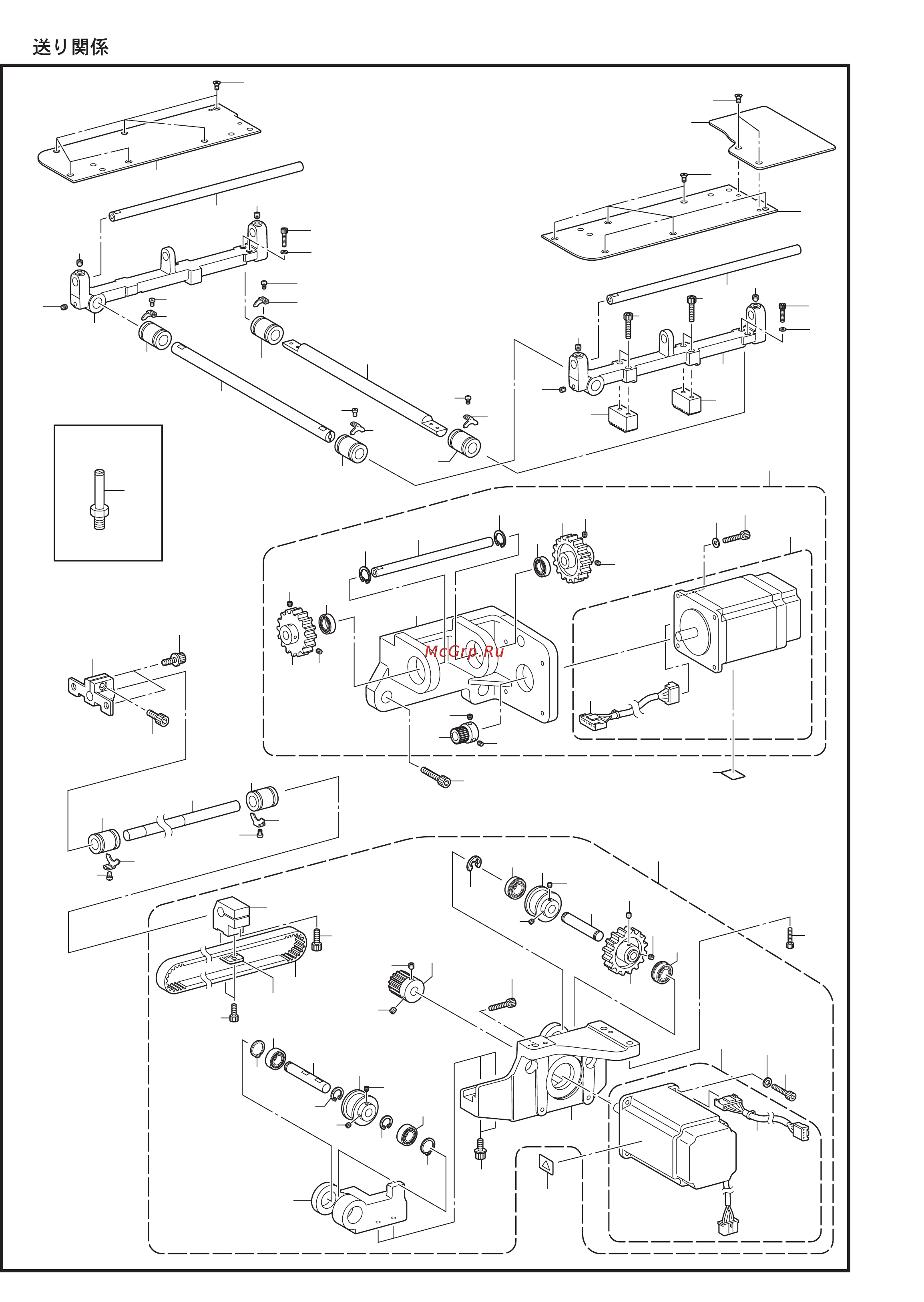

G. / Feed mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6744001 1
FEED BAR COVER L
2 SA6745001 1
FEED BAR COVER R
3 SA6746001 1
FEED BAR COVER U
4 004401003 14 SCREW, FLAT M4X10
5 SA6747001 1
X FEED SHAFT HOLDER S
6 SA6748001 1
X FEED SHAFT HOLDER N
7 SA6749001 2 X RACK
8 018501636 4
BOLT SOCKET M5X16
9 SA6750001 2
Y
FEED GUIDE SHAFT
10 012060636 4 SET SCREW SOCKET (FT) M6X6
11 SA6751001 1
X FEED GUIDE SHAFT A
12 SA6752001 1
X FEED GUIDE SHAFT B
13 012060636 2 SET SCREW SOCKET (FT) M6X6
14 018401636 4
BOLT SOCKET M4X16
15 025040136 4
WASHER PLAIN S 4
16 S35183000 4
LINEAR BUSH, 12
17 SA5562001 4
BALL BEARING STOPPER
18 062300416 4 SCREW PAN M3X4
19 SA6753001 1
Y
FEED ASSY
20 SA6754001 1
Y
FEED BASE
21 SA6521001 1 PULSE MOTOR ASSY Y
22 SA6522001 1 MOTOR HARNESS Y
23 018401436 4
BOLT SOCKET M4X14
24 026040136 4
WASHER PLAIN S 4
25 SA6755001 1
DRIVING GEAR 20
26 012060636 2 SET SCREW SOCKET (FT) M6X6
27 SA6756001 1
Y
PULLEY SUPPORT
28 3A6001001 2
BOLT SOCKET (S/P WASHER) M5X20
29 SA6757001 2
Y
TIMING PULLEY ASSY
30 012060636 4 SET SCREW SOCKET (FT) M6X6
31 048160242 2 RETAINING RING INTERNAL C16
32 SA6760001 1
Y
PULLEY SHAFT R
33 530138001 2
BALL BEARING MICRO 8
34 018502536 1
BOLT SOCKET M5X25
35 048080142 2
RETAINING RING EXTERNAL C8
36 SA6761001 1
Y
PULLEY SHAFT F
37 070688850 2
BALL BEARING RADIAL 688ZZ
38 SA6762001 1
IDLER GEAR 40
39 012060636 2 SET SCREW SOCKET (FT) M6X6
40 SA6763001 1 T BELT 320-5GT
41 SA6764001 1
BELT HOLDER
42 018400836 2
BOLT SOCKET M4X8
43 SA6765001 1
Y
DRIVING SHAFT HOLDER
44 018501636 1
BOLT SOCKET M5X16
45 018061636 3
BOLT SOCKET M6X16
46 SA6766001 1
Y
SHAFT
47 SA6767001 1
Y
SHAFT HOLDER
48 018501436 1
BOLT SOCKET M5X14
49 S12004000 2
LINEAR BUSH
50 SA5562001 2
BALL BEARING STOPPER
51 062300416 2 SCREW PAN M3X4
52 S55476001 2
BOLT SOCKET (S/P WASHER)M6X12
53 SA6768001 1 X FEED ASSY
54 SA6517001 1 PULSE MOTOR ASSY X
55 SA6518001 1 MOTOR HARNESS X
56 SA4197001 1
FEED GEAR
57 012060636 2 SET SCREW SOCKET (FT) M6X6
58 018401436 4
BOLT SOCKET M4X14
59 026040136 4
WASHER PLAIN S 4
60 SA6769001 1 X MOTOR SUPPORT
61 SA6770001 2
IDLER GEAR
62 012060636 4 SET SCREW SOCKET (FT) M6X6
63 SA6771001 2
BALL BEARING 6001ZZ
RH-9820-202
24
23
RH-9820-202
G . / Feed mechanism
< -01 >
35
40
9
4
18
17
69
14
15
18
17
17
62
7
57
66
50
50
44
43
4
13
18
4
10
10
11
62
63
62
55
61
63
64
60
47
52
49
49
46
34
37
29
25
37
39
19
36
39
23
24
21
64
65
62
61
48
59
58
53
54
14
2
8
8
15
13
3
57
56
7
51
30
30
67
26
27
26
51
10
10
45
9
38
68
6
5
12
16
16
16
1
20
67
22
28
31
35
41
33
29
33
32
30
30
31
17
18
16
42
