28

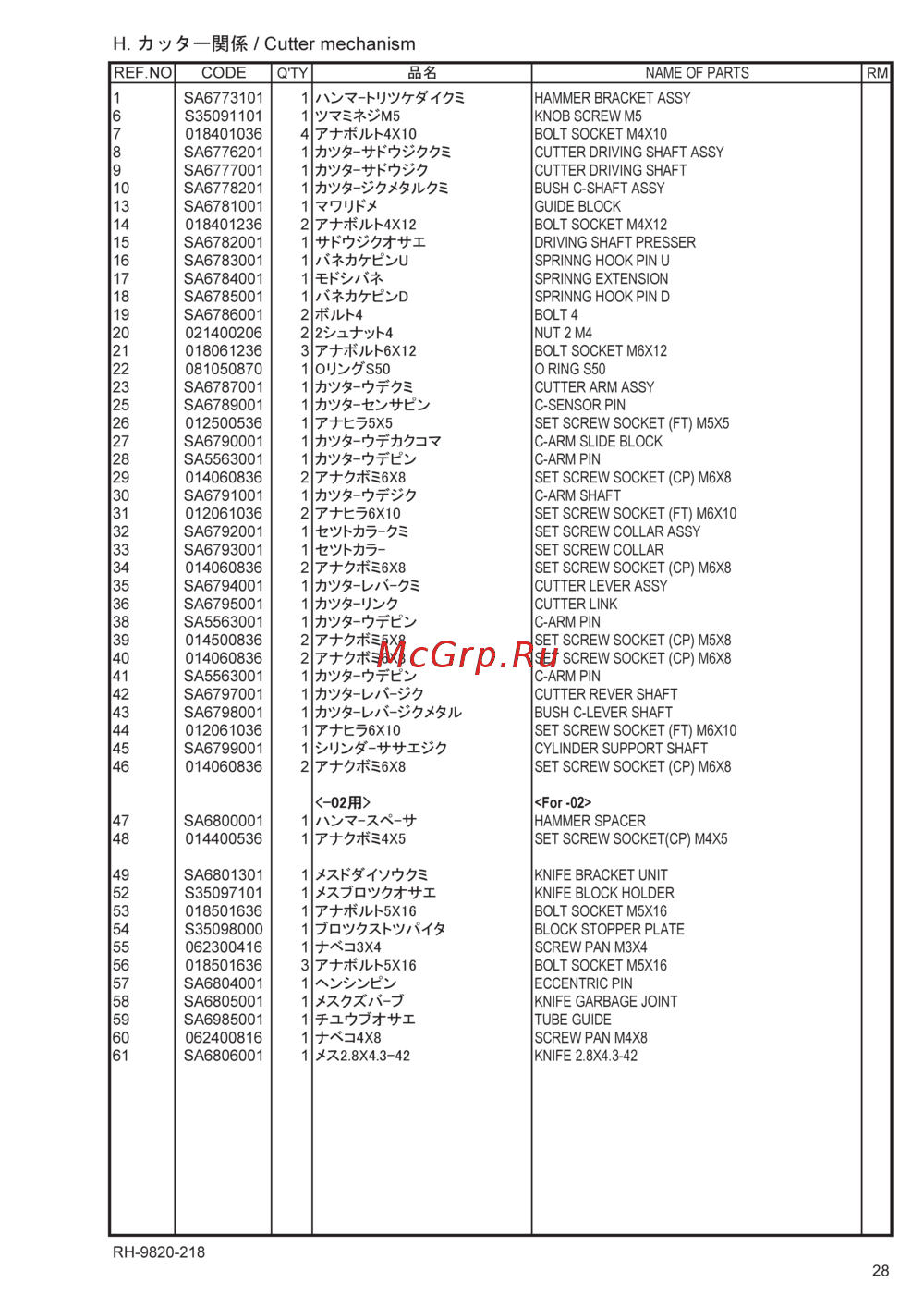

H. / Cutter mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6773101 1
HAMMER BRACKET ASSY
6 S35091101 1
KNOB SCREW M5
7 018401036 4
BOLT SOCKET M4X10
8 SA6776201 1
CUTTER DRIVING SHAFT ASSY
9 SA6777001 1
CUTTER DRIVING SHAFT
10 SA6778201 1
BUSH C-SHAFT ASSY
13 SA6781001 1 GUIDE BLOCK
14 018401236 2
BOLT SOCKET M4X12
15 SA6782001 1
DRIVING SHAFT PRESSER
16 SA6783001 1
SPRINNG HOOK PIN U
17 SA6784001 1
SPRINNG EXTENSION
18 SA6785001 1
SPRINNG HOOK PIN D
19 SA6786001 2
BOLT 4
20 021400206 2 NUT 2 M4
21 018061236 3
BOLT SOCKET M6X12
22 081050870 1
O RING S50
23 SA6787001 1
CUTTER ARM ASSY
25 SA6789001 1
C-SENSOR PIN
26 012500536 1 SET SCREW SOCKET (FT) M5X5
27 SA6790001 1
C-ARM SLIDE BLOCK
28 SA5563001 1
C-ARM PIN
29 014060836 2
SET SCREW SOCKET (CP) M6X8
30 SA6791001 1
C-ARM SHAFT
31 012061036 2 SET SCREW SOCKET (FT) M6X10
32 SA6792001 1 SET SCREW COLLAR ASSY
33 SA6793001 1 SET SCREW COLLAR
34 014060836 2
SET SCREW SOCKET (CP) M6X8
35 SA6794001 1
CUTTER LEVER ASSY
36 SA6795001 1 CUTTER LINK
38 SA5563001 1
C-ARM PIN
39 014500836 2
SET SCREW SOCKET (CP) M5X8
40 014060836 2
SET SCREW SOCKET (CP) M6X8
41 SA5563001 1
C-ARM PIN
42 SA6797001 1
CUTTER REVER SHAFT
43 SA6798001 1
BUSH C-LEVER SHAFT
44 012061036 1 SET SCREW SOCKET (FT) M6X10
45 SA6799001 1
CYLINDER SUPPORT SHAFT
46 014060836 2
SET SCREW SOCKET (CP) M6X8
<For -02>
47 SA6800001 1 HAMMER SPACER
48 014400536 1
SET SCREW SOCKET(CP) M4X5
49 SA6801301 1
KNIFE BRACKET UNIT
52 S35097101 1
KNIFE BLOCK HOLDER
53 018501636 1
BOLT SOCKET M5X16
54 S35098000 1
BLOCK STOPPER PLATE
55 062300416 1 SCREW PAN M3X4
56 018501636 3
BOLT SOCKET M5X16
57 SA6804001 1
ECCENTRIC PIN
58 SA6805001 1
KNIFE GARBAGE JOINT
59 SA6985001 1
TUBE GUIDE
60 062400816 1 SCREW PAN M4X8
61 SA6806001 1 KNIFE 2.8X4.3-42
RH-9820-218
