33

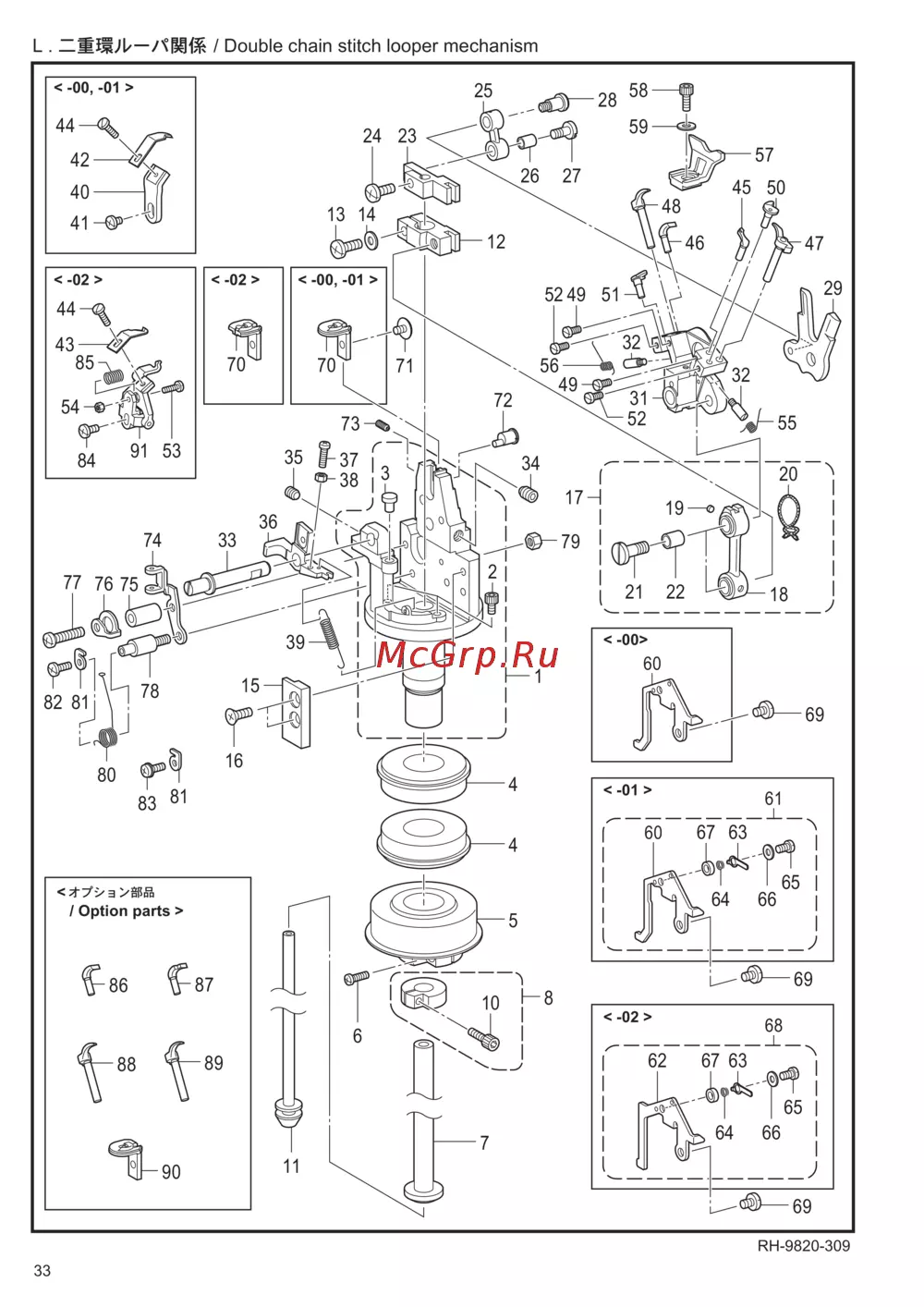

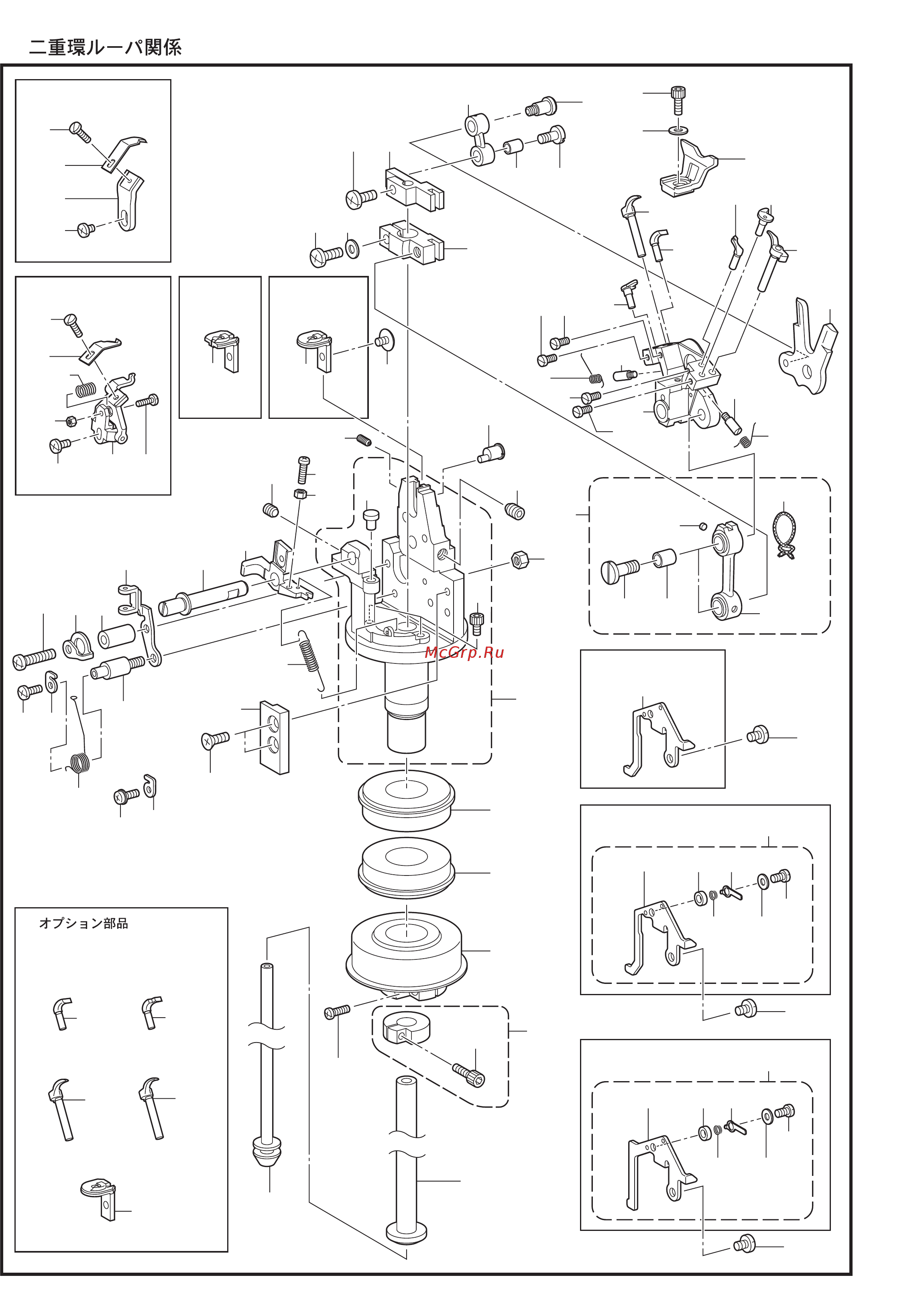

L. / Double chain stitch looper mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6841001 1
LOOPER BASE ASSY
2 018400636 2
BOLT SOCKET M4X6
3 SA6844001 1
INPUT PIN 4
4 SA5571001 2
BALL BEARING 6004ZZNR
5 SA6845001 1
LOOPER PULLEY ASSY
6 062351615 1 SCREW PAN M3.5X16
7 SA6848001 1
LOOPER DRIVING SHAFT
8 SA6849001 1
LOOPER DRIVING SHAFT ASSY
10 018301436 1
BOLT SOCKET M3X14
11 SA6851001 1
SPREADER LINK SHAFT
12 SA6852001 1 LOOPER LINK CLAMP
13 060401416 1
SCREW BIND M4X14
14 026040136 1
WASHER PLAIN S 4
15 SA6853001 1 LS SLIDE GUIDE
16 004401003 2 SCREW, FLAT M4X10
17 SA7204001 1 LOOPER LINK UNIT
18 SA6854001 1 LOOPER LINK ASSY
19 S52832000 1 FELT
20 SA6857001 1 WICK 2X2
21 SA6858001 2
LOOPER LINK FASTENING SCREW
22 SA6811001 2 LOOPER LINK COLLER
23 SA6859001 1
SPREADER LINK BASE
24 060401016 1
SCREW BIND M4X10
25 SA6860001 1
SPREADER CAM LINK
26 S35018001 1 CAM LINK COLLOR
27 S35014001 1
SHOULDER SCREW, M4
28 S35019001 1
SHOULDER SCREW, M4
29 SA6861001 1
SPREADER DRIVING CAM
31 SA6863001 1
LS HOLDER BASE
32 SA6864001 2
SPRING GUIDE SCREW
33 SA6865001 1
HOLDER PRESSER SHAFT
34 014060836 1
SET SCREW SOCKET (CP) M6X8
35 012500536 1 SET SCREW SOCKET (FT) M5X5
36 SA6866001 1
THREAD TRIMMER LEVER BRACKET
37 062301016 1 SCREW PAN M3X10
38 021300306 1 NUT 3 M3
39 SA6867001 1
U THREAD TRIMMER SPRING
<For -00 & -01>
40 SA7064001 1
UPPER MOVABLE KNIFE
41 060300416 1
SCREW BIND M3X4
42 S35029001 1 UPPER MOVABLE KNIFE, A
<For -02>
43 S37723101 1 UPPER MOVABLE KNIFE, B
44 105288001 1
SCREW SM2.38
45 S35410001 1 LOOPER, R
46 SA7547101 1 EYE LOOPER
47 S35412101 1
SPREADER, R
48 S35413101 1
SPREADER, L
49 S35032101 2
SCREW, M2.6X5.5
50 S35034001 1
SPREADER STOPPER, R
51 S35033001 1
SPREADER STOPPER, L
52 S35032101 2
SCREW, M2.6X5.5
<For -02>
53 S37724001 1
SCREW, SM2.38
54 S47932001 1 NUT, SM2.38-56
RH-9820-309
34
33
RH-9820-309
L . / Double chain stitch looper mechanism
< -00, -01 >
< -02 > < -02 >
< -01 >
< -00>
< -02 >
< -00, -01 >
<
/ Option parts >
4
4
1
38
28
37
79
46
48
47
57
55
12
18
5
8
69
69
7
636762
10
39
15
58
41
40
42
49
73
56
31
19
17
51
43
85
44
59
6
11
16
83
81
5391
84
26 27
70
71
70
80
82 81
78
21 22
64 66
65
63
75
74 33
35
3
72
34
2
32
49
32
50
45
29
52
36
76
23
25
24
1413
77
20
67
64 66
65
60
61
68
86
87
88
89
90
44
69
60
54
52
