43
P1. / Threading mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
2 SA6944001 1 TOP COVER
3 SA6945001 1 PACKING TOP COVER
5 SA6947101 1
CYLINDER JOINT A
6 SA6948101 1
CYLINDER SETTING PLATE A
7 SA6949001 1
CYLINDER ASSY 10-30
8 S11426000 2
ELBOW UNION 4M5
9 SA6950001 1
A
IR TUBE 4X2.5-11
10 SA7134001 1
A
IR TUBE 4X2.5-12
11 062500816 2 SCREW PAN M5X8
12 SA6951001 1
T-TAKE-UP LEVER DRIVING PLATE
13 SA6952001 1
THREAD TAKE-UP LEVER PLATE
14 060400516 1
SCREW BIND M4X5
15 SA6953001 1
THREAD TAKE-UP LEVER BASE
16 SA6954001 1 COLLAR
A
17 SA7494001 1
WASHER
18 018401036 1
BOLT SOCKET M4X10
19 021400206 1 NUT 2 M4
20 062500816 2 SCREW PAN M5X8
21 SA6955001 1 COLLAR B
22 SA7494001 1
WASHER
23 018401036 1
BOLT SOCKET M4X10
24 SA6956101 1
IMPACT SUPPORT PLATE
25 SA6957001 1
IMPACT SUPPORT SHAFT
26 048060142 1
RETAINING RING EXTERNAL C6
27 025060236 1
WASHER PLAIN M 6
28 SA6958001 1
SPRING COMPRESSION A
29 S05356000 1
BUTTON CLAMP, A
30 062500816 2 SCREW PAN M5X8
31 SA6959001 1 UPPER THREAD GUIDE A
32 062500816 1 SCREW PAN M5X8
33 SA6960101 1 THREAD GUIDE ROD A
34 SA6961001 1 TENSION U ASSY
35 SA6962001 1
TENSION STUD U
36 145446001 2 DISC, TENSION
37 159805001 1 TENSION DISC PRESSER
38 144103009 1 TENSION DISC PRESSER
39 159221101 1
TENSION SPRING
40 S20682102 1 TENSION NUT
41 S20681000 1
WASHER
42 152873001 1
TENSION RELEASE PIN
43 012500536 1 SET SCREW SOCKET (FT) M5X5
45 SA3345001 1 SETTING PLATE,SOLENOID
46 154599000 1 SOLENOID CUSHION
47 017401415 1
BOLT M4X14
48 021400306 1 NUT 3 M4
49 102707002 1
WASHER
50 SA6538001 1 U-TENSION RELEASE SOLENOID
51 017400802 2
BOLT M4X8
52 028040246 2
WASHER SPRING 2-4
53 025040236 2
WASHER PLAIN M 4
54 062500816 2 SCREW PAN M5X8
55 S20698221 1
TENSION STUD
56 144504001 2 THREAD GUIDE DISC
57 154562101 1
PRE-TENSION SPRING B
58 155510001 1 TENSION NUT
59 SA6963001 2 SEWING THREAD RETAINER GUIDE
60 062500816 4 SCREW PAN M5X8
61 SA5568001 1
THREAD SPOOL PIN
62 021500216 1 NUT 1 M5
63 149547000 3 CORD HOLDER, 4N
64 0A4400806 3
SCREW PAN (S/P WASHER) M4X8
65 S00480000 1
CORD HOLDER, 5N
66 0A4400806 1
SCREW PAN (S/P WASHER) M4X8
RH-9820-401
44
43
RH-9820-401

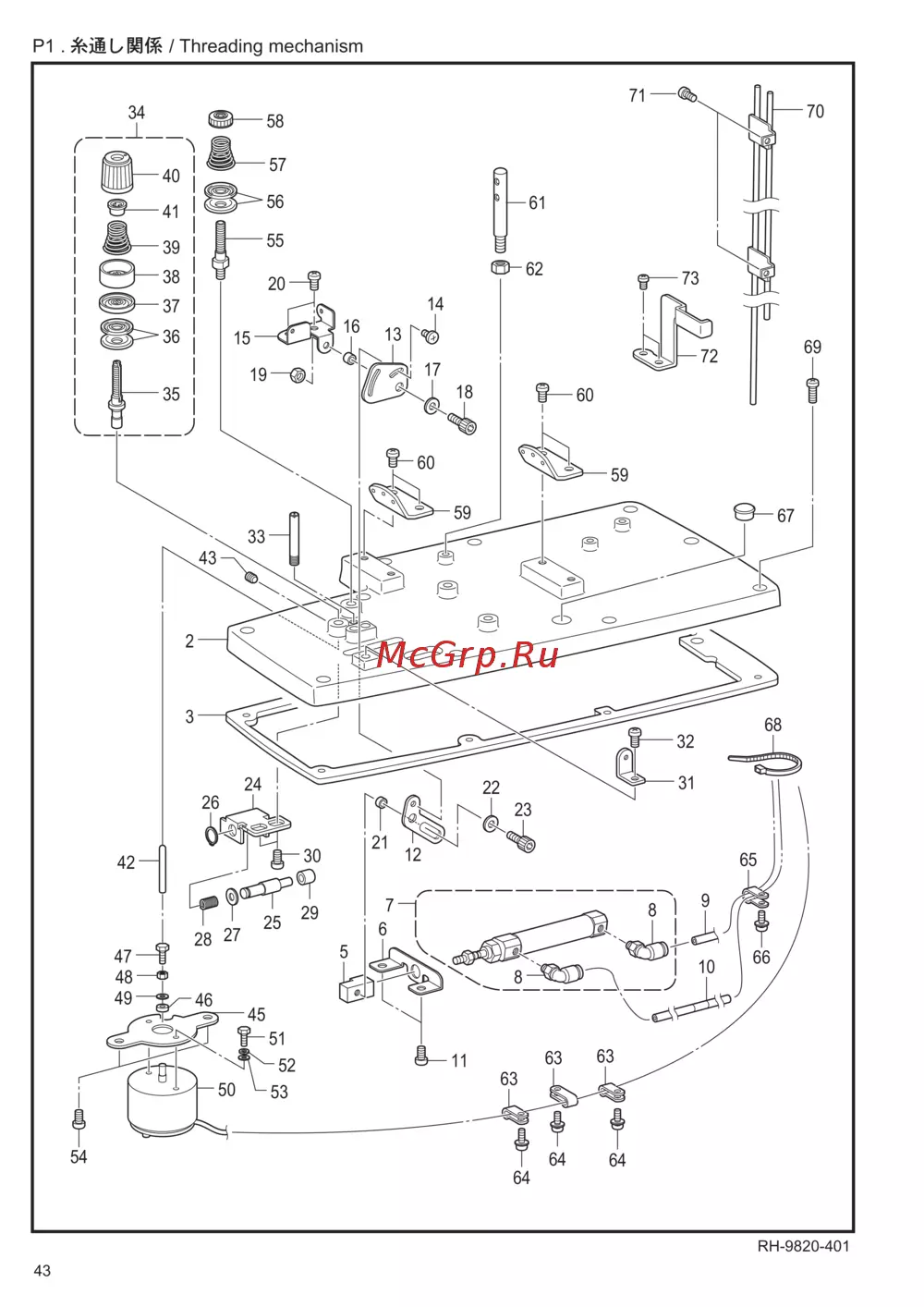

P1 . / Threading mechanism
70
67
31
32
59
60
59
62
60
73
72
71
18
17
14
63
63
63
65
9
8
10
68
69
29
25
64
64
64
66
27
28
54
2
3
11
30
35
55
58
57
37
38
39
41
40
36
56
21
12
15
50
51
45
46
52
53
47
42
7
8
48
49
19
33
43
20
16
13
26
24
5
6
34
61
23
22
