48

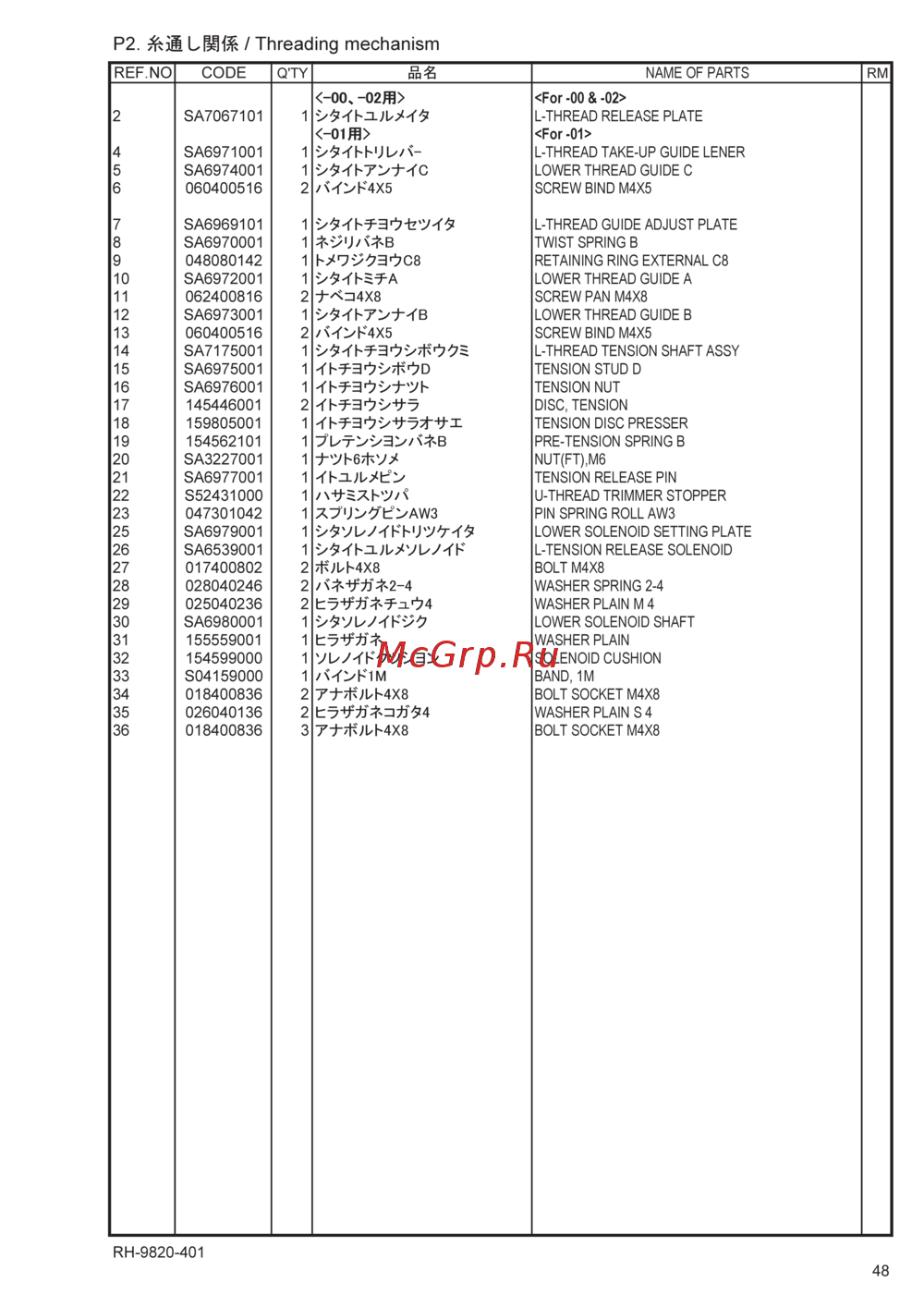

P2. / Threading mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -00 & -02>
2 SA7067101 1 L-THREAD RELEASE PLATE
<For -01>
4 SA6971001 1
L-THREAD TAKE-UP GUIDE LENER
5 SA6974001 1 LOWER THREAD GUIDE C
6 060400516 2
SCREW BIND M4X5
7 SA6969101 1 L-THREAD GUIDE ADJUST PLATE
8 SA6970001 1
TWIST SPRING B
9 048080142 1
RETAINING RING EXTERNAL C8
10 SA6972001 1 LOWER THREAD GUIDE A
11 062400816 2 SCREW PAN M4X8
12 SA6973001 1 LOWER THREAD GUIDE B
13 060400516 2
SCREW BIND M4X5
14 SA7175001 1
L-THREAD TENSION SHAFT ASSY
15 SA6975001 1
TENSION STUD D
16 SA6976001 1 TENSION NUT
17 145446001 2 DISC, TENSION
18 159805001 1 TENSION DISC PRESSER
19 154562101 1
PRE-TENSION SPRING B
20 SA3227001 1 NUT(FT),M6
21 SA6977001 1
TENSION RELEASE PIN
22 S52431000 1 U-THREAD TRIMMER STOPPER
23 047301042 1
PIN SPRING ROLL AW3
25 SA6979001 1 LOWER SOLENOID SETTING PLATE
26 SA6539001 1 L-TENSION RELEASE SOLENOID
27 017400802 2
BOLT M4X8
28 028040246 2
WASHER SPRING 2-4
29 025040236 2
WASHER PLAIN M 4
30 SA6980001 1
LOWER SOLENOID SHAFT
31 155559001 1
WASHER PLAIN
32 154599000 1 SOLENOID CUSHION
33 S04159000 1
BAND, 1M
34 018400836 2
BOLT SOCKET M4X8
35 026040136 2
WASHER PLAIN S 4
36 018400836 3
BOLT SOCKET M4X8
RH-9820-401
48
