50

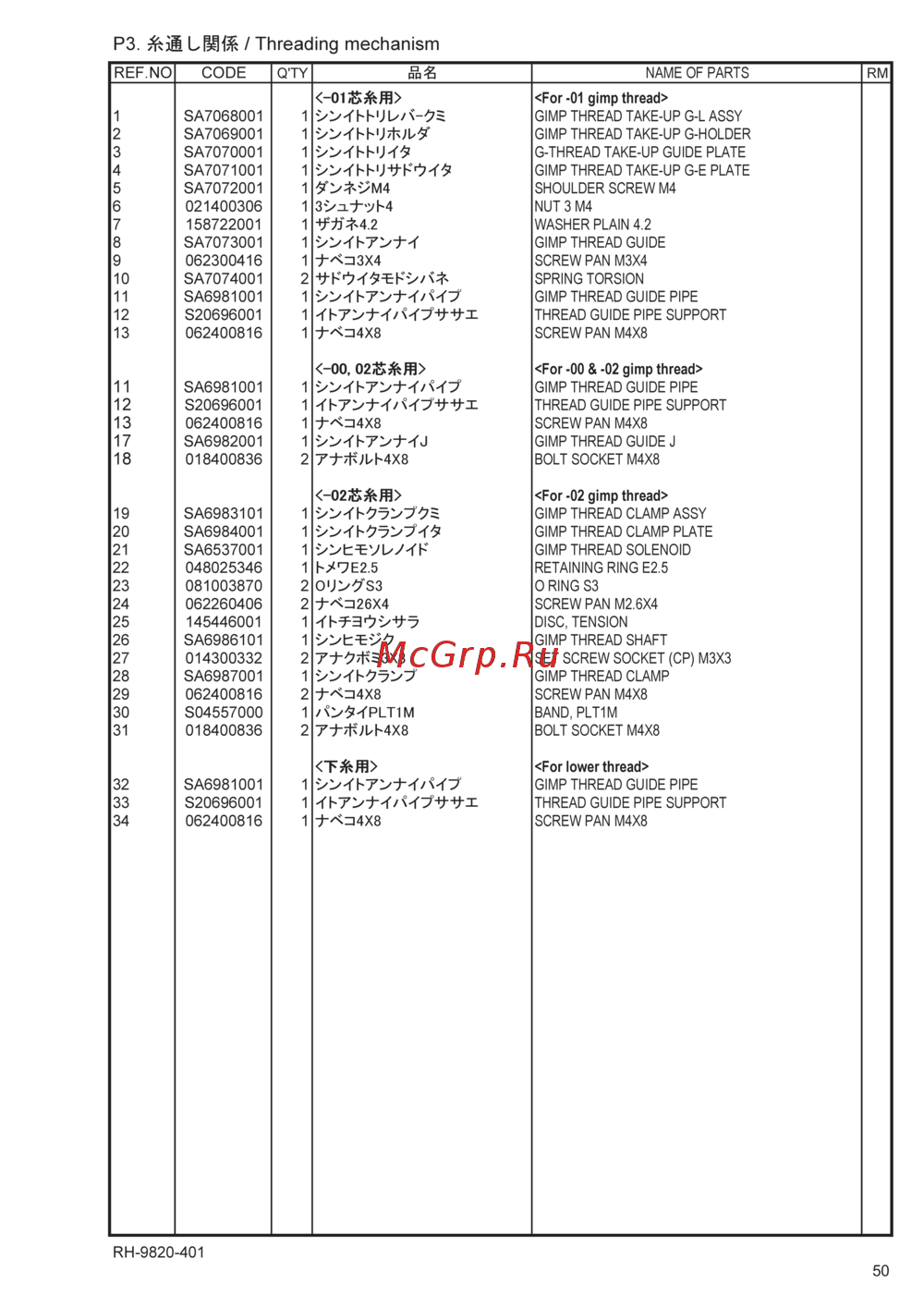

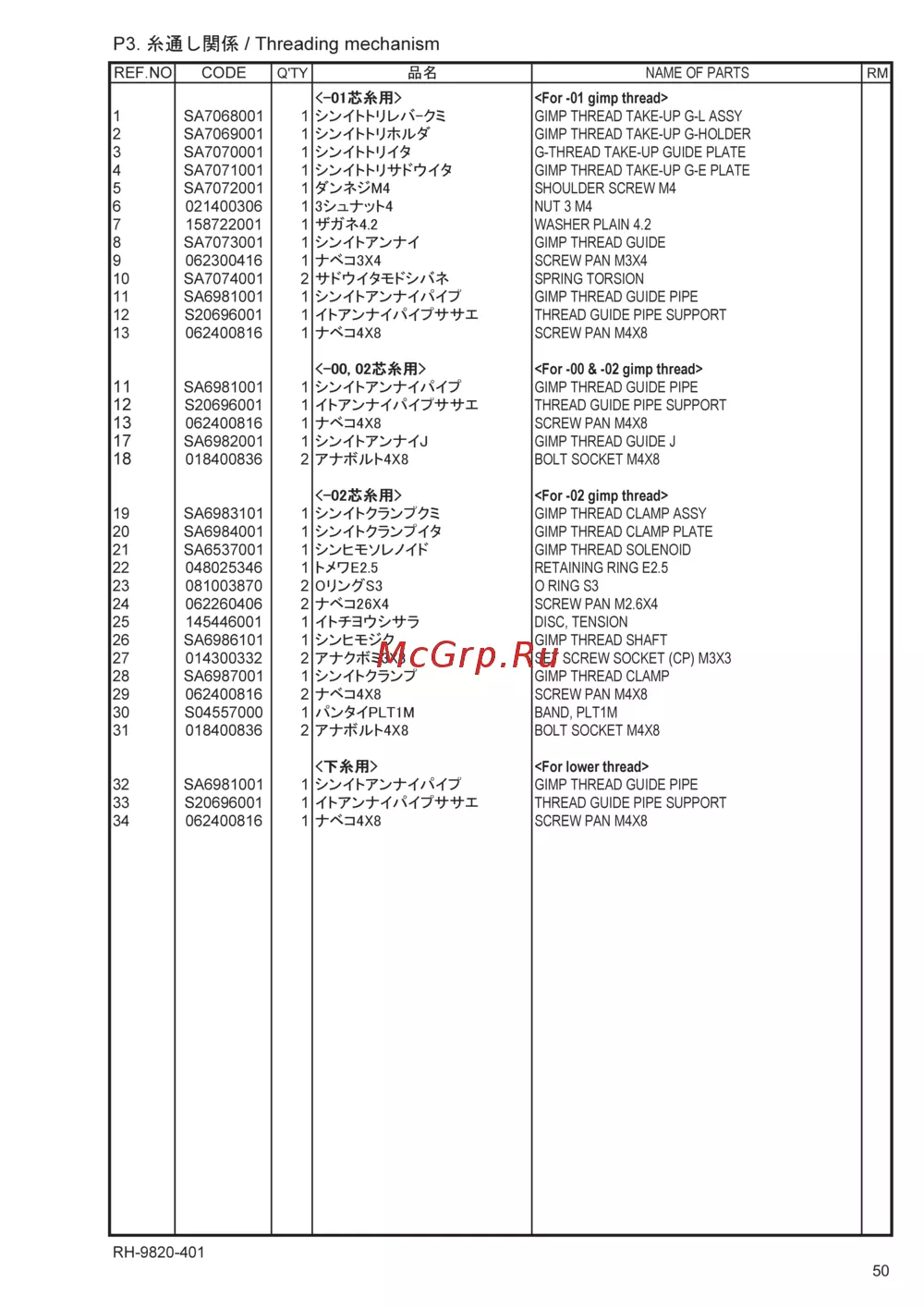

P3. / Threading mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -01 gimp thread>
1 SA7068001 1
GIMP THREAD TAKE-UP G-L ASSY
2 SA7069001 1
GIMP THREAD TAKE-UP G-HOLDER
3 SA7070001 1 G-THREAD TAKE-UP GUIDE PLATE
4 SA7071001 1 GIMP THREAD TAKE-UP G-E PLATE
5 SA7072001 1
SHOULDER SCREW M4
6 021400306 1 NUT 3 M4
7 158722001 1
WASHER PLAIN 4.2
8 SA7073001 1 GIMP THREAD GUIDE
9 062300416 1 SCREW PAN M3X4
10 SA7074001 2
SPRING TORSION
11 SA6981001 1
GIMP THREAD GUIDE PIPE
12 S20696001 1
THREAD GUIDE PIPE SUPPORT
13 062400816 1 SCREW PAN M4X8
<For -00 & -02 gimp thread>
11 SA6981001 1
GIMP THREAD GUIDE PIPE
12 S20696001 1
THREAD GUIDE PIPE SUPPORT
13 062400816 1 SCREW PAN M4X8
17 SA6982001 1 GIMP THREAD GUIDE J
18 018400836 2
BOLT SOCKET M4X8
<For -02 gimp thread>
19 SA6983101 1
GIMP THREAD CLAMP ASSY
20 SA6984001 1
GIMP THREAD CLAMP PLATE
21 SA6537001 1 GIMP THREAD SOLENOID
22 048025346 1 RETAINING RING E2.5
23 081003870 2
O RING S3
24 062260406 2 SCREW PAN M2.6X4
25 145446001 1 DISC, TENSION
26 SA6986101 1
GIMP THREAD SHAFT
27 014300332 2
SET SCREW SOCKET (CP) M3X3
28 SA6987001 1
GIMP THREAD CLAMP
29 062400816 2 SCREW PAN M4X8
30 S04557000 1 BAND, PLT1M
31 018400836 2
BOLT SOCKET M4X8
<For lower thread>
32 SA6981001 1
GIMP THREAD GUIDE PIPE
33 S20696001 1
THREAD GUIDE PIPE SUPPORT
34 062400816 1 SCREW PAN M4X8
RH-9820-401
50
