51

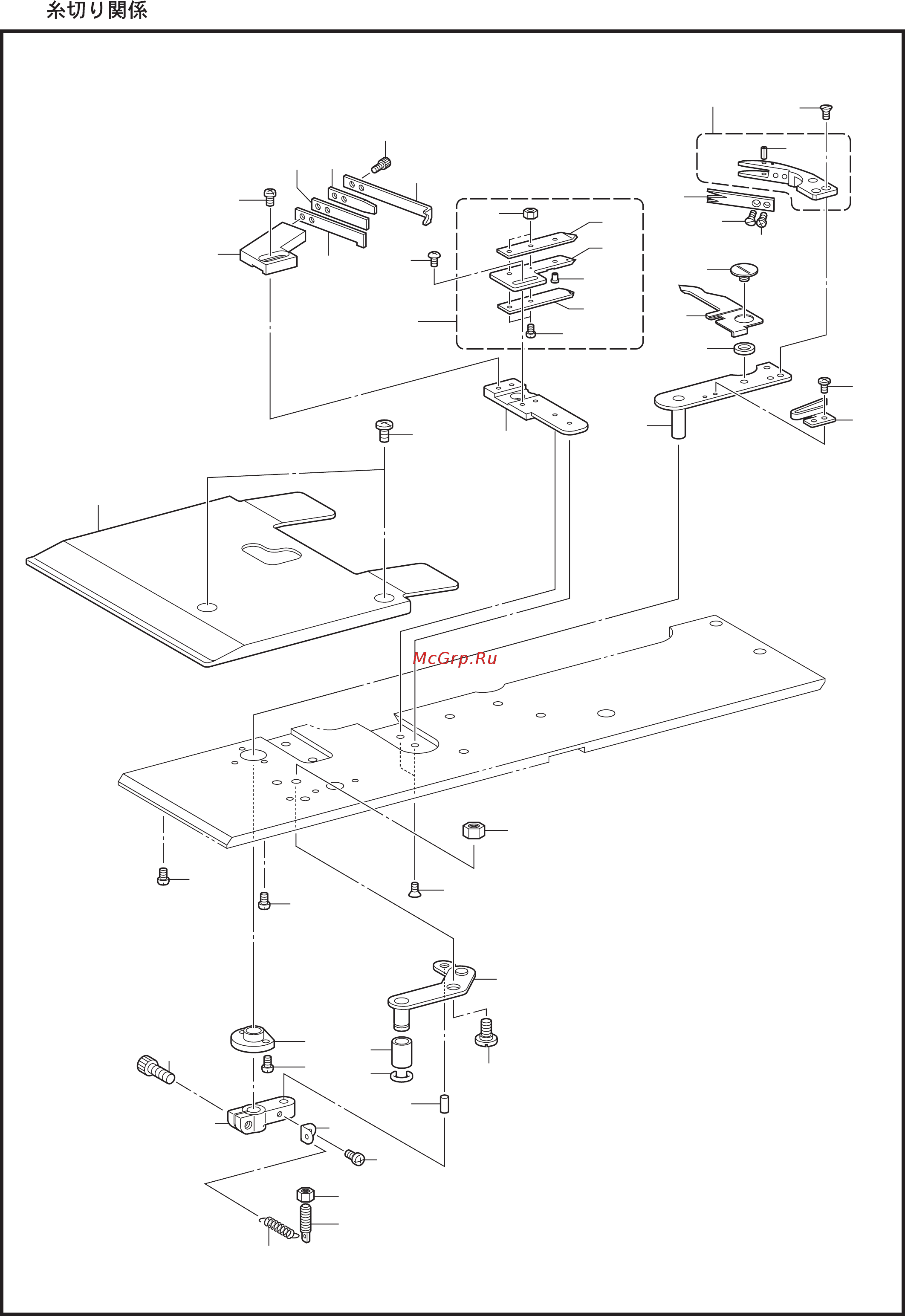

Q1. / Thread trimmer mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -01>
1 SA7526001 1
THREAD TRIMMER LINK LEVER ASSY
2 SA7778001 1
LINK LEVER ROLLER
3 137191051 1 STOP RING
4 SA5693001 1
SHOULDER SCREW M4
5 S34906100 1
BUSH TR TRIMMER ARM
6 062260516 2 SCREW PAN M2.6X5
7 S34905101 1
THREAD CUTTER LEVER ARM
8 018401036 1
BOLT SOCKET M4X10
9 S37858000 1
NEEDLE PIN, 4X8
10 S34903001 1
SPRING HOOK
11 S34883001 1
SPRING, EXTENSION
12 S34902001 1
SPRING HOOK
13 021350106 1 NUT 1 M3.5
14 062260406 1 SCREW PAN M2.6X4
15 S34901001 1
THREAD TRIMMER ARM
16 S34900001 1
OPENER, ;T-NIPPER
17 153219001 1 COLLAR, ;MOVABLE KNIFE
18 S34899001 1 MOVABLE KNIFE ASSY
19 S34898001 1
PIN, SPRING 1.4
20 141542001 3
SCREW 3.18
21 SA7076001 1
THREAD HANDLER
22 S01694001 1
SCREW, FLAT SM2.38X4
23 S34896001 1
BRACKET, ;FIXED KNIFE
24 061300416 2 SCREW FLAT M3X4
25 S34895001 1 FIXED KNIFE
26 018260832 2
BOLT, SOCKET M2.6X8
27 S34894001 1 THREAD GUIDE PLATE
28 S34893001 1
SETTING BRACKET FIXED KNIFE
29 062300512 2 SCREW PAN M3X5
30 S34889101 1 THREAD NIPPER ASSY
31 S34890001 1 THREAD NIPPER, U
32 S34891101 1 THREAD NIPPER, D
33 S34888101 1 THREAD NIPPER, M
34 S34892001 1
OPENER PIN
35 062020416 2 SCREW PAN M2X4
36 021020106 2 NUT 1 M2
37 542515001 2
SCREW M2.6X3.5
38 S34887001 1
SPRING, PLATE ;F-KNIFE
39 S34886001 1
SPRING, U PLATE ;F-KNIFE
40 SA7077001 1
PRESSER PLATE U
41 060400516 2
SCREW BIND M4X5
42 152904001 1
SCREW, SM4.37
43 104336003 1
SCREW, SM2.38
44 S34884000 1
OPENER SPRING
45 060630312 2
SCREW BIND SM2.38-56X3
46 021400306 1 NUT 3 M4
47 062300416 2 SCREW PAN M3X4
RH-9820-403
52
51
RH-9820-403
Q1 . / Thread trimmer mechanism
< -01 >
8
9
31
33
34
32
35
13
12
37
30
29
28
26
39
27
38
25
11
36
40
45
44
19
15
42
16
17
22
21
20
18
23
43
10
14
5
6
1
46
3
2
47
47
7
4
41
24
