53
Q2. / Thread trimmer mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -02>
1 SA6988001 1 MOVABLE KNIFE R
2 SA6989001 1 MOVABLE KNIFE L
3 SA6990001 1
THREAD HANDLER
4 SA6991001 1 MOVABLE KNIFE DRIVING PLATE
5 SA6992001 1 THREAD TRIMMER LINK A ASSY
6 SA6994001 1 THREAD TRIMMER LINK B ASSY
7 S37660101 1
SHOULDER SCREW, M4
8 021400202 1 NUT 2 M4
9 S37654000 1
WAVE WASHER
10 S37655101 1
KNIFE SUPPORT WASHER
11 141542001 2
SCREW 3.18
12 SA6996001 1
THREAD TRIMMER L-LEVER J ASSY
13 SA7778001 1
LINK LEVER ROLLER
14 137191051 1 STOP RING
15 SA5693001 1
SHOULDER SCREW M4
16 021400306 1 NUT 3 M4
17 SA6998001 1
SPRING HOOK
18 SA6999001 1
THREAD TRIMMER SPRING
19 S34902001 1
SPRING HOOK
20 021350106 1 NUT 1 M3.5
21 062260406 1 SCREW PAN M2.6X4
22 062300416 2 SCREW PAN M3X4
23 SA7001001 1
BUSH TR TRIMMER ARM
24 062260516 2 SCREW PAN M2.6X5
25 SA7002001 1
THREAD TRIMMER LEVER ARM B
26 S21716001 1
SCREW, BUTTON HEAD M4X10
27 S37858000 1
NEEDLE PIN, 4X8
28 SA7003001 1
WORK CLAMP PLATE JU
29 060400516 2
SCREW BIND M4X5
30 153787001 2
SCREW, SM2.38
RH-9820-403
54
53

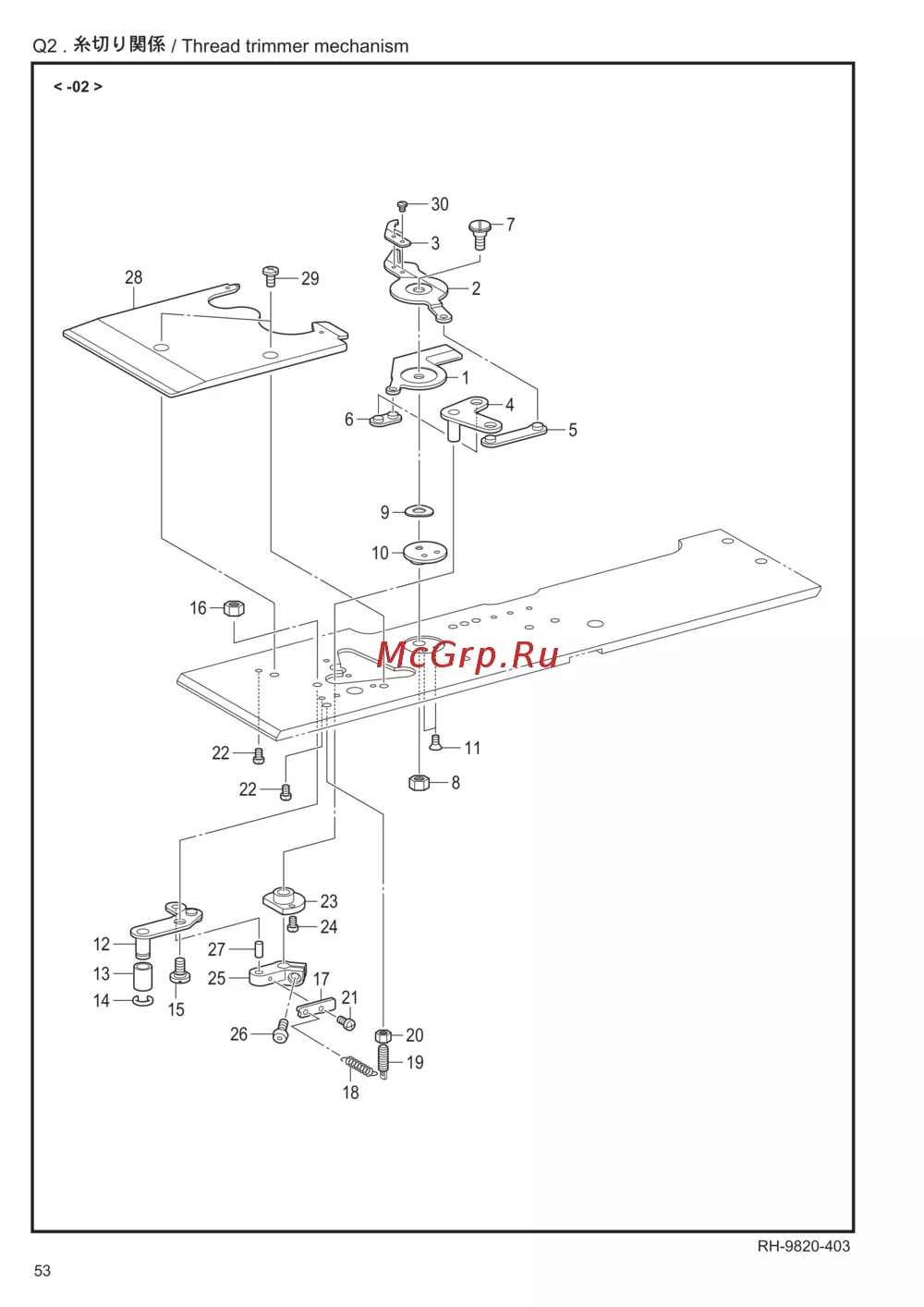

RH-9820-403
Q2 . / Thread trimmer mechanism
< -02 >
29
25
27
26
6
12
22
22
16
14
13
10
9
28
20
19
2
5
11
8
7
4
1
24
23
30
3
21
17
18
15
