Brother RH-9820-01/02 [60/118] Rh 9820 409
![Brother RH-9820-01/02 [60/118] Rh 9820 409](/views2/1497396/page60/bg3c.png)
55

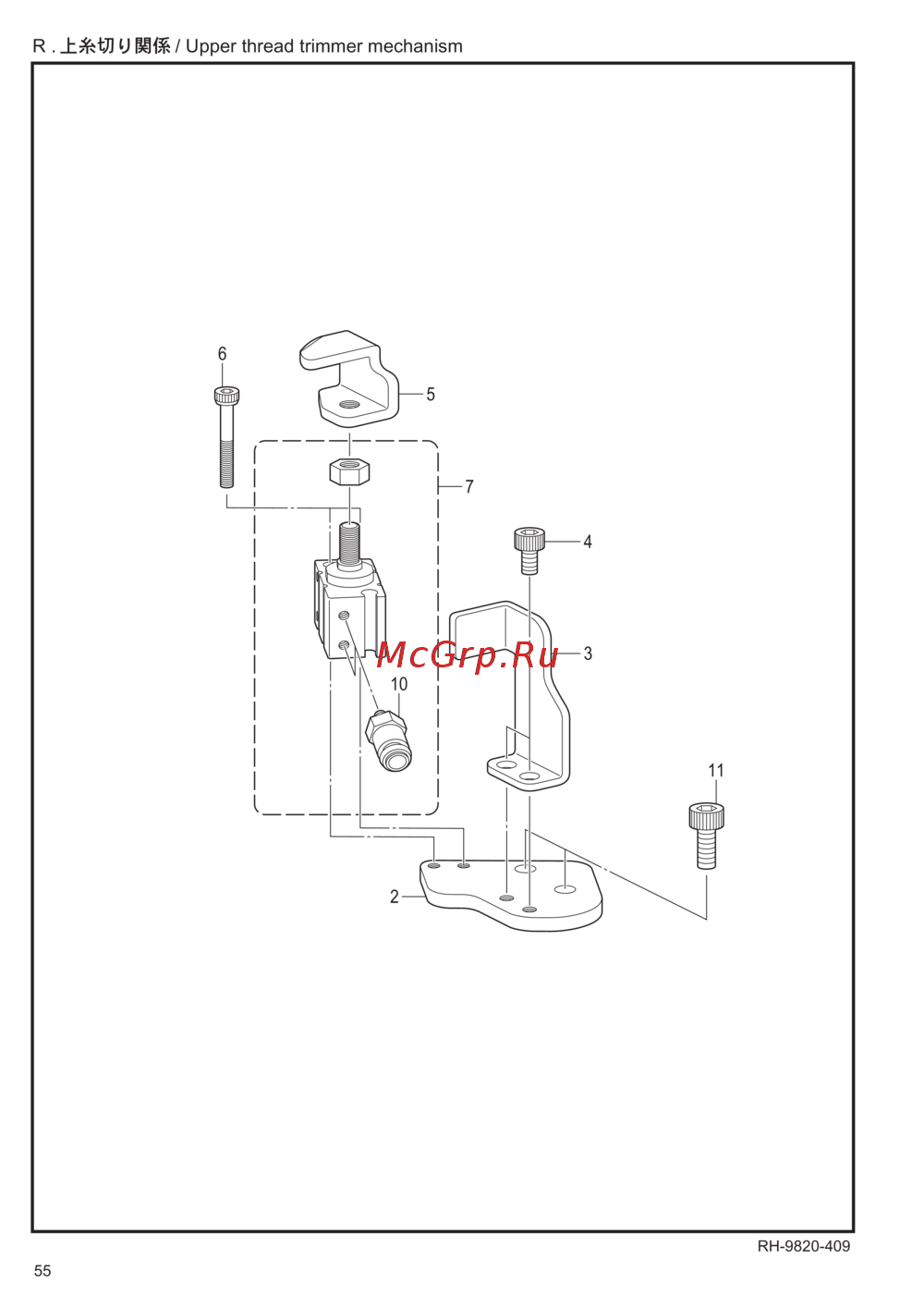

R. / Upper thread trimmer mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
2 SA7005001 1
CYLINDER SETTING PLATE
3 SA7006001 1
HAMMER GUIDE PLATE
4 018400636 2
BOLT SOCKET M4X6
5 SA7007001 1 HAMMER
6 S12053000 2
BOLT, CQ2 M3X25
7 SA7008001 1
CYLINDER ASSY
10 SA7011001 2
JOINT KJH04-M3
11 018501236 2
BOLT SOCKET M5X12
RH-9820-409
56
55
RH-9820-409

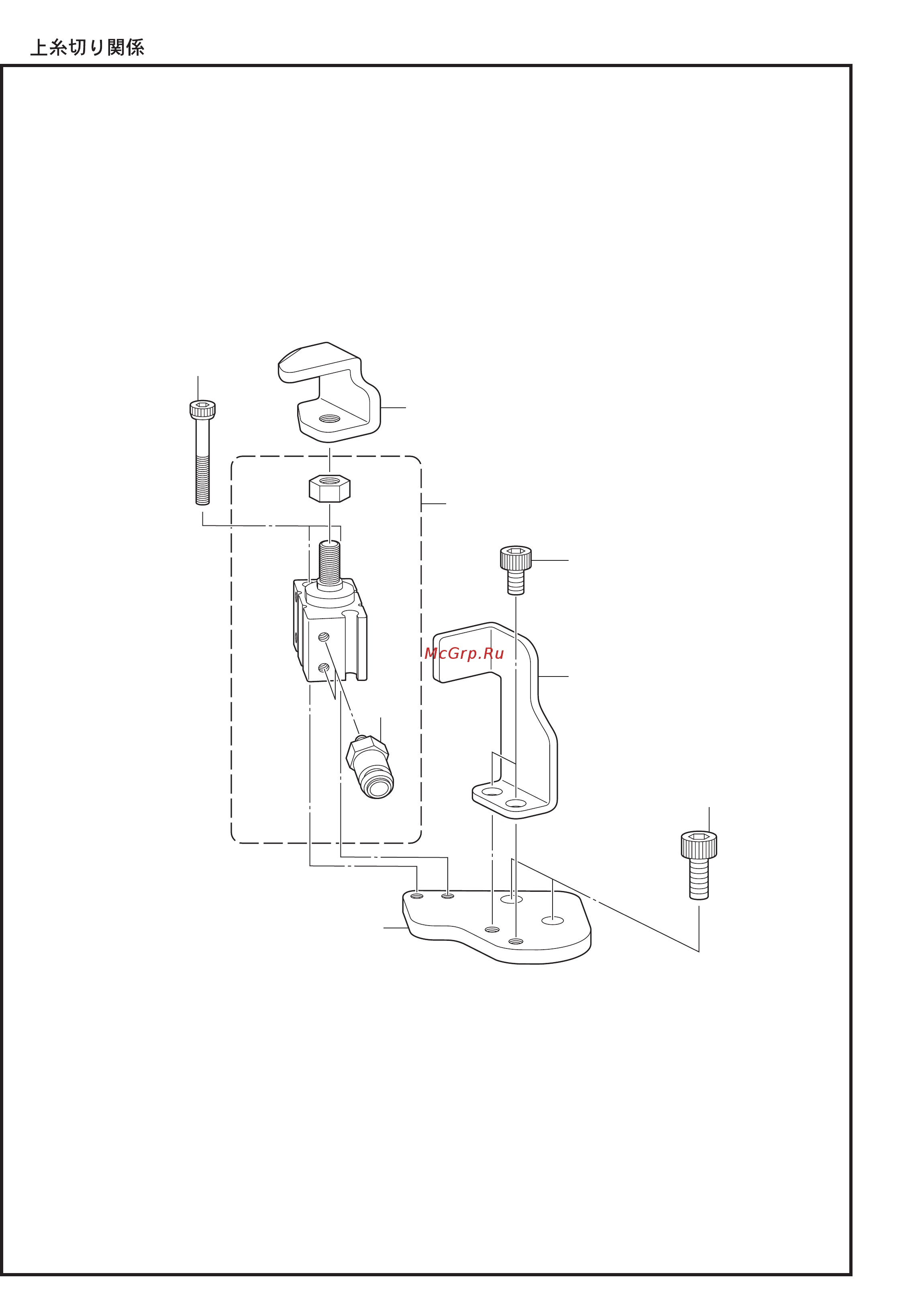

R . / Upper thread trimmer mechanism
7
3
5
4
2
10
6
11
